Troubleshooting Multi-Zone Systems: Incorrect Zone Cooling Behavior

In multi-zone systems, some users may experience a situation where one zone is cooling when it shouldn’t be, while another zone remains inactive when it should be operating. This behavior is often the result of a wiring mismatch between the outdoor condenser unit and the refrigerant lines connected to the indoor air handlers.

Here’s how to properly troubleshoot and fix this issue to ensure each zone operates as intended.

Understanding the Outdoor Unit Setup

Multi-zone systems like MRCOOL® allow different indoor air handlers (zones) to be connected to a single outdoor condenser. The outdoor unit typically has several ports labeled with letters (A, B, C, D, E) for the refrigerant lines, starting from the bottom port labeled A.

In addition to the refrigerant piping, communication wiring is also required between the outdoor unit and each indoor air handler to ensure the correct signals are sent for each zone. These wires must be correctly matched to the refrigerant line ports for the system to function properly.

Common Cause of Improper Cooling

The most common cause of incorrect zone operation (cooling when it shouldn’t or vice versa) is that the communication wiring at the condenser does not match the corresponding refrigerant line connection. For example:

• If you have placed the refrigerant line for Zone A in the port labeled "A" (bottom port), the communication wiring from the air handler of Zone A should be connected to the corresponding terminals (1A, 2A, 3A) at the condenser.
• However, if you mistakenly connect the refrigerant line to port A but wire the communication cables to terminals 1B, 2B, and 3B, the system will experience miscommunication, leading to improper operation of the zones.


Steps to Correct the Issue

If you suspect wiring is the issue, follow these steps to verify and fix the setup:

1. Check the Refrigerant Line Connections:

   • Start by inspecting the refrigerant lines at the outdoor unit. Ensure that each line is correctly connected to its corresponding port (A, B, C, etc.).

2. Match the Communication Wiring:

   • The communication wires that run with the refrigerant line from each air handler should be matched to the corresponding terminals (e.g., if the refrigerant line is on port A, the wires must go to 1A, 2A, and 3A).

3. Inspect the Outdoor Control Board:

   • If you find it difficult to trace the wiring, you can inspect the outdoor unit control board. To do this, carefully remove the top of the outdoor unit.
   • Underneath, you’ll see a black box that houses the control board. Open the black box to reveal the board and its LED display.

4. Reset the System:

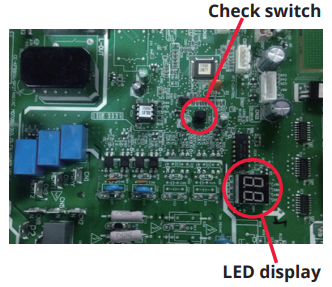

   • Near the LED display, there is a small black button. Press and hold this button until the display shows "CE". This action resets the control board’s communication settings.
   • After the reset, put everything back in place and allow the system to sit for 20 minutes before making any changes on the remote.


Conclusion

When installing or troubleshooting a MRCOOL® multi-zone system, it’s crucial to ensure the refrigerant lines and communication wiring are correctly matched at the outdoor condenser unit. Miswiring can cause zones to behave incorrectly, such as cooling when they shouldn’t. By following the steps above and verifying both the refrigerant piping and wiring connections, you can quickly resolve this issue and restore proper operation to your system.
