GeoCool 55,600/62,000K Multi Compressor - 230v

Sandra
Updated

GCSHPM060IN

NON DIY - HVAC TECH INSTALL ONLY



Description

Prepare to enjoy impressive performance and exceptional energy efficiency with the MRCOOL® Geocool® Geothermal Split System Compressor. With an all-DC inverter system and a high-precision electronic expansion valve, you can expect a much quieter, more stable, and energy-saving experience with more accurate temperature control than standard heating and cooling systems.

The open loop water-to-air system boasts superb energy efficiency of up to 70 EER, significantly lowering utility costs. Installation is easy with the compatible MRCOOL® Geocool® No-Vac® Line Set. The system features multiple flexible installation options, including vertical, horizontal, and split configurations, making it an excellent solution if your home has space constraints or requires modification to a different air outlet method.

The compressor features multiple protections against potential damage, along with a reliable and durable build and finish. The co-axial copper-nickel heat exchanger makes the system suitable for salt solutions and lower water quality, improving corrosion resistance and unit reliability.

With a cooling noise level as low as 58 dBA and a heating noise level as low as 60 dBA, you’ll enjoy superior comfort without any distractions. For peace of mind, the MRCOOL® Geocool® Geothermal Split System Compressor offers a 10-year parts warranty and a 5-year limited labor warranty.

Find the Brochure Here

─────────────────────────────────────────────────────────────

Key Specs

  • Capacity:
    • 55,600 BTU (Cooling)
    • 62,000 BTU (Heating)

  • 5 Ton

  • Type: Multi-Positional Air Handler / Blower Module

  • Compressor: DC Inverter Compressor

  • Airflow: Up to 1300 CFM

  • Energy Efficiency: Up to 70 EER (with compatible modules)

  • Voltage: 230V, 1-Phase, 60Hz

  • Sound Level: 58 dBA (Cooling), 60 dBA (Heating)

  • Installation Flexibility: Vertical, Horizontal, and Split-System Compatible

  • Build: Durable gray finish, high-quality construction

  • Warranty: 10-Year Parts / 5-Year Limited Labor

─────────────────────────────────────────────────────────────

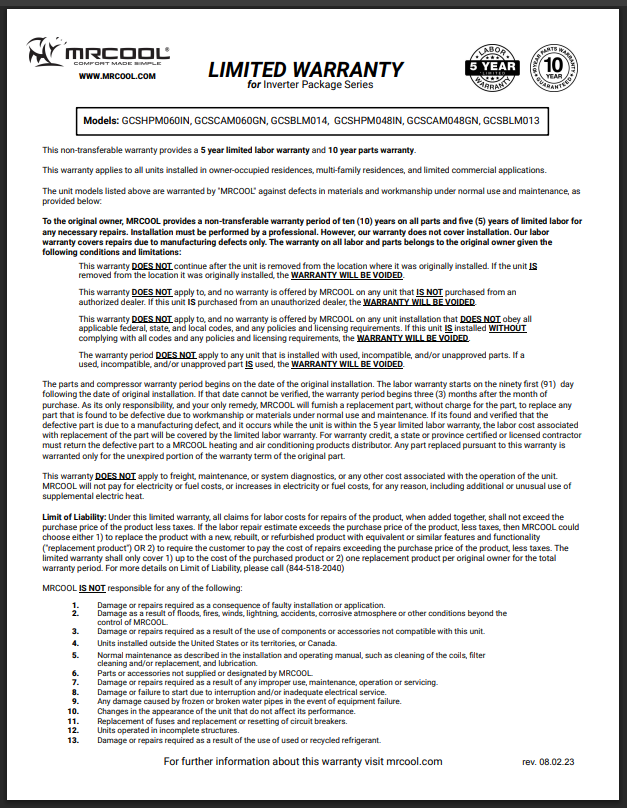

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed Professional

─────────────────────────────────────────────────────────────
