⚠️ Important: Always remove the front panel before beginning stepper motor disassembly.
Step-by-Step: Replacing the Stepper Motor in a Ceiling Cassette

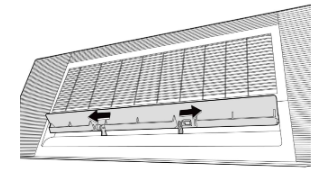

1. Open the Louver
Gently open the louver. Locate the side hooks on both the left and right—push them outward to release the cover.

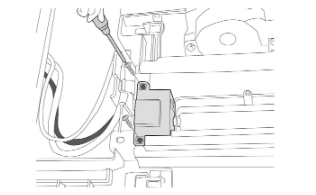

2. Remove the Motor Cover
Unscrew the two screws securing the motor cover. Lift and remove the cover to reveal the stepper motor.
3. Remove the Stepper Motor
Unscrew the two screws holding the stepper motor in place. Carefully take out the motor.
4. Install the New Stepper Motor
Position the new stepper motor, secure it with the screws, and reassemble all parts in reverse order.
