MULTI5-36HP230C-O
NON DIY - Licensed HVAC Installation
Description
The MRCOOL® Olympus 36,000 BTU multi-zone heat pump condenser is a high-capacity heat pump condenser built to power up to five indoor units simultaneously.
Designed for homeowners who want efficient and individualized temperature control across multiple rooms, this ductless system delivers tailored comfort to every zone—making it an excellent fit for modern, multi-room living spaces.
Featuring cutting-edge inverter technology, the system provides exceptional energy performance, with SEER2 ratings up to 24 and HSPF2-4 up to 9.5.
It operates reliably even in extreme outdoor conditions, functioning in temperatures as low as 5°F to keep your home comfortable year-round.
Compatibility with a variety of MRCOOL indoor units—including wall-mounted, ceiling cassette, and concealed duct options—means it’s easy to customize the setup to suit your home’s layout and aesthetic.
Smart control options enhance everyday convenience, offering seamless operation through the MRCOOL SmartHVAC app, included remote control, or voice commands via Amazon Alexa and Google Assistant.
Additional features like sleep mode, auto restart, and built-in refrigerant leak detection further improve safety, energy efficiency, and peace of mind.
Backed by a 7 year compressor warranty and a 5 year parts warranty (when installed by a professional), the MRCOOL® Olympus MULTI5-36HP230C-O is a reliable, energy-efficient choice for those looking to achieve flexible, zone-specific heating and cooling throughout their home.
Find the Brochure HERE
─────────────────────────────────────────────────────────────
Key Specs
WORKS WITH:
O-09-HP-WMAH-230C-O, DUCT-09HP-230B-O, CASSETTE09HP-230C-O,
O-12-HP-WMAH-230C-O, DUCT-12HP-230B-O, CASSETTE12HP-230C-O,
O-18-HP-WMAH-230C-O, DUCT-18HP-230B-O, CASSETTE18HP-230C-O,
O-24-HP-WMAH-230C-O, DUCT-24HP-230B-O, CASSETTE24HP-230C-OSEER2: Up to 24
EER2: Up to 12
HSPF2-4: 9.5
HSPF2-5: 7
TONNAGE: 3
COOLING CAPACITY (BTU): 36000
HEATING CAPACITY (BTU): 37000
VOLTAGE (V): 230
MAX FUSE BREAKER (A): 35
MIN CIRCUIT AMPACITY (A): 30.5
COLOR: White
MAX COVERAGE AREA: Up to 1500 sq ft
ZONE CAPACITY: 5
REFRIGERANT TYPE: R-454B
DECIBEL RATING (DBA): 64.5
INVERTER: DC
LINESET FITTING TYPE: Flare
LIQUID LINE SIZE: 5 × 1/4
SUCTION LINE SIZE: 4 × 3/8 + 1 × 1/2
COMPRESSOR MOTOR TYPE: Rotary
CONDENSER FAN MOTOR RPM: 900/750/600
METERING DEVICE: EXV
BASE WARRANTY: 5-Year Parts / 7-Year Compressor
BASE PARTS WARRANTY: 5-Year
BASE COMPRESSOR WARRANTY: 7-Year
BASE REMOTE WARRANTY: 5-Year
NET DEPTH (IN): 16.14
NET HEIGHT (IN): 31.89
NET WIDTH (IN): 37.24
NET WEIGHT (LBS): 168.87
GROSS DEPTH (IN): 19.68
GROSS HEIGHT (IN): 34.84
GROSS WIDTH (IN): 42.91
GROSS WEIGHT (LBS): 180.12
─────────────────────────────────────────────────────────────
Compatibility
Olympus 9k 4th Gen Hyper Heat Air Handler - 230v
Olympus 9k 4th Gen Ducted Mini Split Air Handler - 230v
Olympus 9k 4th Gen Ductless Ceiling Cassette - 230v
Olympus 12k 4th Gen Hyper Heat Air Handler - 230v
Olympus 12k 4th Gen Ducted Mini Split Air Handler - 230v
Olympus 12k 4th Gen Ductless Ceiling Cassette - 230v
Olympus 18k 4th Gen Hyper Heat Air Handler - 230v
Olympus 18k 4th Gen Ducted Mini Split Air Handler - 230v
Olympus 18k 4th Gen Ductless Ceiling Cassette - 230v
Olympus 24k 4th Gen Hyper Heat Air Handler - 230v
Olympus 24k 4th Gen Ducted Mini Split Air Handler - 230v
Olympus 24k 4th Gen Ductless Ceiling Cassette - 230v
MMCFOA Care Kit - Foaming Cleanser Only
MB440 - MRCOOL Condenser Wall Mounting Kit 24k to 36k BTU
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

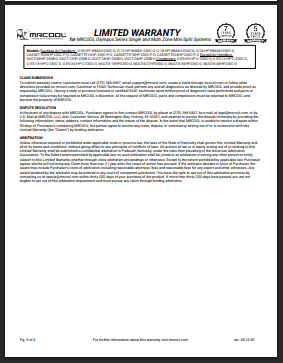

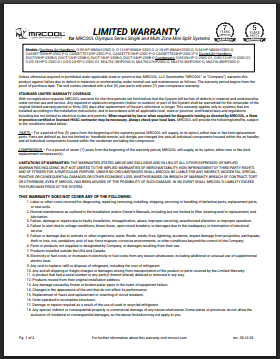

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
Quick Links
- Warranty Registration
- Warranty
- Rebate Center
- Install & Owners Manual
- Service Manual
- Document de garantie en français
- AHRI
- Energy Guide Cert
─────────────────────────────────────────────────────────────
