Olympus 9k 4th Gen Ductless Ceiling Cassette - 230v

Sandra
Updated

CASSETTE09HP-230C-O

NON DIY - Licensed HVAC Installation

Description

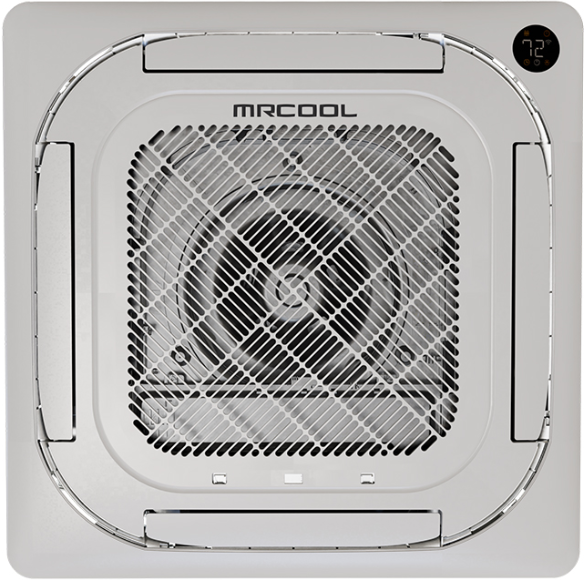

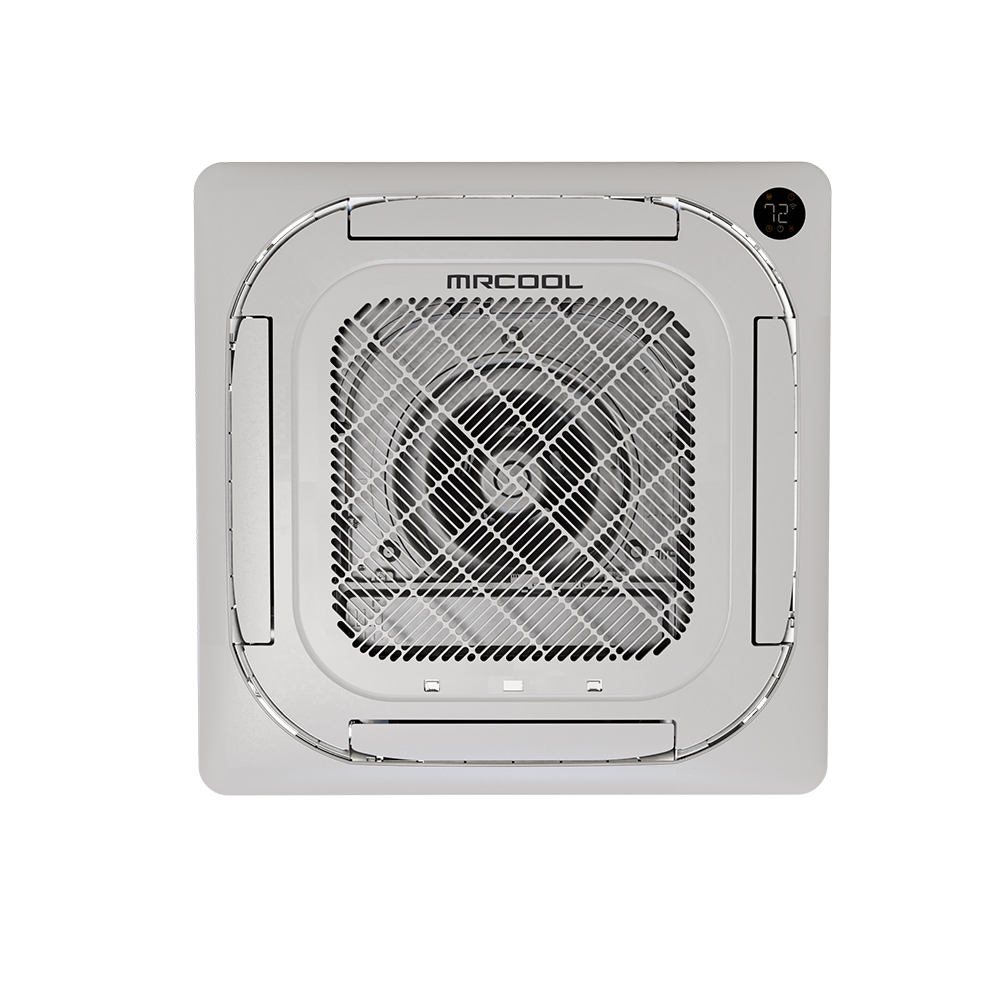

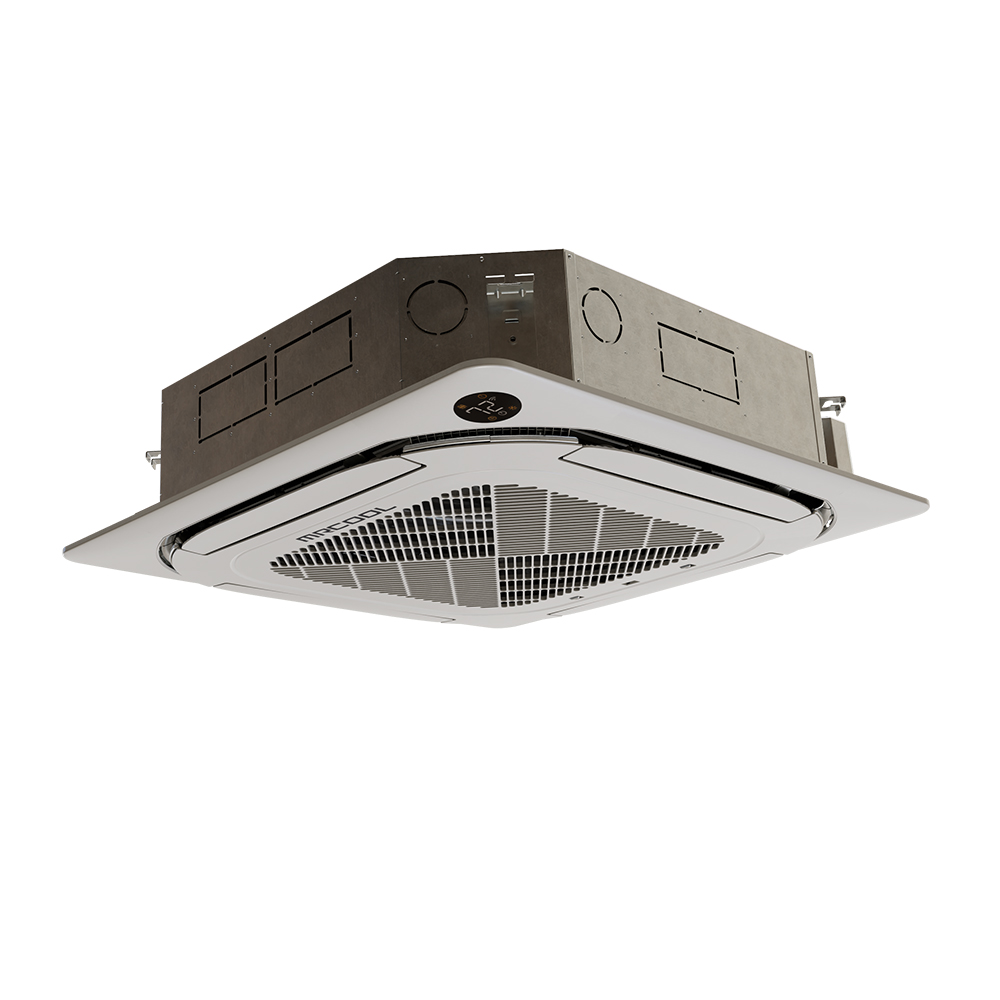

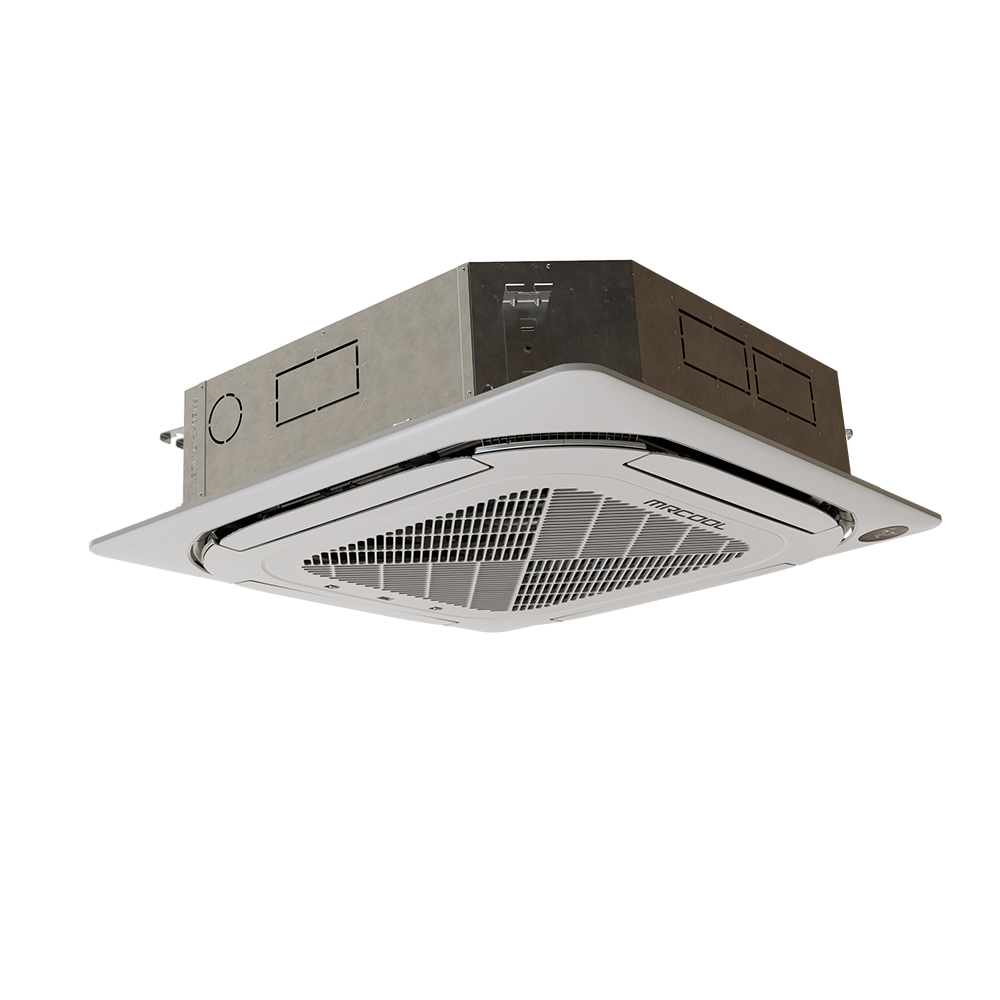

The MRCOOL® OLYMPUS 9K CASSETTE provides dependable heating and cooling for spaces up to 400 square feet, making it perfect for bedrooms, home offices, and smaller areas. Designed to fit seamlessly into the ceiling for a flush look, it almost disappears, creating a clean, modern aesthetic that complements any room style. Its versatile design is perfect for homes or businesses looking to maximize space while maintaining an elegant, high-performance climate solution.

The indoor fan operates at a quiet 42 dB, ensuring a peaceful environment without compromising performance. This ultra-low noise level means you can enjoy consistent, efficient heating or cooling without disruptive fan sounds, ideal for spaces where silence is crucial, like bedrooms, offices, or nurseries. The quiet operation helps enhance the overall comfort of your space, providing a relaxing atmosphere free from distractions.

The unit uses R-454B refrigerant, an eco-friendly solution that provides top-tier performance while being environmentally responsible. With low global warming potential, R-454B helps reduce the environmental impact of your system, contributing to a greener, more sustainable home, without sacrificing performance or efficiency. This refrigerant is an important choice for homeowners seeking to lower their carbon footprint while still enjoying reliable performance.

The MRCOOL® OLYMPUS 9K CASSETTE comes with a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, ensuring reliability, cutting-edge technology, and peace of mind. This unit is the ideal solution for homeowners who value efficiency, comfort, and modern design.



Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs Here

  • Works with – O-ES-09-HP-C-230C-O1, MULTI3-18HP230C-O, MULTI4-27HP230C-O, MULTI5-36HP230C-O, MULTI6-48HP230C-O

  • Tonnage – 0.75

  • Voltage – 230 V

  • Max Fuse Breaker – 15 A

  • Min Circuit Ampacity – 3 A

  • Mount Type – Ceiling

  • Color – White

  • Max Coverage Area – Up to 400 sq ft

  • Refrigerant Type – R-454B

  • Decibel Rating – 42.5/40/37.5/26/24 dB

  • Decibel Rating Low – 24 dB

  • Decibel Rating High – 42.5 dB

  • Air Flow Direction – Downflow

  • Number of Speeds – 5 (Variable)

  • Oscillation – Yes

  • Lineset Fitting Type – Flare

  • Liquid Line Size – 1/4 in

  • Suction Line Size – 3/8 in

  • Blower Motor Speeds – 353.2/312/264.9/182.5/147.2

  • Blower Motor RPM – 600/530/380

  • Fan Only Option – Yes

  • Sleep Mode – Yes

  • Auto Cool – Yes

  • WiFi Compatibility – No

  • Remote Control Included – Yes

  • UL Listed – Yes

  • CSA Listed – Yes

  • ETL Listed – Yes

  • Base Warranty – 5-Year Parts

  • Base Parts Warranty – 5-Year

  • Base Remote Warranty – 5-Year

  • Net Depth – 22.44 in

  • Net Height – 9.65 in

  • Net Width – 22.44 in

  • Net Weight – 35.27 lbs

  • Gross Weight – 41.89 lbs

─────────────────────────────────────────────────────────────

Compatibility

Olympus 9k 4th Gen E-Star Condenser - 230v

Olympus 18k 4th Gen Multi Zone 3 Condenser - 230v

Olympus 27k 4th Gen Multi Zone 4 Condenser - 230v

Olympus 36k 4th Gen Multi Zone 5 Condenser - 230v

Olympus 48k 4th Gen Multi Zone 6 Condenser - 230v

Mini Split Line Sets 1/4"-3/8"

Line Guards

MRCOOL Mini-Stats

MMCK01 Care Kit

MMCFOA Care Kit - Foaming Cleanser Only

Condenser Wall Mount Kits



Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

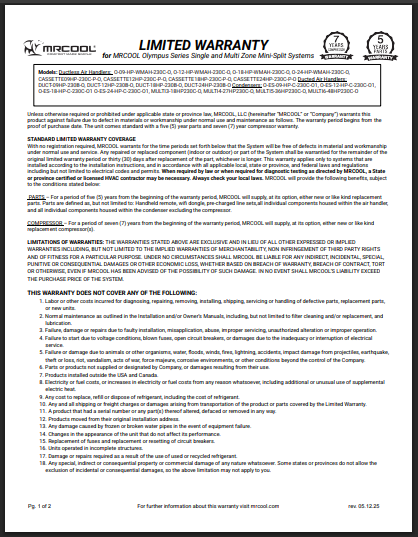

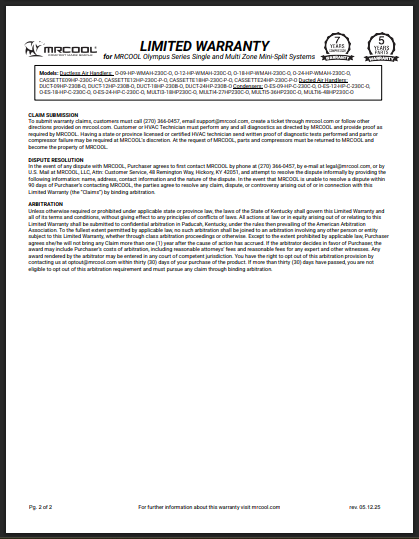

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.





─────────────────────────────────────────────────────────────
