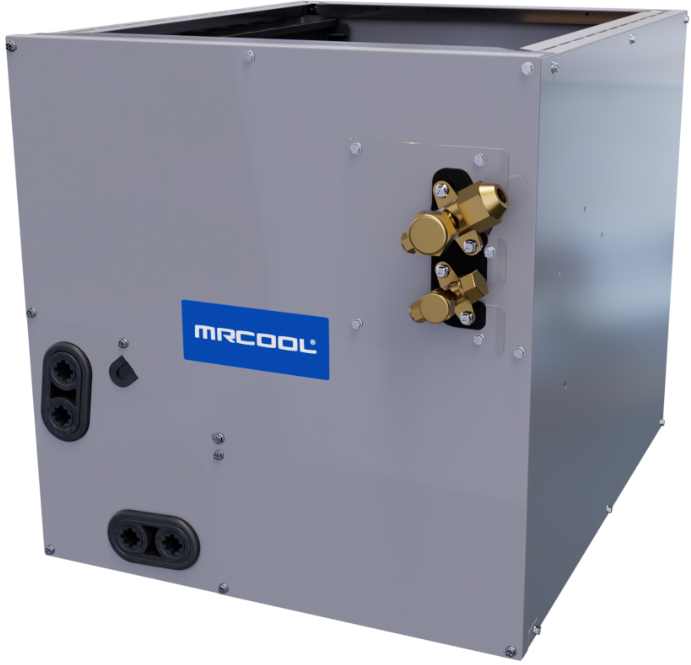

2.5-3 Ton Multi-Positional 17.5" Cased Coil - Pre-Charged R454B

The MRCOOL® 2.5-3 Ton Pre-Charged A-Coil is built to simplify installation and deliver dependable comfort for a wide range of HVAC applications. Designed to pair perfectly with most R-454B systems with No-Vac® Quick Connect® line set or a flare to sweat connections, this coil is an ideal choice for both retrofit projects and new setups. Pre-charged with environmentally friendly R-454B refrigerant, this coil meets today’s climate-conscious standards. R-454B offers a significantly lower Global Warming Potential than older refrigerants, helping reduce your home’s environmental impact without sacrificing performance. The factory charge also eliminates the need for field-charging, cutting down on installation time, labor costs, and complexity.

Compact and adaptable, the MRCOOL Pre-Charged A-Coil supports upflow, downflow, and horizontal applications, making it easy to install in tight or unconventional spaces. It features dual front drains for flexible utility connections, a built-in side drain pan for horizontal configurations, and an A2L leak detection sensor as an additional safety measure—each detail is designed with homeowner and contractor convenience in mind. Constructed with CoolGuard® corrosion-resistant aluminum, the coil is engineered for long-lasting performance, even in tough operating conditions. Its durable build helps extend system life and reduce maintenance needs over time.

Backed by a 10-year limited parts warranty, the MRCOOL® 3036-B Pre-Charged A-Coil offers homeowners and contractors a reliable, energy-efficient solution that delivers season after season. It’s the smart way to upgrade your system while saving time, energy, and installation effort.

• Works With Hyper Heat Condensers, Universal Split Condensers, and the VersaPro 2nd Generation Furnaces

• Tonnage 2.5-3 Ton

• Color Grey

• Refrigerant Type R-454B

• Liquid Line Size 3/8

• Suction Line Size 3/4

• Metering Device TXV

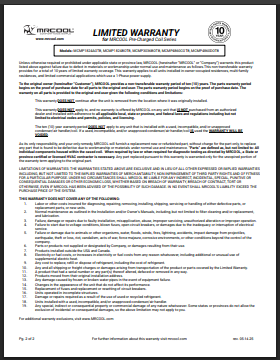

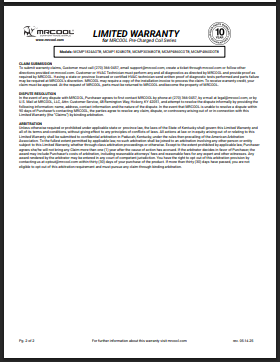

• Base Warranty 10 Year Part Warranty

• Base Parts Warranty 10 Year

• Net Depth (In) 21

• Net Height (In) 23.5

• Net Width (In) 17.5

• Net Weight (Lbs) 59.5

• Gross Weight (Lbs) 68

─────────────────────────────────────────────────────────────

This unit is designed to be installed using either a traditional flare nut configuration of refrigerant piping or the optional MRCOOL No-Vac Quick Connect R-454B Pre-Charged Line Set. If the optional No-Vac Quick Connect Line Set is used, you do not have to retain the services of a professional HVAC installer. If the traditional flare nut configuration is selected, you are required to retain services from a licensed HVAC professional. For electrical work, you should retain the services of a licensed electrician — please see the installation manual for full details.
