MDM10115D
Description

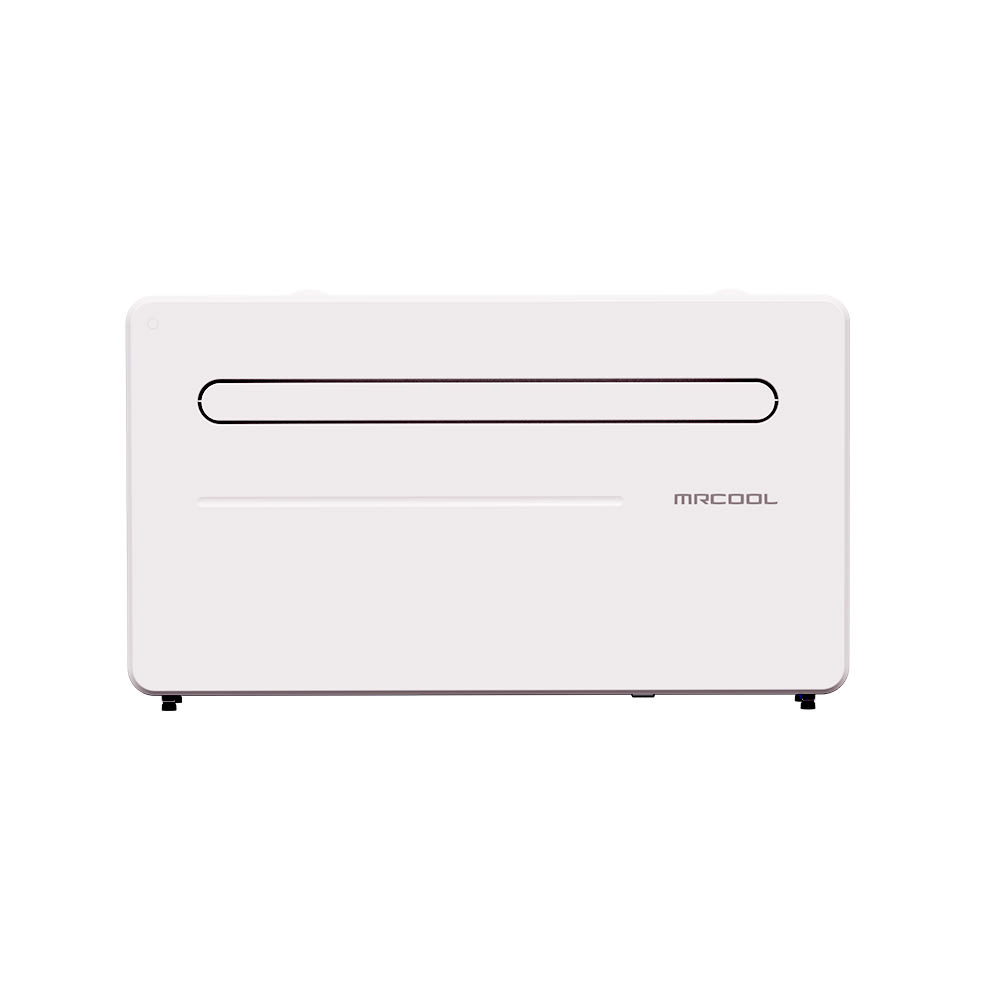

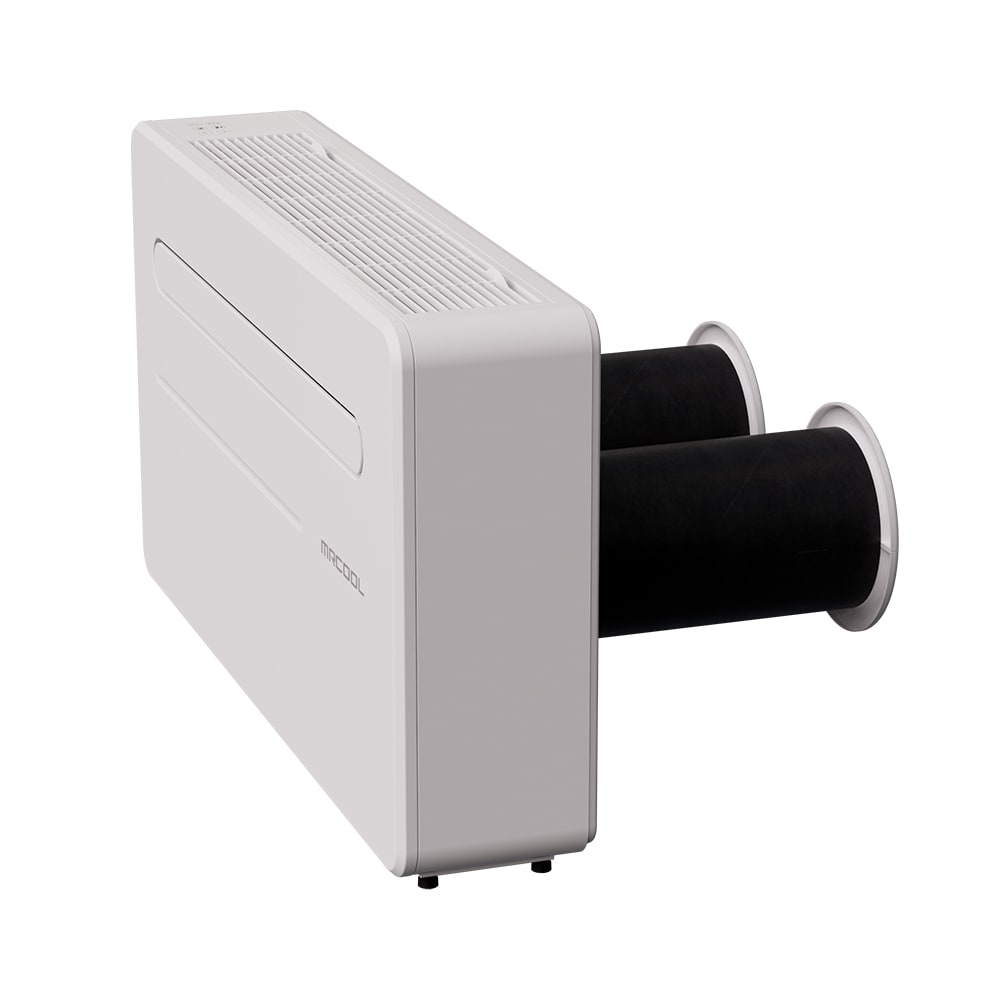

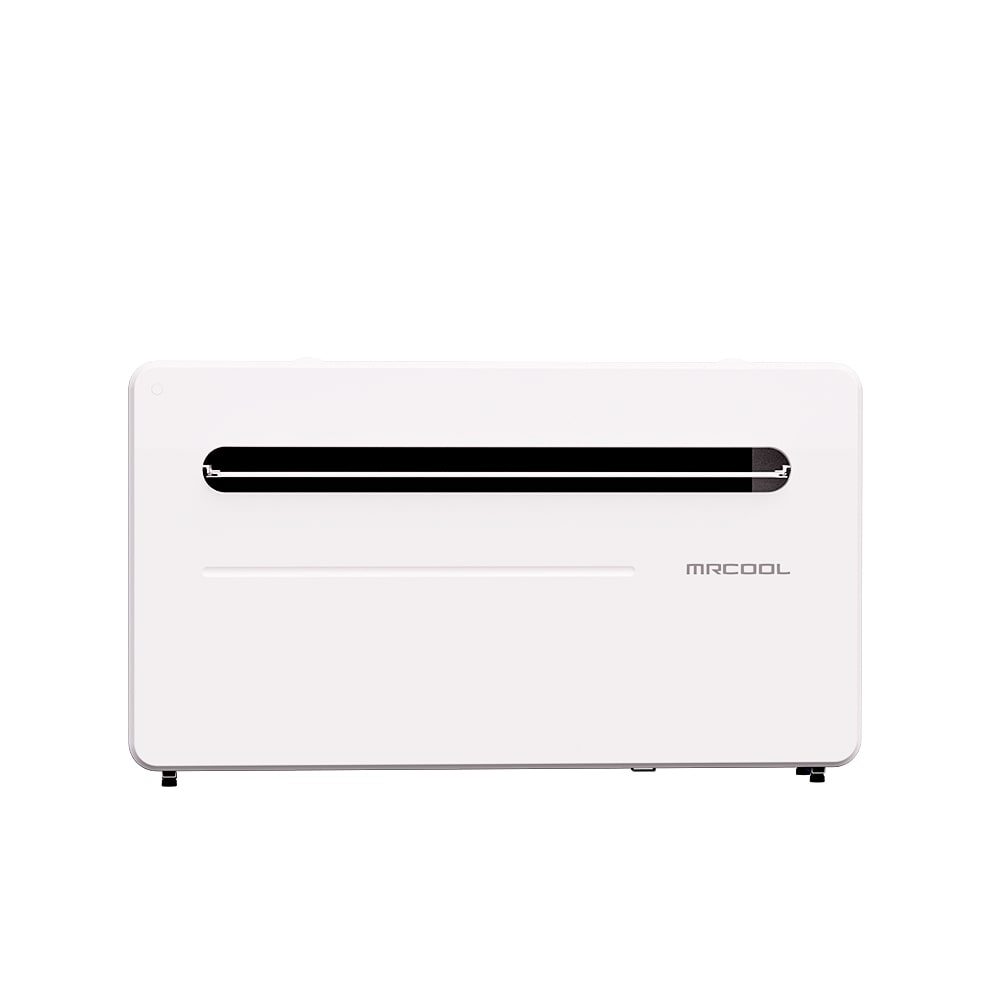

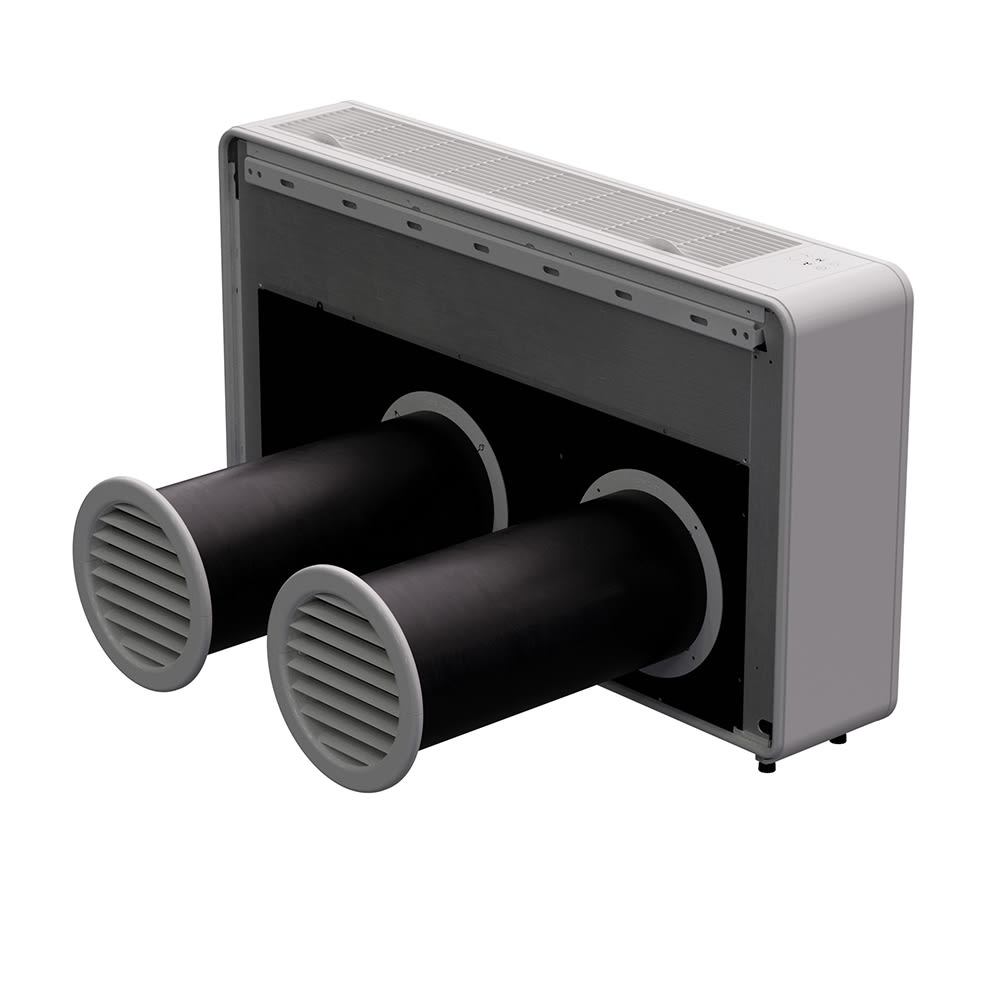

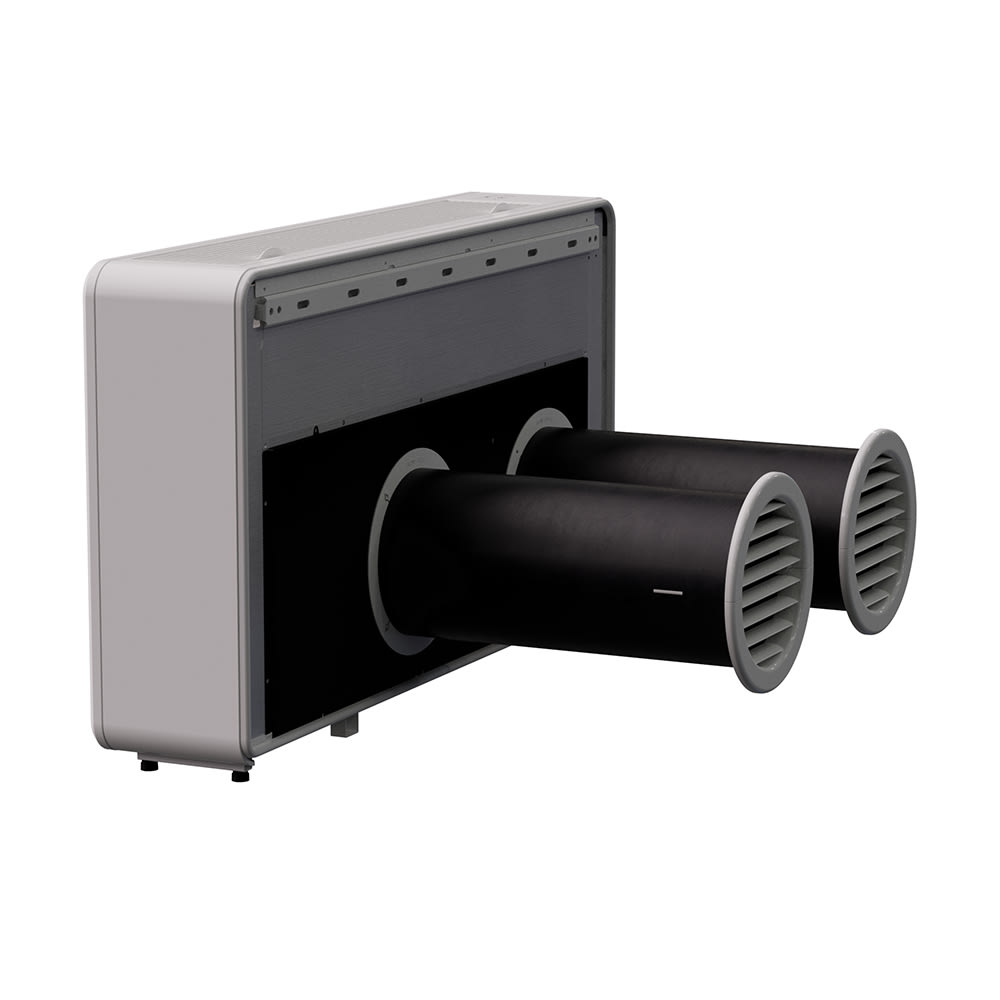

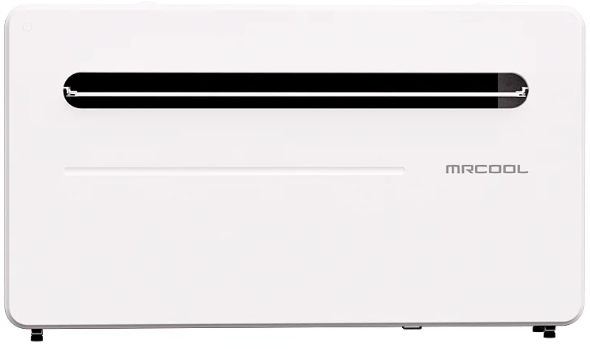

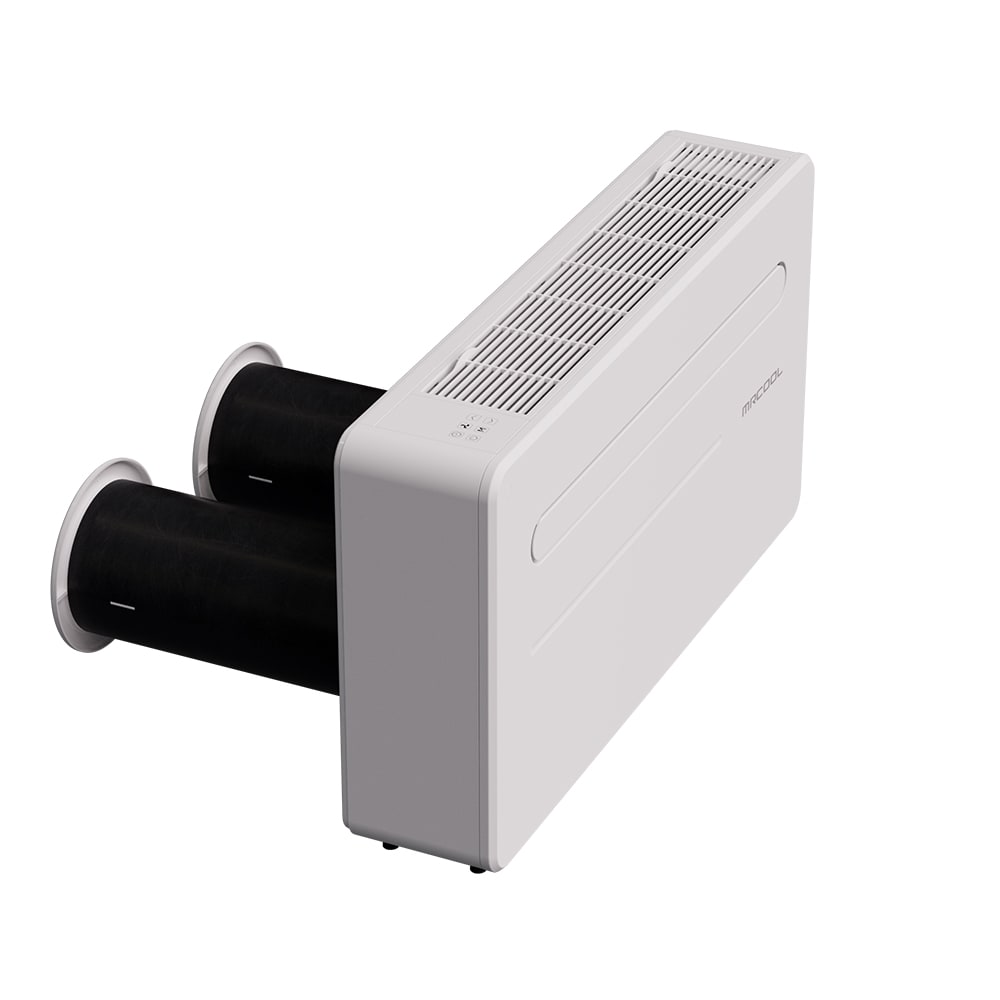

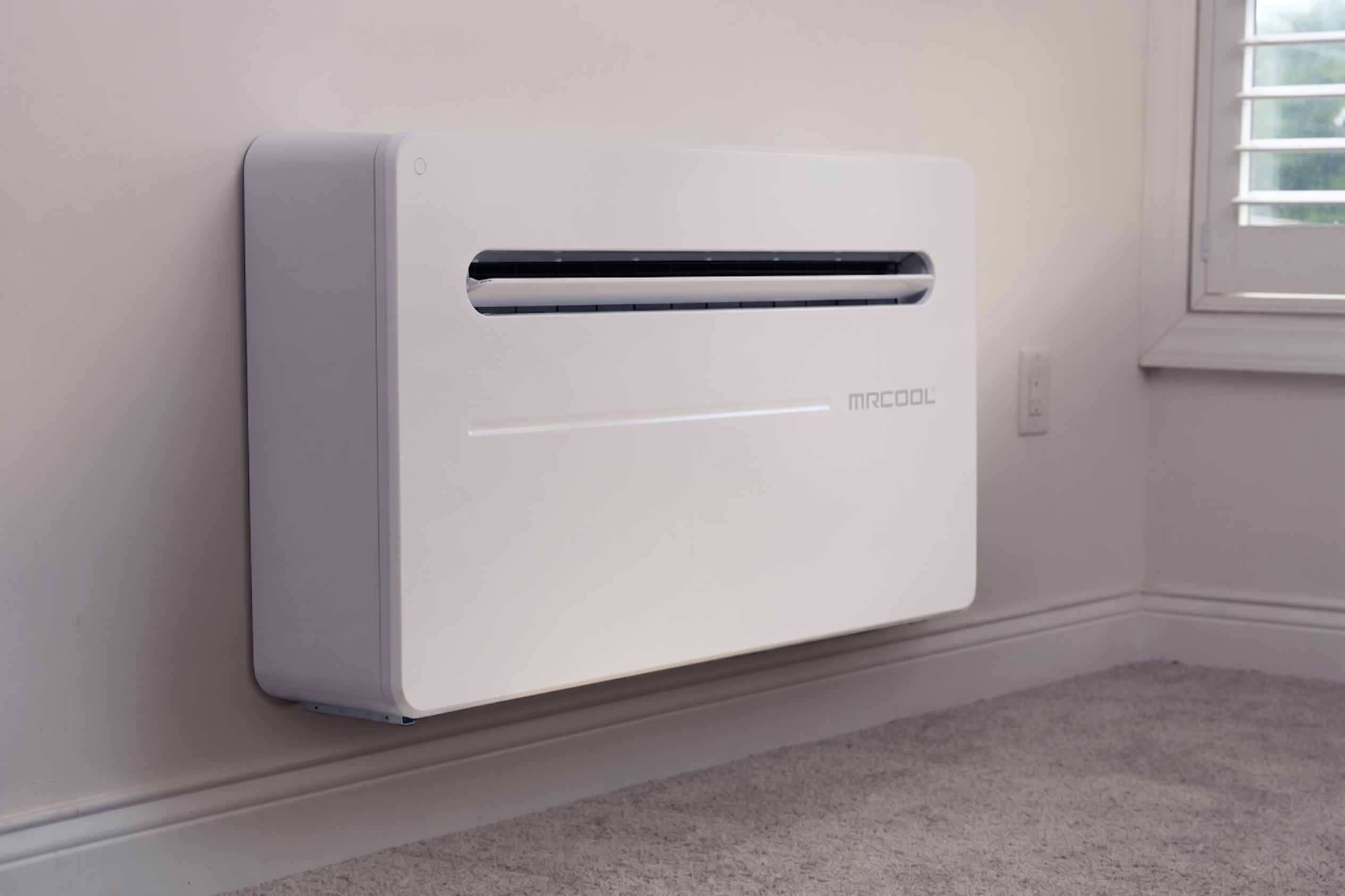

The MRCOOL® Monoblock MTHP Series is designed to deliver reliable, energy-efficient heating and cooling for small spaces. Built for year-round comfort, this system maintains consistent indoor temperatures while helping reduce energy use and manage monthly utility costs. Its all-in-one design eliminates the need for a traditional outdoor condenser, with all components housed within a single wall-mounted indoor unit, making it an excellent choice for installations where space is limited.
Installation is intentionally simple and DIY-friendly, requiring no refrigerant handling or certified HVAC technician. DC inverter technology allows the system to operate at variable speeds instead of frequent on-off cycling, resulting in smoother temperature control, quieter operation, improved energy efficiency, and reduced component wear. A durable full metal body and housing panel help ensure long-term reliability. The Monoblock MTHP uses R-32 refrigerant, a lower-GWP option designed to reduce environmental impact without compromising performance.

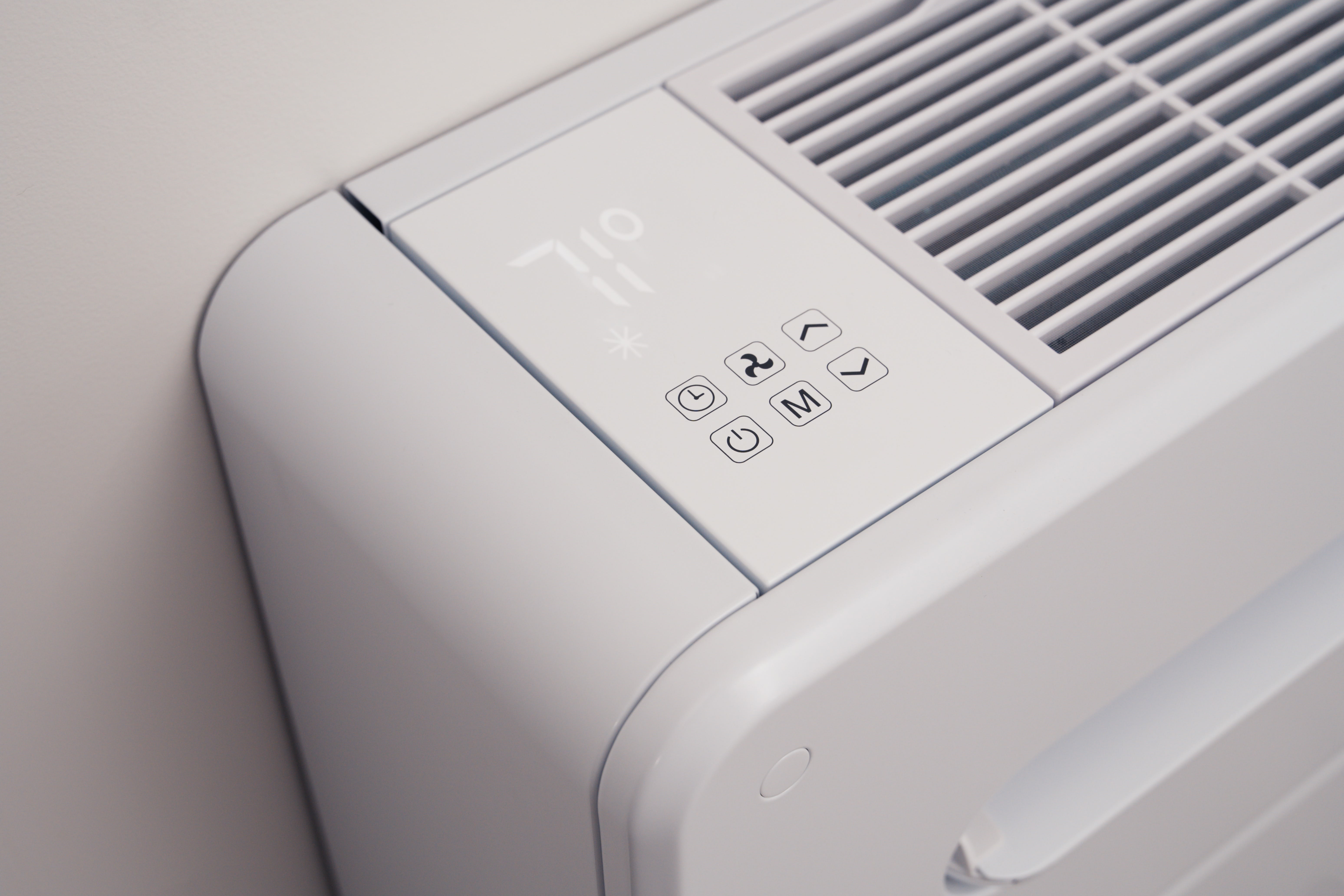

Operation is intuitive through a bright LED display, with optional WiFi control via the MRCOOL® Connect app. Features including cooling, heating, fan, and dry modes, along with swing, silent, and timer functions, allow the system to adapt easily to changing comfort needs. A self-evaporative system with water-full alarms and auto-stop protection supports efficient, worry-free operation. The system includes a 1-year replacement warranty and 1-year remote warranty for added peace of mind.
Find the Brochure HERE
─────────────────────────────────────────────────────────────
Key Specs
- Cooling Capacity (BTU): 10,000
- Heating Capacity (BTU): 9,000
- Tonnage: 0.83
- SEER2: 15
- EER2: 9.9
- HSPF2: 7.5
- Voltage (V): 115
- Phase: 1 Cycle: 60
- Max Fuse Breaker (A): 20
- Min Circuit Ampacity (A): 13
- Mount Type: Wall Color: White
- Refrigerant Type: R-32
- Refrigerant Volume: 19.4 oz
- Decibel Rating (Low): 32 dBA
- Decibel Rating (High): 46 dBA
- Compressor Type: Rotary
- Condenser Fan Motor Type: DC
- Blower Motor Type: DC
- Inverter: Yes
- Filter Type: Reusable
- Oscillation: Yes
- Fan Only Option: Yes
- Quiet Mode: Yes
- Smart Features: WiFi / App Compatible (iOS & Android)

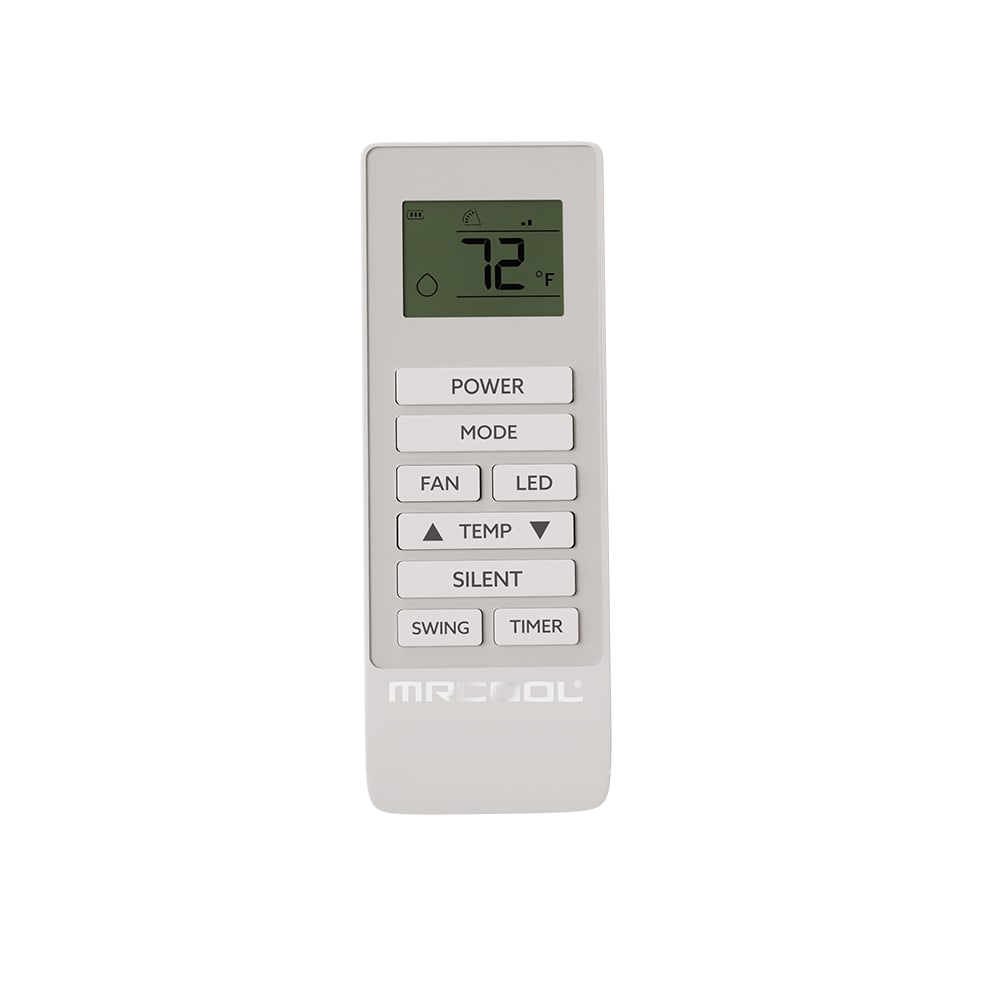

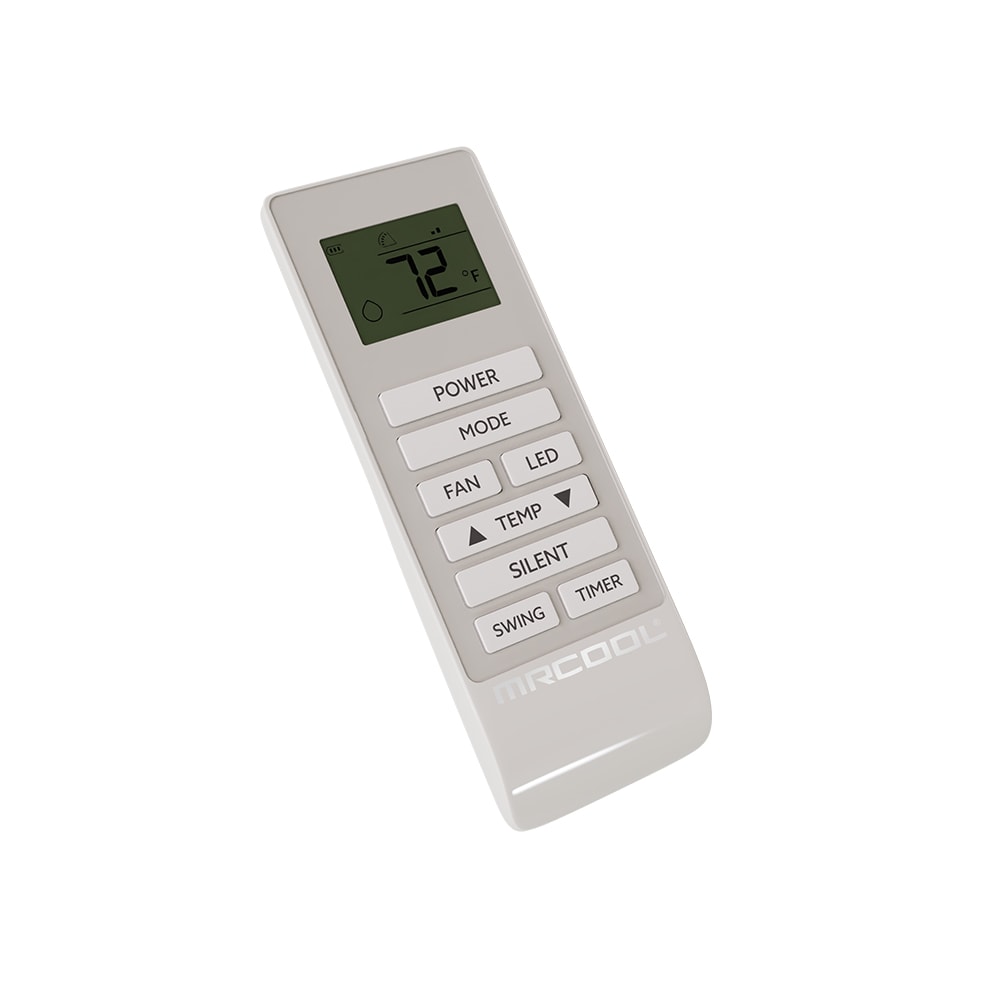

- Controls: Remote included
- Auxiliary Heater Included: No
- Auxiliary Heater Available: No
- Warranty: 1 year parts, 1 year remote
- Safety / Compliance: Prop 65 warning applies
- Electrical/Material Notes: Contains electronics, chemicals, compressed gas
- Dimensions (Net): 39.4 × 23.1 × 8.07 in
- Weight (Net): 93.5 lbs
- Dimensions (Gross): 44.1 × 26.19 × 13.19 in
- Weight (Gross): 106.7 lbs
─────────────────────────────────────────────────────────────
Compatibility
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

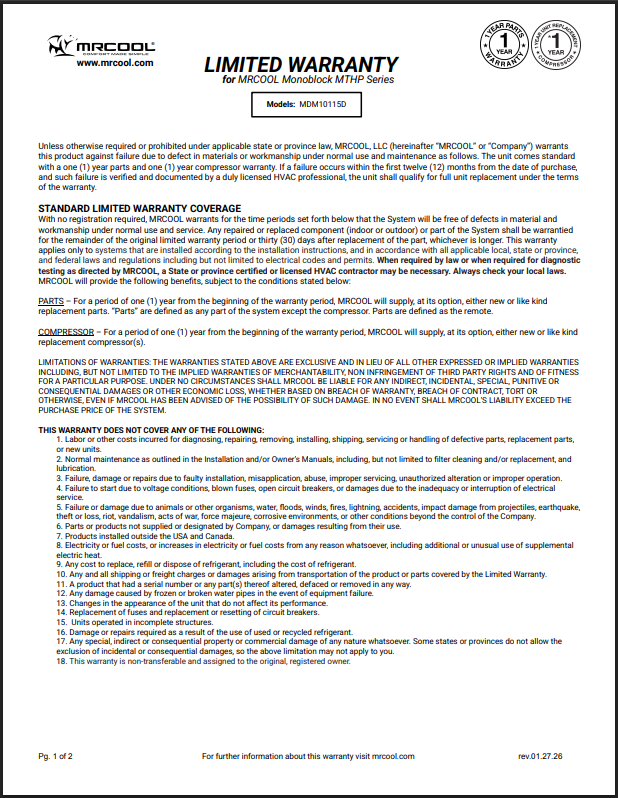

Warranty
The MRCOOL warranty offers comprehensive coverage for your unit, even with DIY self-installation.
─────────────────────────────────────────────────────────────
