Central Ducted 30K Hyper Heat Condenser 2.5 ton - 230v 2nd Gen

Sandra
Updated

CENTRAL-30-HP-C-230B00-O

DIY OPTIONAL (SEE BELOW)

Description

Elevate your home into a haven of comfort with the 30K MRCOOL® Hyper Heat Central Ducted Condenser, crafted to excel in harsh winters and sweltering summers. This advanced unit combines robust performance with energy efficiency, featuring DC Inverter and variable speed technology.

With a SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, it provides dependable operation while helping to reduce energy costs. The included MRCOOL® Smart Thermostat ensures effortless temperature control for your convenience.

The 30K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 30K MRCOOL® VersaPro® Central Ducted Air Handler. Designed with flexibility in mind, the air handler supports multiple installation configurations and offers the option to add a heat kit for enhanced versatility. The system utilizes R-454B refrigerant, reflecting a forward-thinking approach to environmental sustainability.

The outdoor heat pump is built for durability, featuring a sturdy painted galvanized steel exterior. The air handler has a compact design that simplifies maintenance, along with a slide-out blower and a self-diagnostic panel for easy troubleshooting.

For ultimate peace of mind, the 30K MRCOOL® Hyper Heat Central Ducted Condenser is backed by a 10-year warranty, covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, offering hassle-free protection.

Upgrade your home's climate control with this reliable, energy-efficient system today!



Find the Brochure Here

─────────────────────────────────────────────────────────────

Key Specs  (Performance Specs Click Here)

  • SEER2 Rating: 16.8
    Tonnage: 2.5
    Refrigerant Type: R-454B
    Liquid Line Size: 3/8"
    Suction Line Size: 3/4"
    Base Parts Warranty: 10 years
    Base Compressor Warranty: 10 years
    Base Labor Warranty: 10 years
    Net Depth: 16.14 in
    Net Height: 31.89 in
    Net Width: 37.24 in
    Net Weight: 164.02 lbs

─────────────────────────────────────────────────────────────

Compatibility

VersaPro 24K Central Ducted Air Handler 2 Ton - 230v

VersaPro 30K Central Ducted Air Handler 2.5 Ton - 230v

5th Gen R-454B No Vac Line Sets 3/8" - 3/4"



Units with 24k, 30k, 36k, 48k, and 60k capacity are designed for installation using either a traditional flare nut configuration for refrigerant piping or the optional MRCOOL No-Vac Quick Connect R-454B Pre-Charged Line Set. If the optional No-Vac Quick Connect Line Set is used, you do not need to retain the services of a professional HVAC installer. However, if the traditional flare nut configuration is selected, you are required to retain the services of a licensed HVAC professional. For electrical work, you should retain the services of a licensed electrician — please see the installation manual for full details.



Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

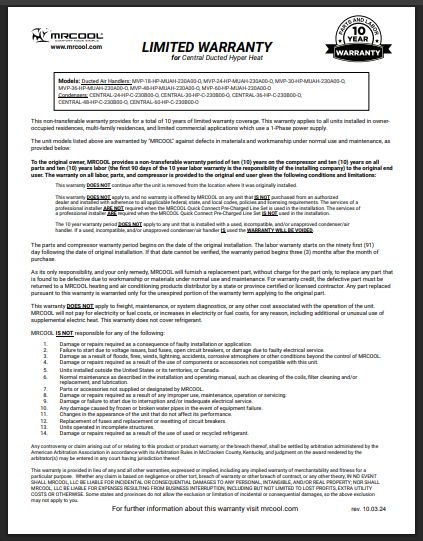

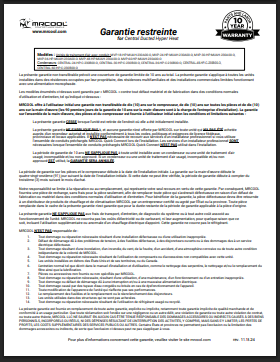

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit.

─────────────────────────────────────────────────────────────
