CENTRAL-48-HP-MUAH-230-00
DIY OPTIONAL (SEE BELOW)
Description

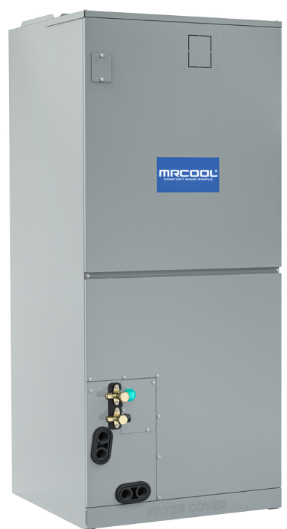

The MRCOOL 48k BTU 17.3 SEER Ducted Air Handler and Condenser is designed to provide reliable heating and cooling for your home. With a Seasonal Energy Efficiency Ratio (SEER) of 17.3, it offers a balance between performance and energy consumption. It ensures effective climate control. The unit operates using R-410A environmentally friendly refrigerant, aligning with eco-conscious standards. Additional features include timer mode, auto cool mode, and fan-only mode for customizable comfort. A wired thermostat (0.78” x 4.72” x 4.72”) is included for precise temperature management, and the system supports multi-position installation for flexible setup. An optional electric heating kit is available for enhanced functionality. The unit is backed by a 10-year parts and labor warranty, ensuring long-term reliability
Find the Brochure HERE
─────────────────────────────────────────────────────────────
Key Specs (Performance Specs Click Here)
- Decibel Rating (DBA): 53/50/46
- Air Flow Direction: Multi-position
- Base Warranty: 10 years parts and labor
- Auxiliary Heater Sizes: 8kw, 10kw, 15kw, 20kw
- Net Depth (in): 21.02
- Net Height (in): 49.02
- Net Width (in): 21.02
- Net Weight (lbs): 132.50
─────────────────────────────────────────────────────────────
Compatibility
Central Ducted 48K Condenser - 230v
CENTRALHK08 08KW Heat Kit - Central Ducted Series
CENTRALHK10 10KW Heat Kit - Central Ducted Series
CENTRALHK15 15KW Heat Kit - Central Ducted Series
CENTRALHK20 20KW Heat Kit - Central Ducted Series
This unit is designed to be installed using either a traditional flare nut configuration of refrigerant piping or the optional MRCOOL No-Vac Quick Connect R-410 Pre-Charged Line Set. If the optional No-Vac Quick Connect Line Set is used, you DO NOT have to retain the services of a professional HVAC installer. If the traditional flare nut configuration is selected, you ARE REQUIRED to retain services from a licensed HVAC professional. For electrical work, you should retain the services of a licensed electrician – please see the installation manual for full details.
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

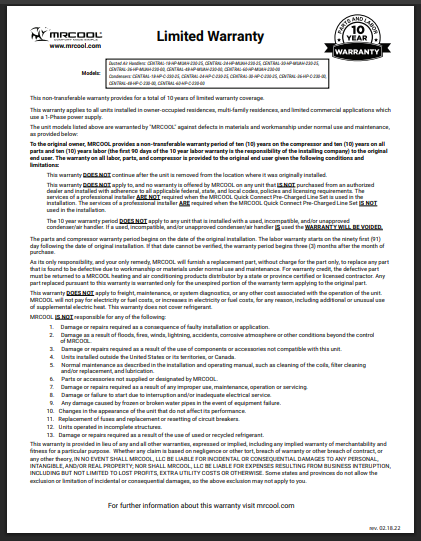

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────
