CENTRAL-24-HP-MUAH-230-25
DIY OPTIONAL (SEE BELOW)
Description
The MRCOOL 24k BTU 22 SEER Condenser with 25-foot DIYPRO Cable provides highly efficient heating and cooling for your home. It includes features such as timer mode, auto cool mode, and fan-only mode, offering customizable comfort. The unit comes with a wired thermostat (0.78” x 4.72” x 4.72”) for precise temperature control and supports multi-position installation for flexible setup. An optional heating kit is available for enhanced functionality. This system uses R-410A environmentally friendly refrigerant, promoting eco-friendly operation. Additionally, the unit is backed by a 10-year parts and labor warranty, ensuring long-term reliability.
Find the Brochure HERE
─────────────────────────────────────────────────────────────
Key Specs (Performance Specs Click Here)
- Decibel Rating (DBA): 43.0/41.5/38.0
- Air Flow Direction: Multi-position
- Base Warranty: 10 years parts and labor
-
Auxiliary Heater Sizes: 5kw, 8kw, 10kw, 15kw
- Net Depth (in): 17.52
- Net Height (in): 45.00
- Net Width (in): 21.02
- Net Weight (lbs): 106.4
─────────────────────────────────────────────────────────────
Compatibility
Central Ducted 24K Condenser - 230v
CENTRALHK05 05KW Heat Kit - Central Ducted Series
CENTRALHK08 08KW Heat Kit - Central Ducted Series
CENTRALHK10 10KW Heat Kit - Central Ducted Series
CENTRALHK15 15KW Heat Kit - Central Ducted Series
This unit is designed to be installed using either a traditional flare nut configuration of refrigerant piping or the optional MRCOOL No-Vac Quick Connect R-410 Pre-Charged Line Set. If the optional No-Vac Quick Connect Line Set is used, you DO NOT have to retain the services of a professional HVAC installer. If the traditional flare nut configuration is selected, you ARE REQUIRED to retain services from a licensed HVAC professional. For electrical work, you should retain the services of a licensed electrician – please see the installation manual for full details.
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

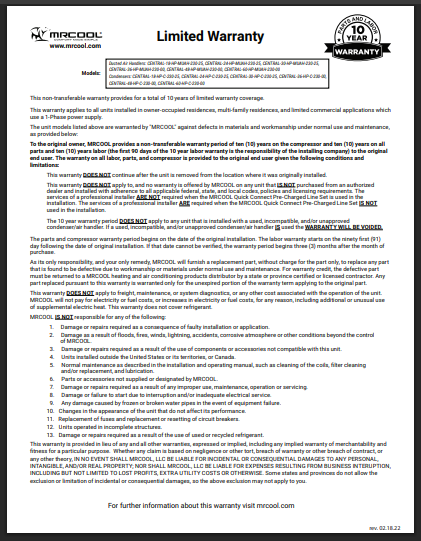

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────
