Central Ducted 48K Hyper Heat Condenser 4 ton - 230v 2nd Gen

Sandra
Updated

CENTRAL-48-HP-C-230B00-O

DIY OPTIONAL (SEE BELOW)

Description

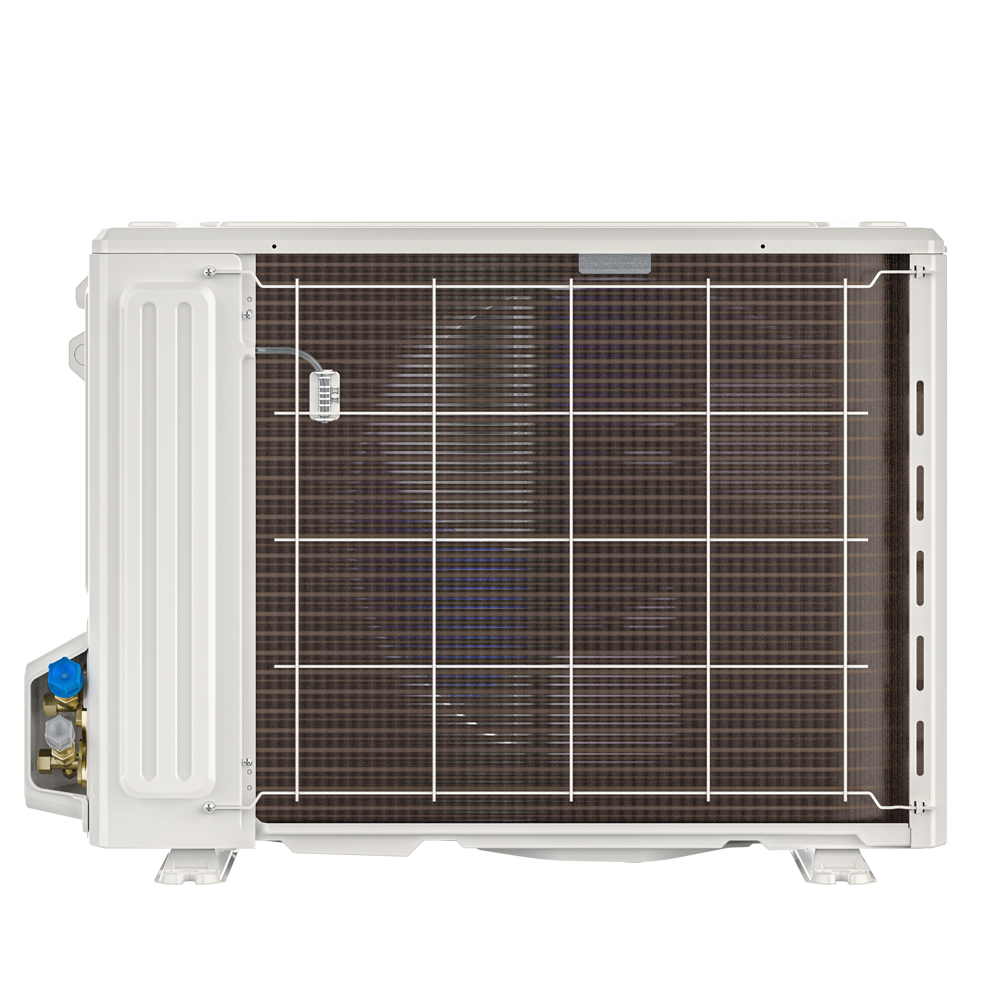

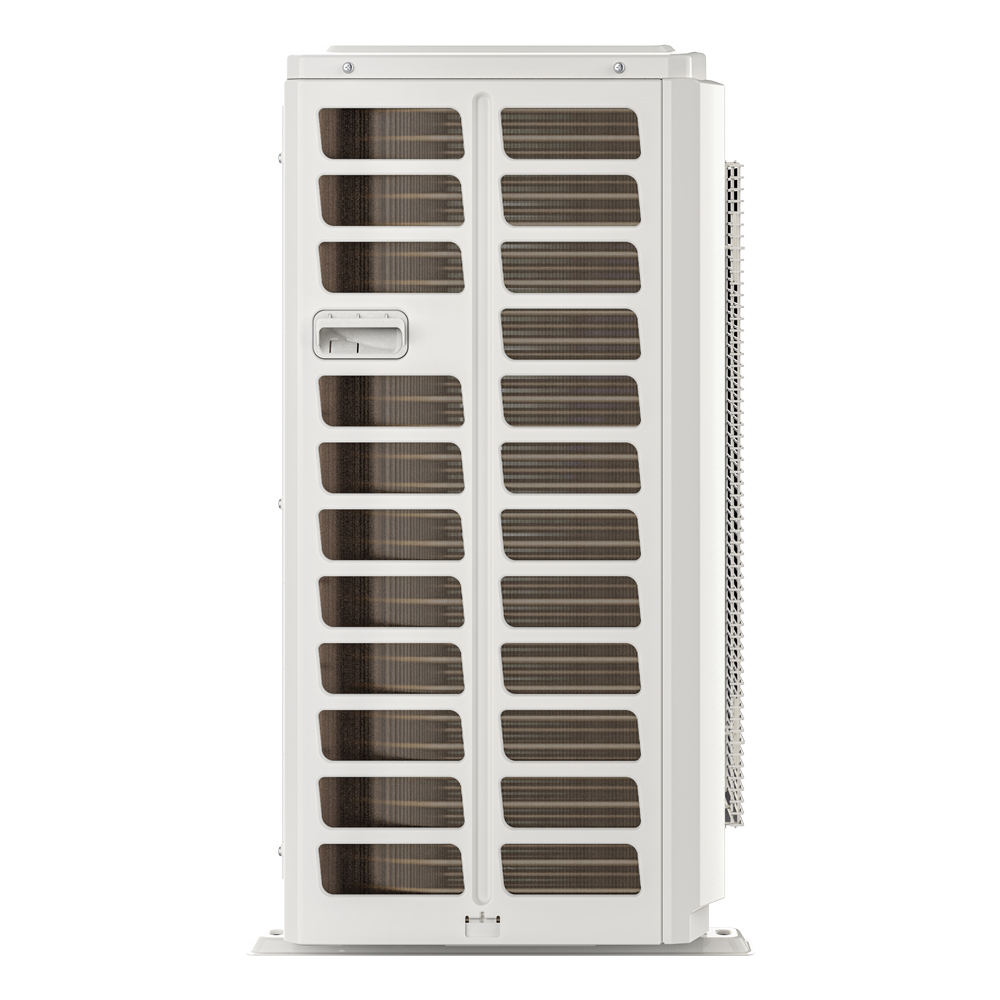

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme climates, from icy winters to scorching summers. This Hyper Heat system utilizes DC Inverter technology and variable speed functionality to deliver consistent, high-quality operation. With a SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, it offers powerful heating and cooling while maximizing energy efficiency. A MRCOOL® Smart Thermostat is included, giving you complete control over your indoor environment with ease.

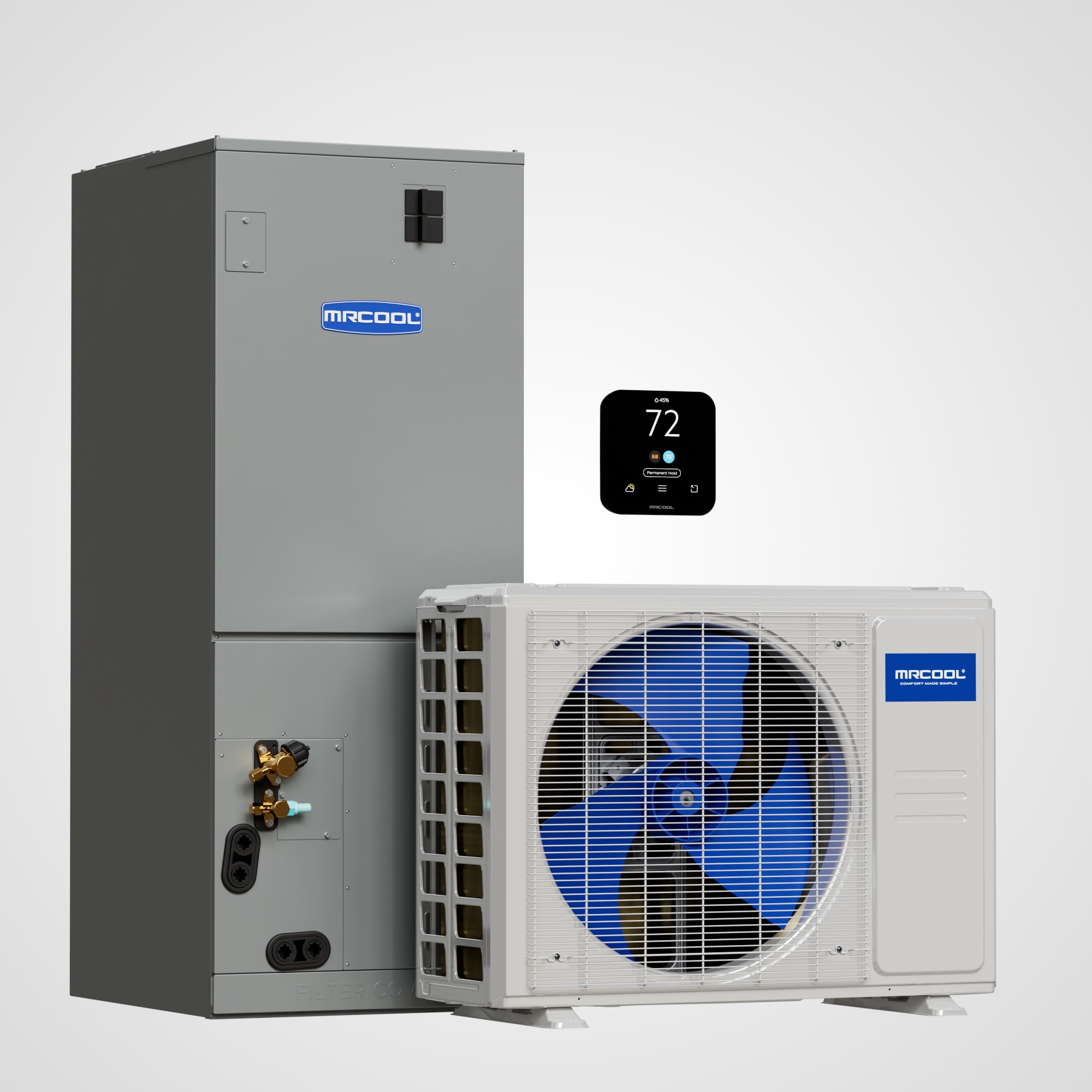

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 48K MRCOOL® VersaPro® Central Ducted Air Handler. The air handler is built for flexibility, supporting various installation options, and is compatible with an optional heat kit for added capability. The system features R-454B refrigerant, a sustainable choice that minimizes its environmental impact.

Durability is a hallmark of the outdoor heat pump, constructed with a painted galvanized steel exterior for long-term resilience. The air handler is thoughtfully designed with a compact form, slide-out blower, and self-diagnostic panel to streamline maintenance and troubleshooting.

Enjoy peace of mind with the system’s 10-year warranty, covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, so no registration is required.

Enhance your home’s comfort with the efficient and reliable 48K MRCOOL® Hyper Heat Central Ducted Condenser today!



Find the Brochure Here

─────────────────────────────────────────────────────────────

Key Specs  (Performance Specs Click Here)

  • SEER2 Rating: 16.5

  • Tonnage: 4

  • Refrigerant Type: R-454B

  • Liquid Line Size: 3/8"

  • Suction Line Size: 3/4"

  • Base Parts Warranty: 10 Years

  • Base Compressor Warranty: 10 Years

  • Base Labor Warranty: 10 Years

  • Net Depth: 16.34 in

  • Net Height: 38.39 in

  • Net Width: 38.58 in

  • Net Weight: 201.06 lbs

─────────────────────────────────────────────────────────────

Compatibility

VersaPro 36K Central Ducted Air Handler 3 Ton - 230v

VersaPro 48K Central Ducted Air Handler 4 Ton - 230v

5th Gen R-454B No Vac Line Sets 3/8" - 3/4"

8kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit

10kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit

15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit

20kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit



Units with 24k, 30k, 36k, 48k, and 60k capacity are designed for installation using either a traditional flare nut configuration for refrigerant piping or the optional MRCOOL No-Vac Quick Connect R-454B Pre-Charged Line Set. If the optional No-Vac Quick Connect Line Set is used, you do not need to retain the services of a professional HVAC installer. However, if the traditional flare nut configuration is selected, you are required to retain the services of a licensed HVAC professional. For electrical work, you should retain the services of a licensed electrician — please see the installation manual for full details.



Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

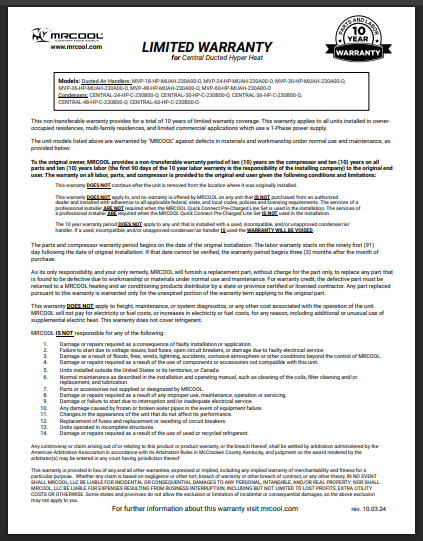

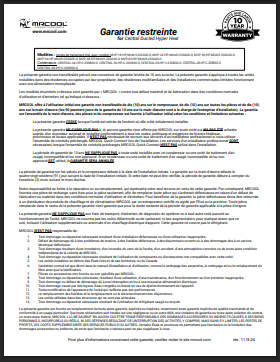

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit.

─────────────────────────────────────────────────────────────
