High ESP 36K 2-3 Ton R-410A Air Handler 230v - Universal Series

Sandra
Updated

MDUI18036E

DIY OPTIONAL (SEE BELOW)

Description

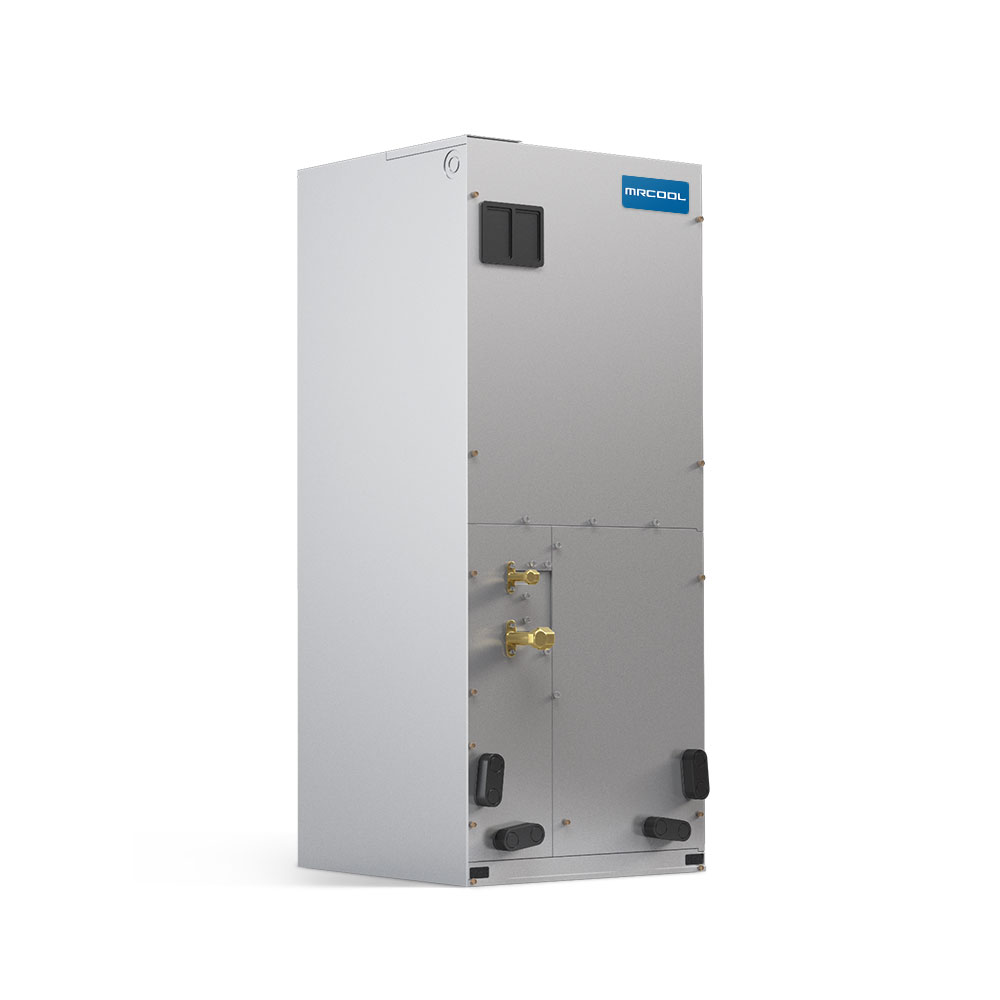

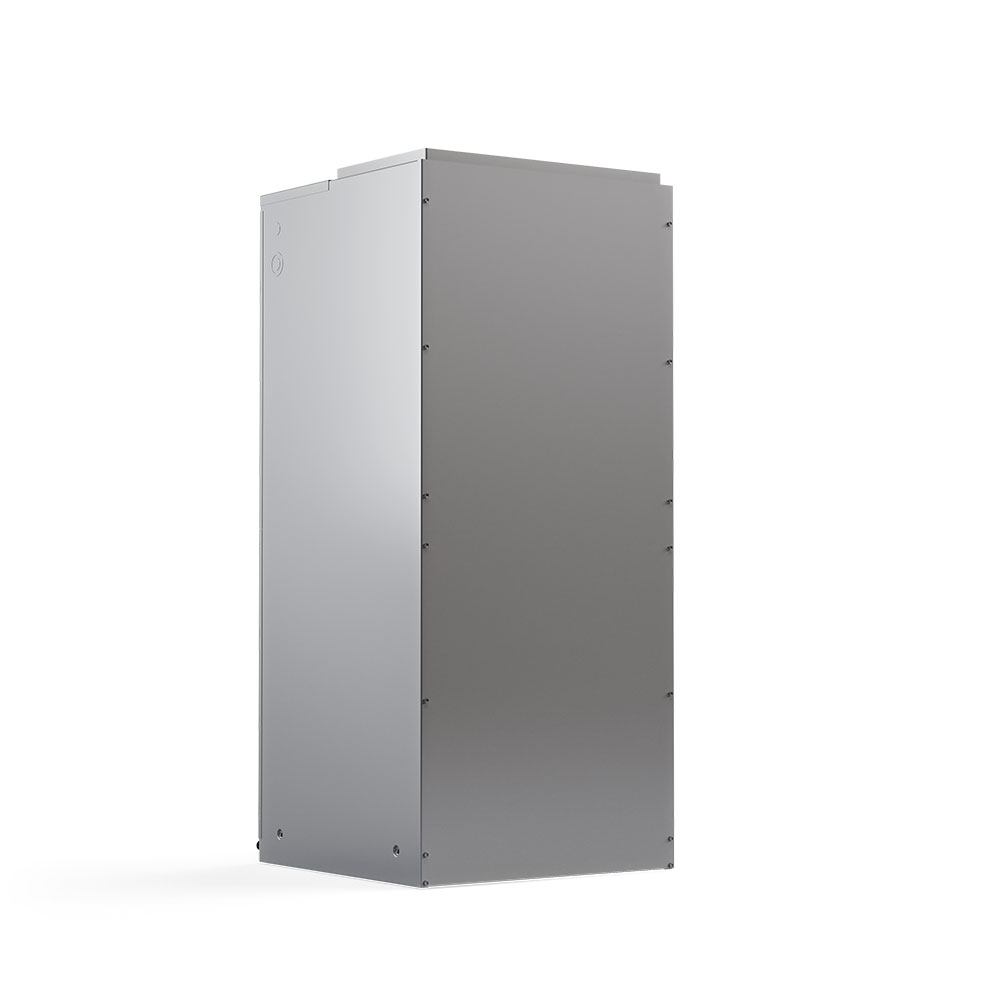

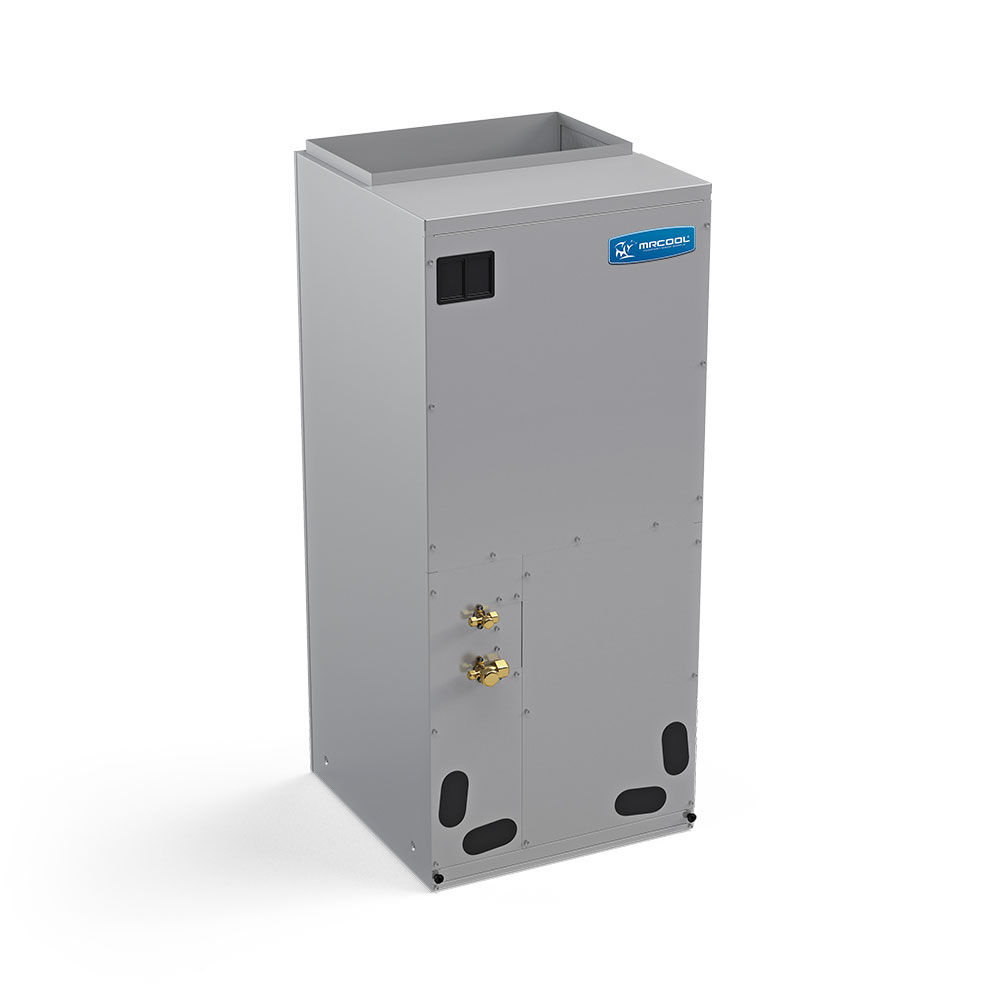

The new Universal High-ESP Air Handler is designed for use in high static pressure applications, such as in a manufactured or mobile home, or in a system with ductwork restrictions that would strain a conventional air handler not rated for high external static pressure. This air handler is equipped with a powerful and efficient DC fan motor, featuring blades designed for quiet operation while providing dynamic performance. The unit is capable of reaching a maximum static pressure of 250 Pa and offers multiple installation positions (vertical, horizontal left, or horizontal right) for easy integration into various applications. The Universal High-ESP Air Handler also uses a durable metal filter that is easy to clean and corrosion resistant, ensuring a long service life.

Find the Brochure Here

─────────────────────────────────────────────────────────────

Key Specs

  • Up to 18 SEER

  • Multi-Position Installation – Upflow or Horizontal

  • 2-Step Condensation Protection

  • SEER: 18

  • EER: 10

  • HSPF: 10

  • Tonnage: 2-3

  • Voltage (V): 208-230

  • Refrigerant Type: R-410A

  • Number of Speeds: 8 Speed

  • Liquid Line Size: 3/8

  • Suction Line Size: 3/4

  • Auxiliary Heater Sizes: 5 kW / 8 kW / 10 kW

  • Net Depth (in): 21.25

  • Net Height (in): 48.25

  • Net Width (in): 21.25

  • Net Weight (lbs): 156.50

─────────────────────────────────────────────────────────────

Compatibility

MHK05U 5KW Heat Strip - Universal Series

MHK08U 8KW Heat Strip - Universal Series

MHK10U 10KW Heat Strip - Universal Series

24K-36K Universal Series 2-3 Ton Condenser 230V- Universal Series

36K DC Inverter Unitary Cooling Only Condenser 2-3 ton - Universal Series

Evaporator Coils - Universal Series



This unit is designed to be installed using either a traditional flare nut configuration of refrigerant piping or the optional MRCOOL No-Vac Quick Connect R-410A Pre-Charged Line Set. If the optional No-Vac Quick Connect Line Set is used, you do not have to retain the services of a professional HVAC installer. If the traditional flare nut configuration is selected, you are required to retain services from a licensed HVAC professional. For electrical work, you should retain the services of a licensed electrician — please see the installation manual for full details.



Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support

─────────────────────────────────────────────────────────────

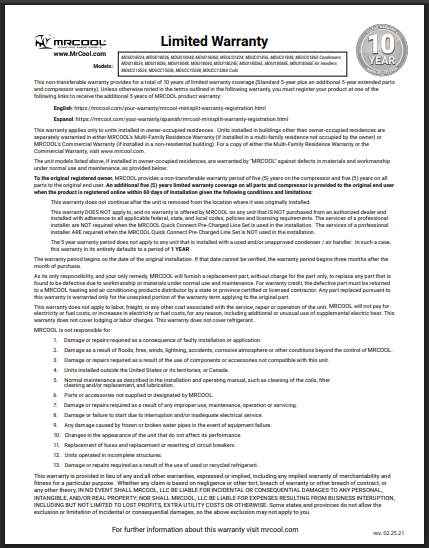

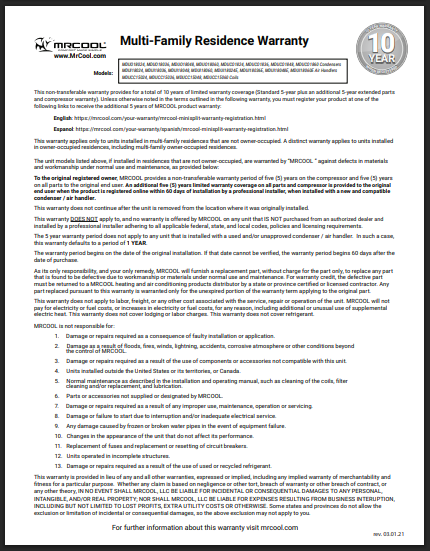

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit.



─────────────────────────────────────────────────────────────
