MDPH18036D
Description

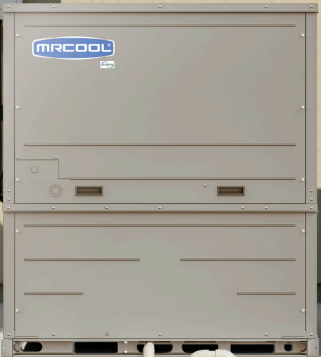

The MRCOOL® 2nd Generation Universal® Series 36K Inverter Packaged Heat Pump is designed to deliver dependable heating and cooling while lowering energy costs and environmental impact. Built with advanced DC inverter technology, the compressor runs at variable speeds to match your home’s exact needs, maintaining steady comfort without the frequent system cycling seen in older systems. This reduces wear on components, improves efficiency, and helps the unit operate at a whisper-quiet frequency. With an impressive 18 SEER2 rating, this packaged system significantly reduces energy consumption while still providing strong airflow and performance. It is engineered to handle extreme climates, delivering reliable heating in temperatures as low as –22°F (–30°C) and cooling in conditions as high as 125°F (52°C). No matter the season, homeowners can count on consistent comfort and efficiency.
Environmentally conscious design is another advantage. The Universal® 36K uses R-32 refrigerant, a modern, lower-GWP alternative that reduces environmental impact compared to traditional refrigerants. This makes it a sustainable and forward-thinking choice for today’s homeowners. Installation is simplified with a versatile multi-position design that supports vertical upflow/downflow and horizontal configurations. Built for durability, the MRCOOL® Universal® Series 36K is backed by a 10-year parts and labor warranty, giving homeowners confidence in long-term performance. It’s a smart investment in comfort, savings, and sustainability.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 18
- EER2: 11.2
- HSPF2: 8.5
- TONNAGE: 3
- COOLING CAPACITY (BTU): 34,000
- HEATING CAPACITY (BTU): 34,000
- VOLTAGE (V): 208/230
- PHASE: 1
- CYCLE: 60
- MAX FUSE BREAKER (A): 40
- MIN CIRCUIT AMPACITY (A): 35
- COLOR: Grey
- REFRIGERANT TYPE: R-32
- REFRIGERANT VOLUME (OZ): 149.9
- DECIBEL RATING (DBA): 63
- INVERTER: Yes
- MIN AMBIENT COOL (F): 23
- MIN AMBIENT HEAT (F): -22
- DRAIN CONNECTION SIZE: 3/4
- COMPRESSOR MOTOR TYPE: Inverter Rotary
- CONDENSER FAN MOTOR TYPE: Direct Drive
- CONDENSER FAN MOTOR RPM: 720
- BLOWER MOTOR TYPE: Direct Drive
- BLOWER MOTOR SPEEDS: 10
- BLOWER MOTOR RPM: 920
- METERING DEVICE: EEV
- AUXILIARY HEATER INCLUDED: No
- AUXILIARY HEATER AVAILABLE: Yes
- AUXILIARY HEATER SIZES: 6kW, 9kW, 12kW
- AHRI CERTIFIED: yes
- BASE WARRANTY: 10 Year Parts & Labor Warranty
- BASE PARTS WARRANTY: 10 Year Parts
- BASE LABOR WARRANTY: 10 Year Labor
- NET DEPTH (IN): 35.44
- NET HEIGHT (IN): 49.25
- NET WIDTH (IN): 44
- NET WEIGHT (LBS): 523
- GROSS DEPTH (IN): 35.94
- GROSS HEIGHT (IN): 50.78
- GROSS WIDTH (IN): 44.6
- GROSS WEIGHT (LBS): 545
Compatibility
DC Inverter Package Heat Kits Universal Series - R32
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

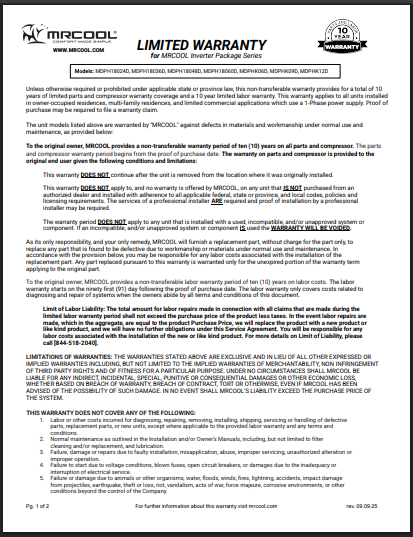

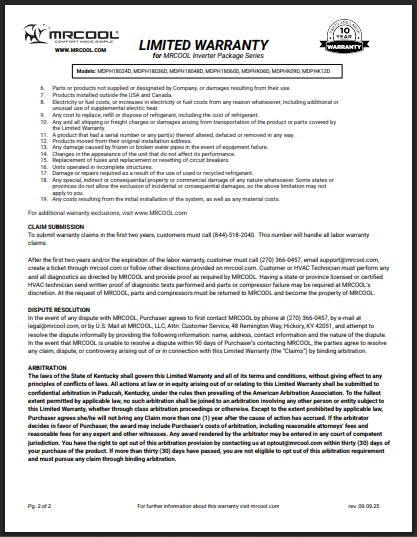

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
