UHP18036-O
DIY OPTIONAL (SEE BELOW)
Description

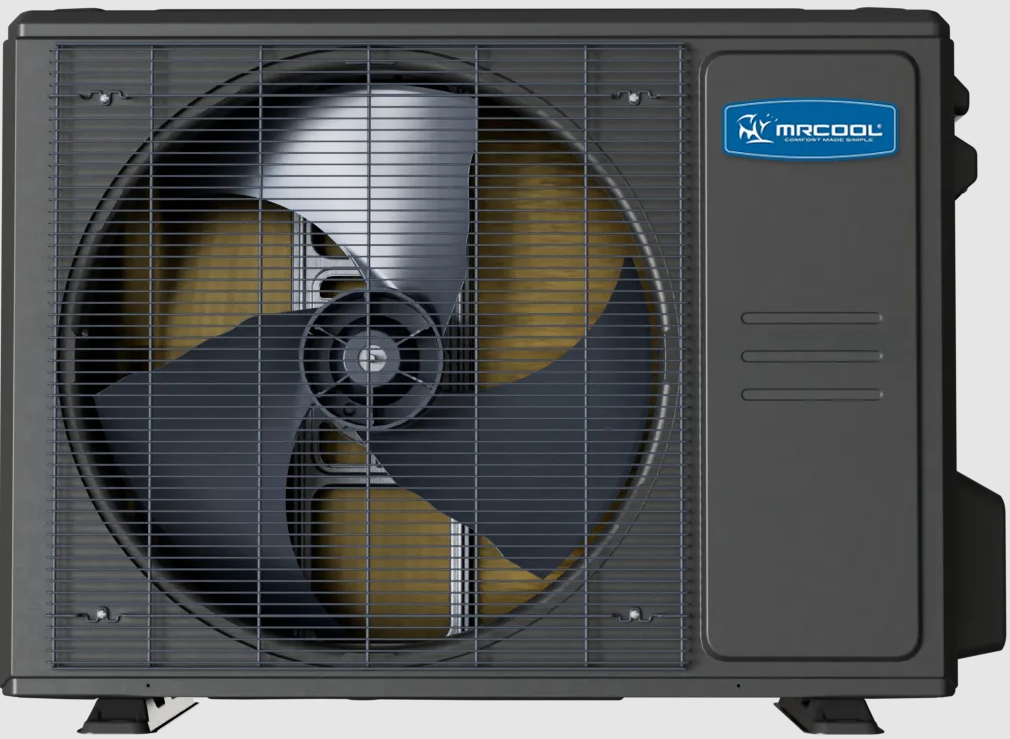

The MRCOOL® Universal® Series 36K DC Inverter Heat Pump Condenser is designed to deliver dependable, high-efficiency heating and cooling—even in the most extreme weather conditions. Whether you're facing sweltering summer heat or freezing winter temperatures, this unit ensures steady, year-round comfort.
With an impressive 18 SEER2 efficiency rating, it offers substantial energy savings without compromising performance, making it an ideal replacement for outdated, energy-hungry systems. Engineered for flexibility and convenience, the 36K Universal® condenser features a compact footprint that allows for installation in space-constrained areas. Its smaller size makes it an excellent fit for homes with limited outdoor clearance while still delivering powerful, whole-home comfort.
Installation is quick and hassle-free—especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This innovative, pre-charged line set eliminates the need for traditional vacuuming, flaring, or refrigerant handling, reducing installation time, labor costs, and complexity.
At the heart of the system is advanced DC inverter technology, which allows the compressor to continuously modulate output based on your home’s real-time temperature demands. Unlike traditional systems that cycle on and off, this inverter-driven condenser maintains consistent temperatures, reduces power consumption, minimizes component wear, and keeps noise levels low.
Whether you're upgrading an aging system or installing a new HVAC solution, the MRCOOL® Universal® Series 36K Heat Pump Condenser offers a winning combination of efficiency, performance, and quiet operation. To ensure long-lasting confidence, it’s backed by a 10-year parts warranty and a 2-year limited labor warranty.
────────────────────────────────────────────
Key Specs
SEER2: Up to 18
EER2: Up to 12
HSPF2-4: 10
HSPF2-5: 8.2
Tonnage: 3
Voltage (V): 230
Phase: 1
Cycle: 60
Max Fuse Breaker (A): 30
Min Circuit Ampacity (A): 29
Color: Dark Grey
Refrigerant Type: R-454B
Decibel Rating (dBA): 63
Inverter: DC
Liquid Line Size: 3/8
Suction Line Size: 3/4
Compressor Motor Type: Twin-Rotary
Condenser Fan Motor RPM: 800/750/650
Metering Device: EXV
Base Warranty: 10-Year Parts
Base Parts Warranty: 10 Years
Base Labor Warranty: 2 Years
Net Depth (in): 16.34
Net Height (in): 38.39
Net Width (in): 38.58
Net Weight (lbs): 204.15
Gross Depth (in): 19.68
Gross Height (in): 42.52
Gross Width (in): 45.08
Gross Weight (lbs): 235.23
────────────────────────────────────────────
Compatibility
Universal Series 36,000 BTU Air Handler
This unit is designed to be installed using either a traditional flare nut configuration of refrigerant piping or the optional MRCOOL No-Vac Quick Connect R-454B Pre-Charged Line Set. If the optional No-Vac Quick Connect Line Set is used, you do not have to retain the services of a professional HVAC installer. If the traditional flare nut configuration is selected, you are required to retain services from a licensed HVAC professional. For electrical work, you should retain the services of a licensed electrician — please see the installation manual for full details.
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support
────────────────────────────────────────────

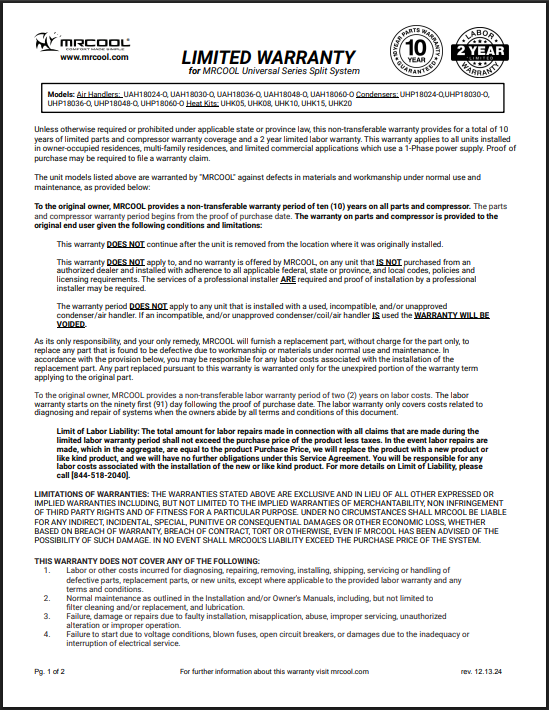

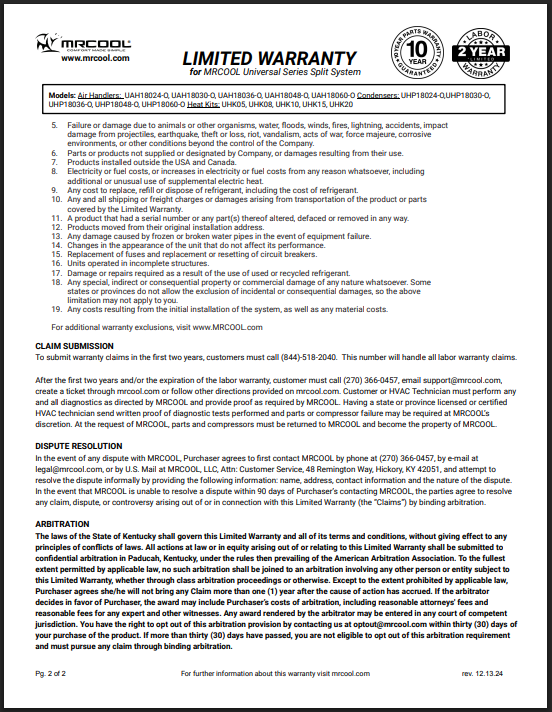

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit.
────────────────────────────────────────────
