Universal Series 24,000 BTU Air Handler

Sandra
Updated

NON DIY - Licensed HVAC Installation

UAH18024-O

Description

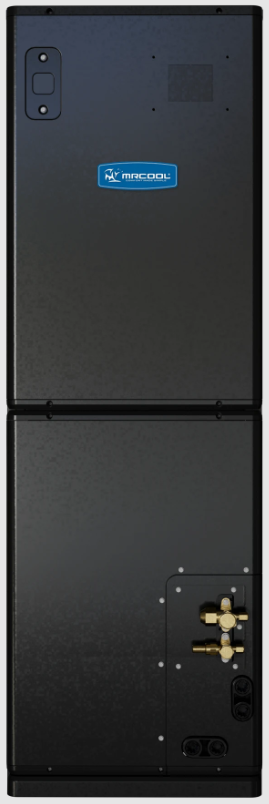

The MRCOOL® Universal® Series 24K Air Handler is built to deliver powerful, reliable, and energy-efficient comfort all year long. Whether you’re facing freezing winters or scorching summers, this compact unit works to maintain your ideal indoor temperature while helping reduce overall energy consumption and lower monthly utility costs. Designed with flexibility in mind, the 24K Air Handler supports upflow, downflow, and horizontal installations. Its slim profile allows for installation in a variety of spaces, including attics, closets, and crawlspaces.

The unit is compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately) and supports optional Universal® Series Heat Kits for enhanced performance during colder months. These heat kits provide additional heating capacity and emergency backup heat when needed, improving comfort and efficiency in extreme climates.

At the heart of the air handler is an M-shaped evaporator coil with a large surface area that improves airflow and maximizes heat exchange. Constructed from 100% aluminum, the coil offers excellent corrosion resistance for long-lasting durability. Despite its powerful performance, the unit operates at whisper-quiet sound levels, helping maintain a comfortable indoor environment without unnecessary noise.

Backed by a 10-year parts warranty and a 2-year limited labor warranty when installed by a licensed professional, the MRCOOL® Universal® 24K Air Handler is a dependable choice for homeowners seeking efficient, long-lasting HVAC performance.

Find the Brochure Here

────────────────────────────────────────────

Key Specs

  • Brand / Series: MRCOOL® Universal® R-454B

  • Model: UAH18024-O

  • Unit Type: Universal Series Air Handler

  • Capacity / Tonnage: 24,000 BTU (2 Ton)

  • Install Options / Mount Type: Multi-position (upflow, downflow, horizontal)

  • Voltage / Phase / Cycle: 115 / 208–230 V, Single Phase, 60 Hz

  • Refrigerant Type: R-454B

  • Line Set / Sizes: Max 164 ft, Liquid 3/8" / Suction 3/4"

  • Filter Type / Size: Replaceable, 12 x 20 x 1

  • Metering Device: EXV

  • Number of Speeds: 4

  • Noise Level: Low 33 dB / High 47.5 dB

  • Auxiliary Heater: Optional, sizes 5 kW / 8 kW / 10 kW / 15 kW

  • Warranty:

  • 10-year parts

  • 2-year limited labor

  • UL / CSA / ETL Listed: Yes

  • Dimensions (Net): 49.72"H x 14.49"W x 21.5"D

  • Weight (Net / Gross): 123 lbs / 154.76 lbs

  • Color: Dark Grey

────────────────────────────────────────────

Compatibility

Universal Series 24,000 BTU Heat Pump Inverter Condenser

Universal R-454B Heat Kits

5th Gen R-454B No Vac Line Sets 3/8" - 3/4"



Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support

────────────────────────────────────────────

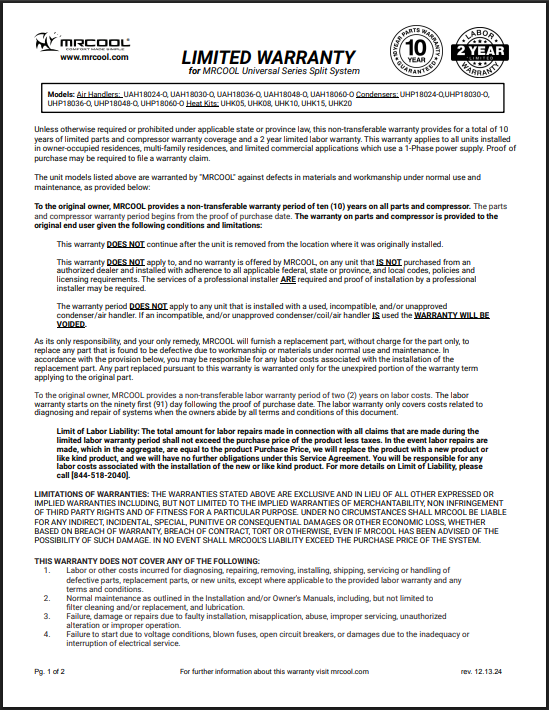

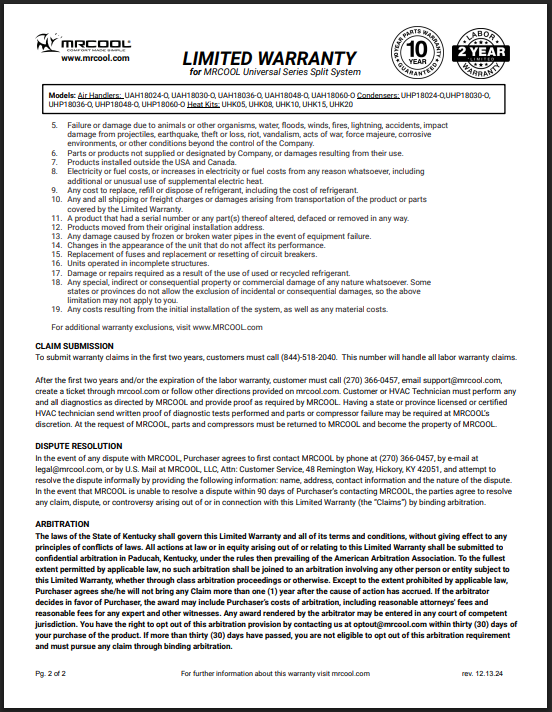

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit.



────────────────────────────────────────────
