Universal Series 60,000 BTU Air Handler

Sandra
Updated

NON DIY - Licensed HVAC Installation

UAH18060-O

Description

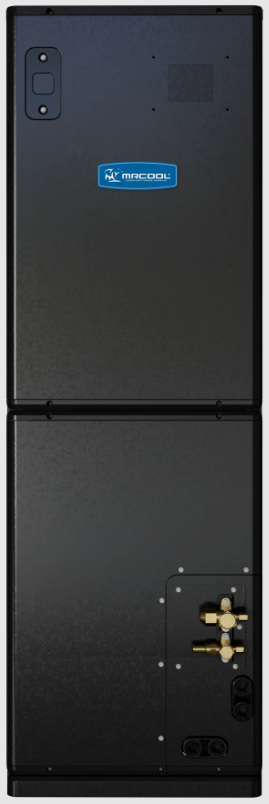

The MRCOOL® Universal® Series 60K Air Handler is built to deliver powerful, energy-efficient climate control for large residential spaces. No matter the season, it provides consistent airflow and dependable indoor comfort, making it an ideal solution for homeowners seeking high-capacity performance without sacrificing efficiency.

Designed with installation versatility in mind, this air handler supports vertical, horizontal, and downflow configurations. Its compact footprint allows for installation in closets, attics, basements, mechanical rooms, and other space-conscious locations.

The unit is compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately) and supports optional Universal® Series Heat Kits. These heat kits provide additional heating output when temperatures drop and serve as an emergency backup heat source.

Engineered for durability and quiet operation, the 60K Air Handler features an M-shaped evaporator coil that increases the heat exchange surface area, boosts airflow, and helps maintain system efficiency. Constructed from 100% aluminum, the coil is corrosion-resistant for long-term durability and reliability.

Quiet operation helps maintain a comfortable indoor environment without unnecessary noise.

Backed by a 10-year parts warranty and a 2-year limited labor warranty when installed by a licensed professional, the MRCOOL® Universal® Series 60K Air Handler delivers reliable, efficient, and long-lasting HVAC performance.

────────────────────────────────────────────

Key Specs

  • Brand: MRCOOL®

  • Series: Universal® R-454B

  • System Type: Universal Series Air Handler

  • Tonnage: 5 Ton (60,000 BTU)

  • Voltage: 115 / 208 / 230V, Single Phase, 60 Hz

  • Mount Type: Multi-Position (Upflow, Downflow, Horizontal)

  • Refrigerant Type: R-454B

  • Decibel Rating: 37–60 dBA

  • Number of Speeds: 4

  • Line Set Compatibility: MRCOOL® NO-VAC® Quick Connect® line set

  • Liquid Line Size: 3/8 in

  • Suction Line Size: 3/4 in

  • Filter Type: Replaceable

  • Filter Size: 20 x 20 x 1 in

  • Metering Device: EXV

  • Auxiliary Heater Options: 10kW, 15kW, 20kW (sold separately)

  • Construction: 100% Aluminum M-shaped Coil (corrosion-resistant)

  • Color: Dark Grey

  • Certifications: UL, CSA, and ETL Listed

  • Warranty: 10-Year Parts and 2-Year Limited Labor Warranty

  • Net (W x D x H): 21.5" x 21.5" x 55.94"

  • Net Weight: 188 lbs

  • Gross Weight: 238 lbs

────────────────────────────────────────────

Compatibility

Universal Series 60,000 BTU Heat Pump Inverter Condenser

Universal R-454B Heat Kits

5th Gen R-454B No Vac Line Sets 3/8" - 3/4"



Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support

────────────────────────────────────────────

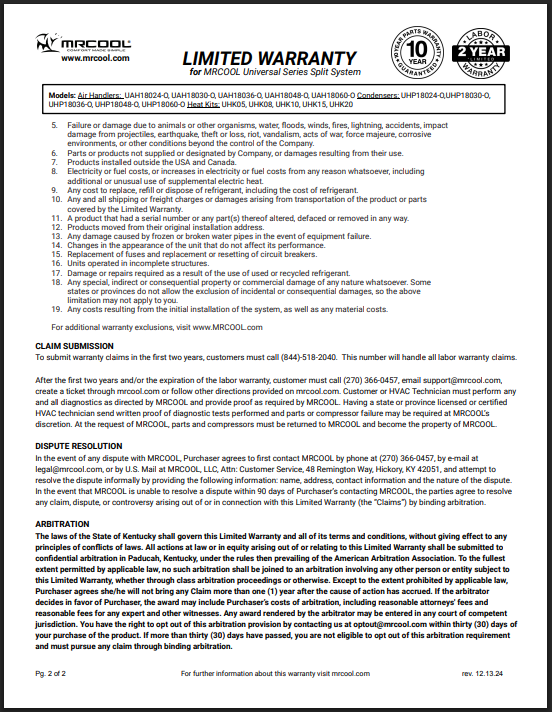

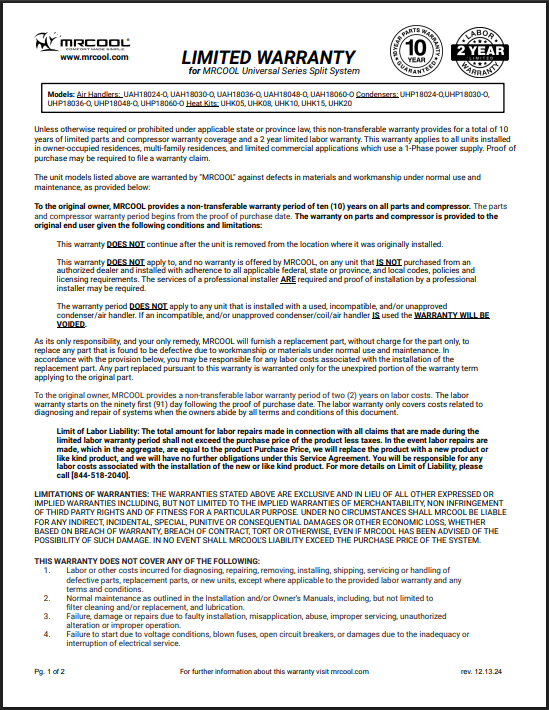

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit.



────────────────────────────────────────────
