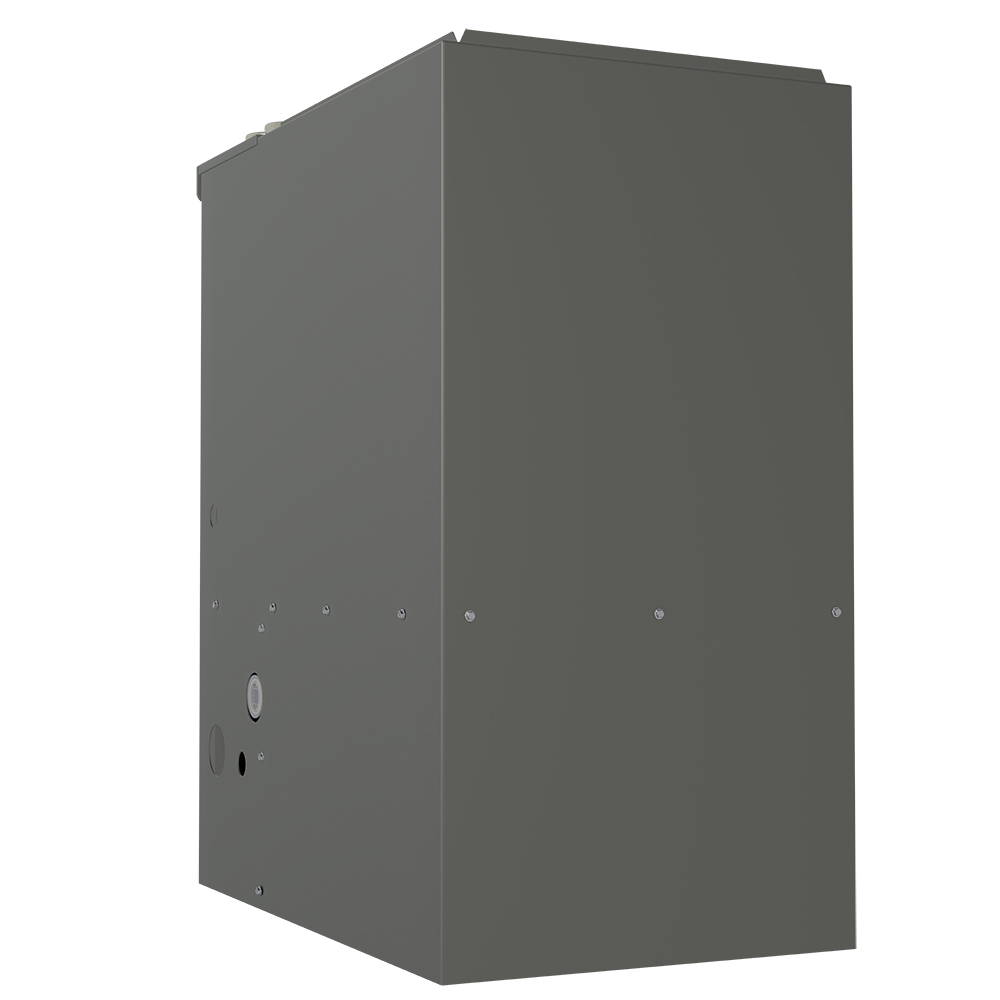

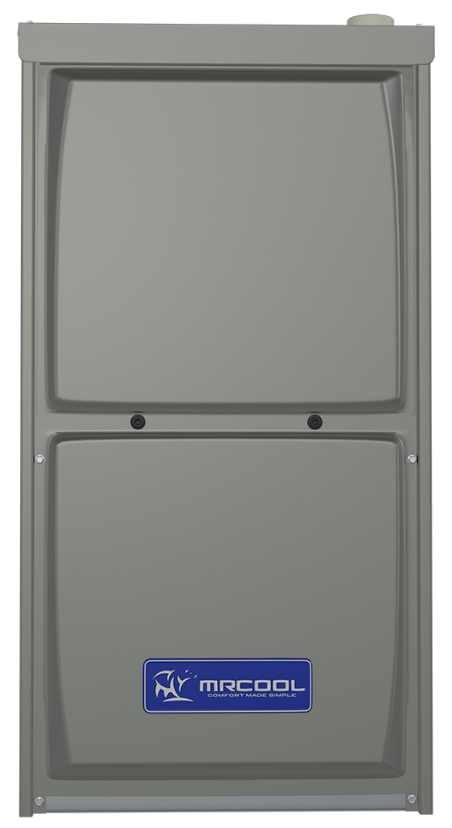

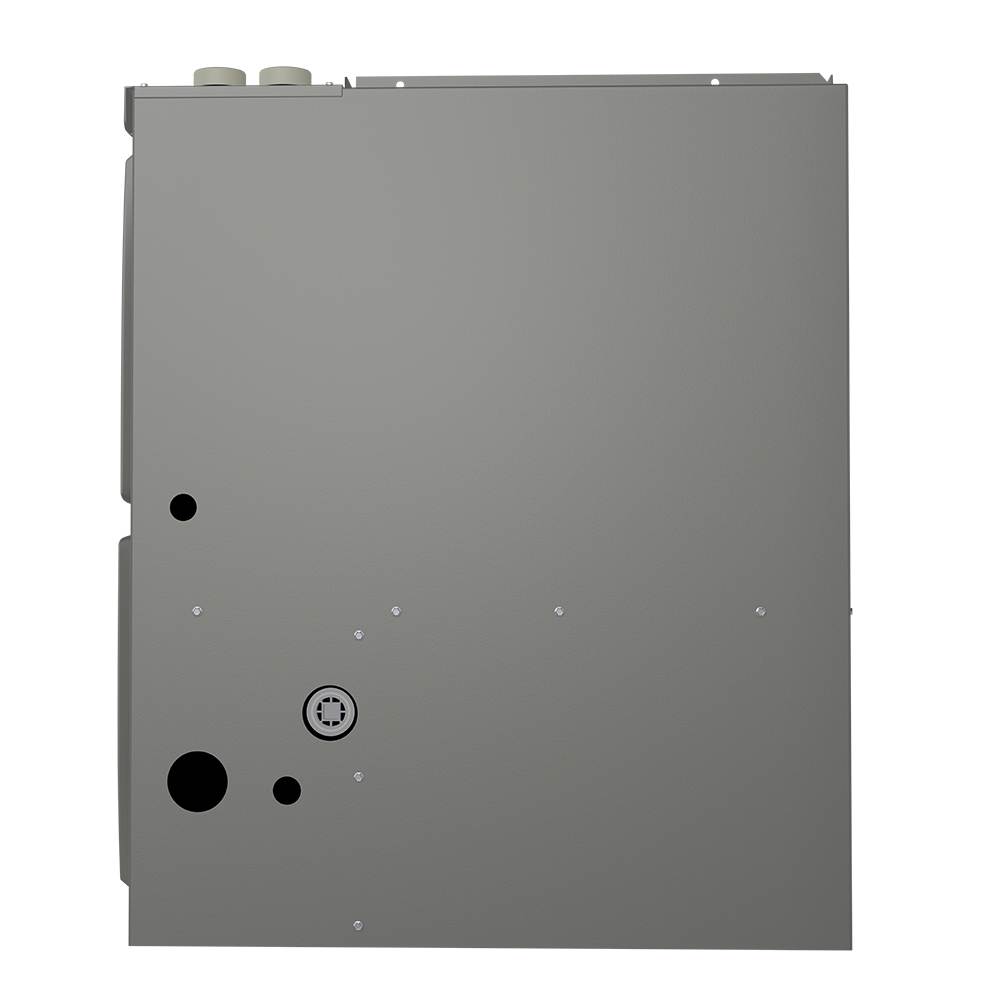

Signature Downflow 96% AFUE Furnace 70k - 120v

MGD96SE070B4XA

NON DIY - Licensed HVAC Installation

Description

Not only is the MRCOOL® Signature Series Single-Stage 96% AFUE 70k BTU able to provide effective heating for your home in an easy-to-install downflow configuration, it is also quiet-running and energy-efficient. With a 96% AFUE, this unit will help you save on utility bills. This is thanks in part to the multi-speed high-efficiency blower motor. You can also experience enhanced cooling SEER ratings when applied with properly matched cooling equipment. You can expect long-term operation thanks to the durable build and finish, and an aluminized steel primary heat exchanger with crimped, non-welded construction. The aluminized steel in-shot burners and durable silicon nitride ignitor help ensure smooth ignition. You can expect quick whole-home heating with the single-stage gas valve. Installation is easy with the unit’s compact 33-inch design and standardized widths for easy coil fit. It can be easily vented with PVC pipe and offers left or right utility connections. It is design certified for direct and non-direct vent applications, and you have the opportunity to transition to liquid propane with an optional LP kit. Maintenance is easy for your HVAC technician courtesy of the easily removable slide-out blower design. This furnace is proudly backed by a lifetime heat exchanger warranty and 10-year parts warranty.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs  (Performance Specs Click Here)

• Tonnage: 4 Ton
• Fuel Type: Gas (Optional LP Conversion Kit Available)
• Blower Motor: Multi-Speed High-Efficiency
• Ignition System: Durable Silicon Nitride Ignitor
• Heat Exchanger: Aluminized Steel, Crimped Non-Welded Construction
• Gas Valve: Single-Stage
• Venting: Direct and Non-Direct Vent (PVC Compatible)
• Utility Connections: Left or Right
• Voltage: 120V / 1-Phase / 60Hz
• Max Fuse Breaker: 15A
• Full Load Amps: 8.4A
• Gas Connection Size: 1/2 in
• Installation: Compact 33” Design, Standardized Width for Easy Coil Fit
• Maintenance Features: Slide-Out Blower for Easy Service
• Certifications: AHRI Certified, ETL & ETLC Approved

─────────────────────────────────────────────────────────────

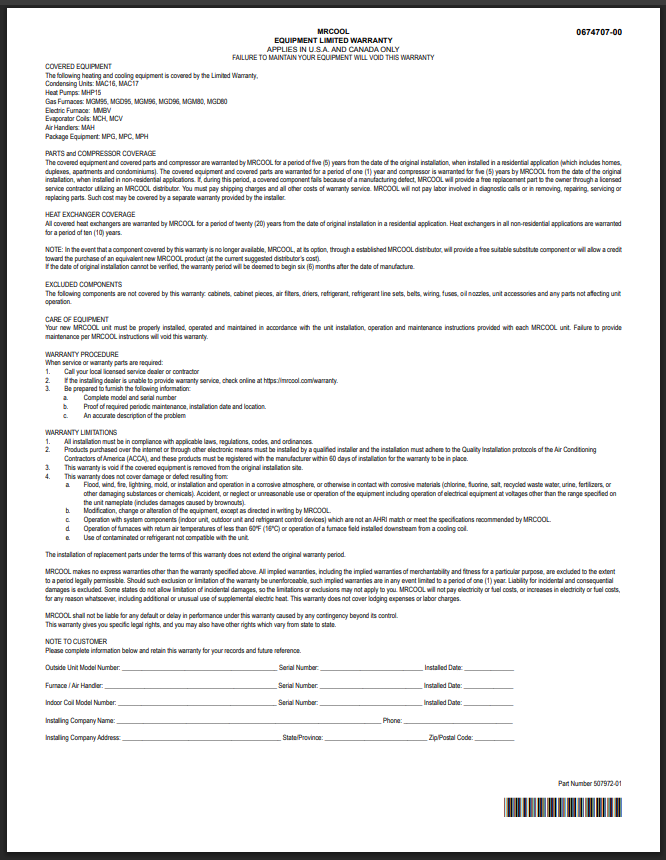

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.

─────────────────────────────────────────────────────────────

Quick Links

• Image 1
• Image 2
• Image 3
• Video
• Warranty Registration
• Warranty Information
• Rebate Center
• Install Manual
• AHRI Certs

─────────────────────────────────────────────────────────────
