MCAESHV9T3621BA
NON DIY - Licensed HVAC Installation
Description

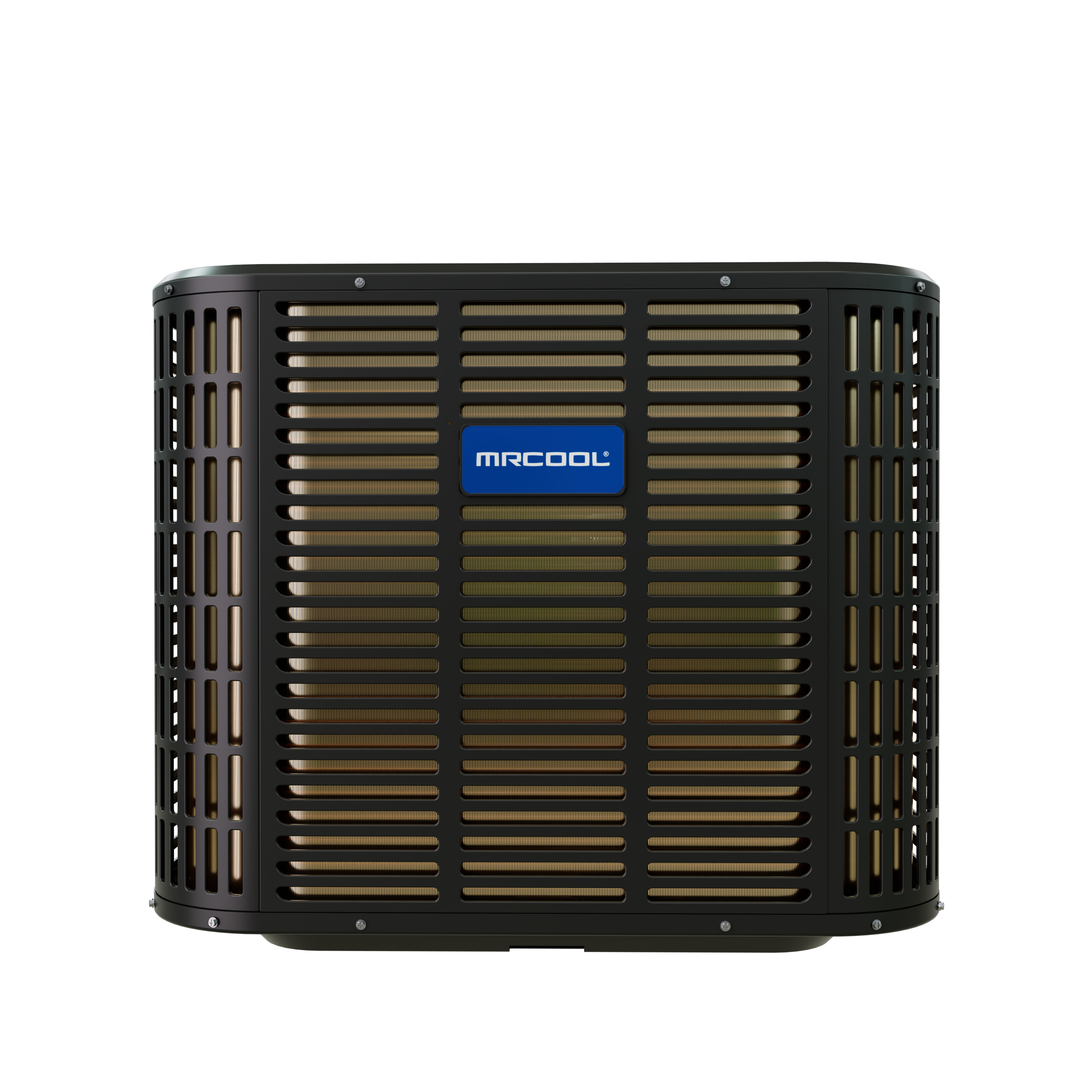

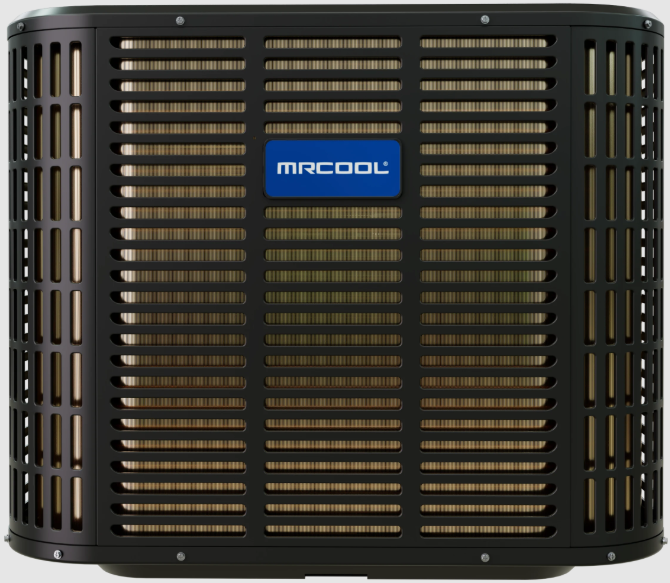

The MRCOOL® Signature Series TruInverter™ 36K Heat Pump Condenser delivers powerful, energy-efficient comfort year-round, making it an ideal solution for homeowners seeking consistent performance, lower energy costs, and long-term reliability. With efficiency ratings of 19 SEER2 for cooling and 9 HSPF2-4 for heating, it maintains precise indoor temperatures while using less electricity than traditional fixed-speed systems.
At the core of the system is TruInverter™ variable-speed technology, which continuously adjusts output to match real-time demand. This eliminates temperature swings, improves humidity control, reduces system wear, and delivers quieter operation—enhancing comfort while extending equipment life.
To further streamline the setup process, this unit is designed to work with MRCOOL® No-Vac® Quick Connect® line sets, which are pre-charged and eliminate the need for vacuuming or evacuation. This specialized compatibility significantly reduces installation time and removes the need for expensive specialized tools, making the process faster and more reliable for both professionals and DIY enthusiasts.
The TruInverter™ 36K is factory-charged with R-454B refrigerant, a next-generation, environmentally responsible option that provides excellent heat-transfer performance with significantly lower global warming potential. Factory charging also simplifies installation, reduces labor time, and minimizes refrigerant handling errors.

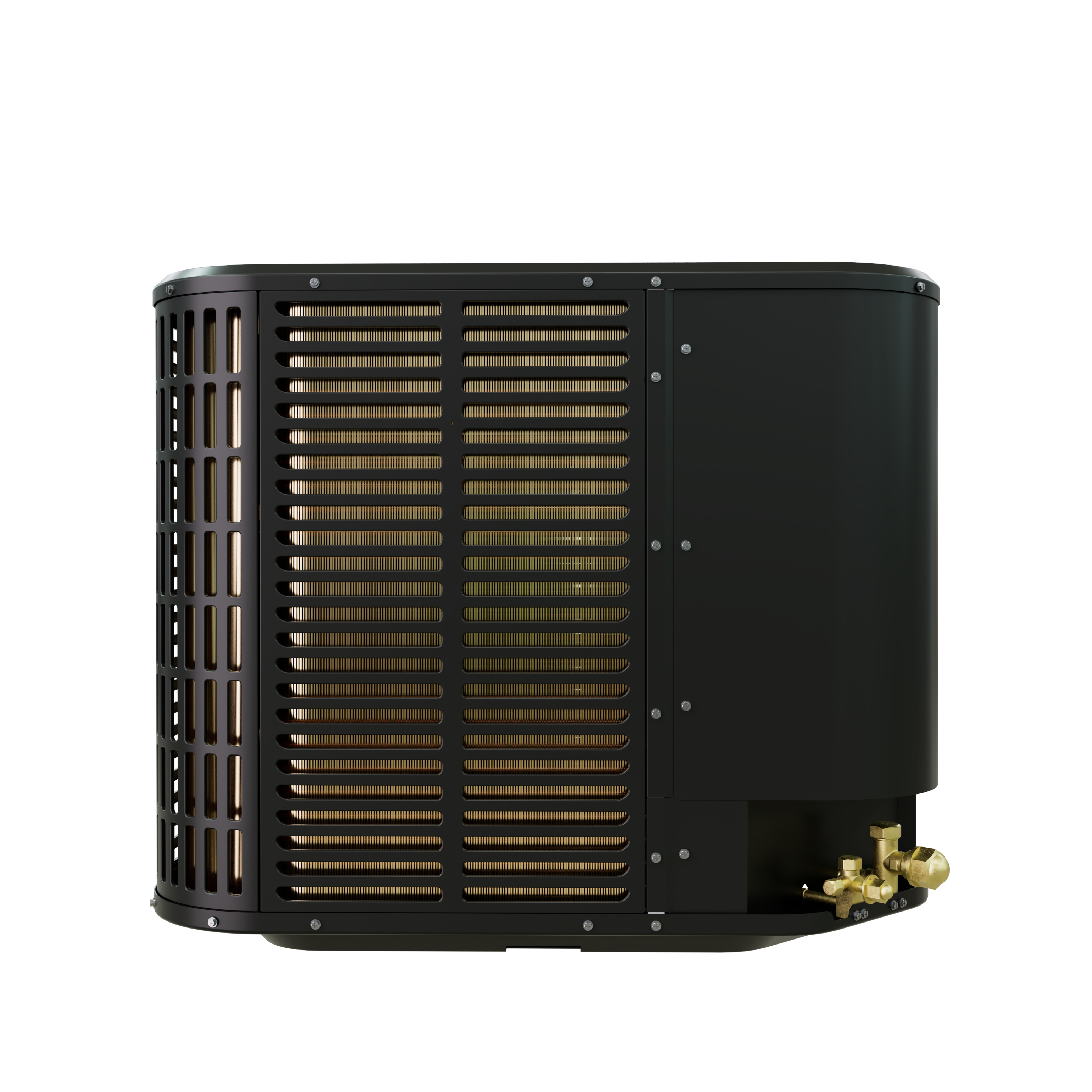

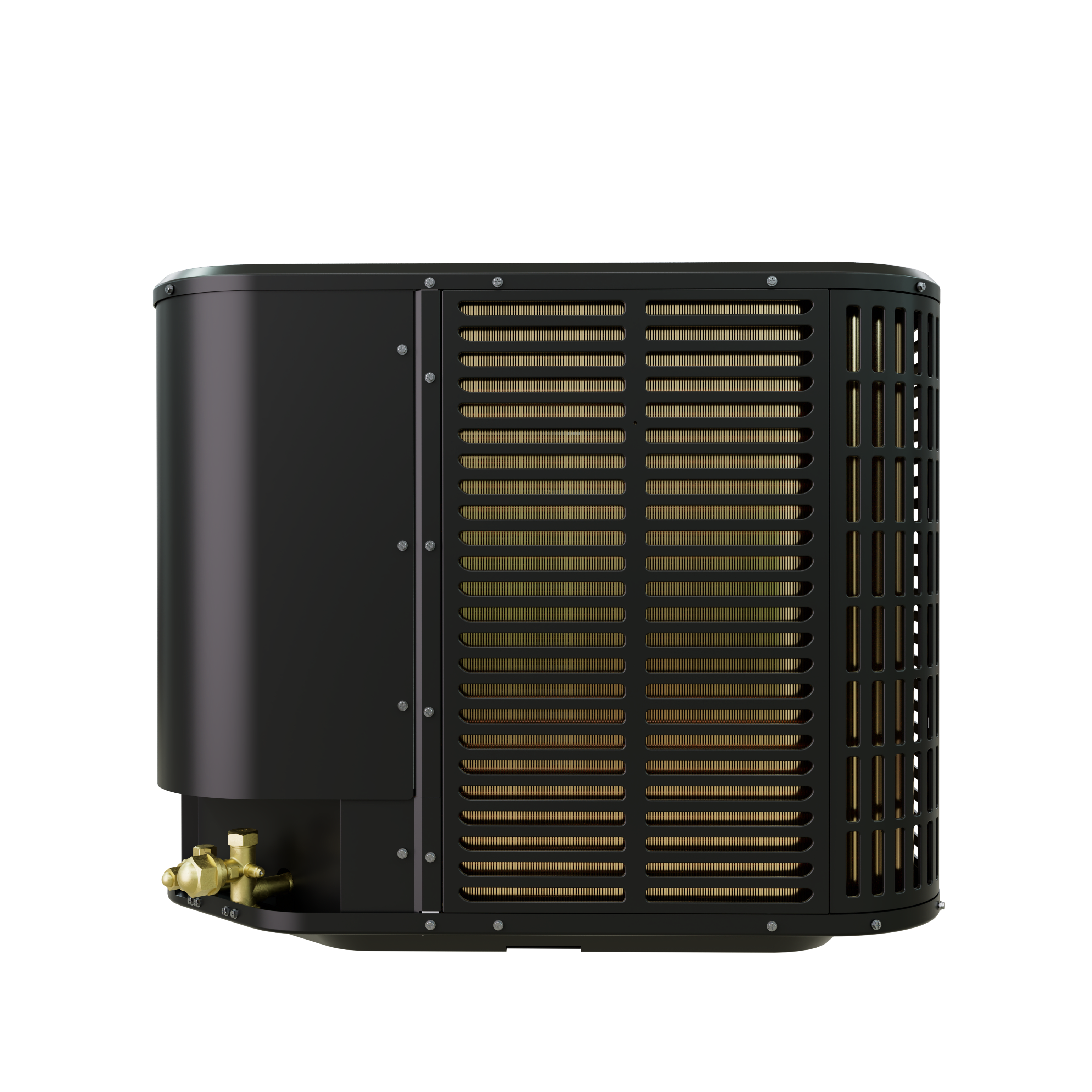

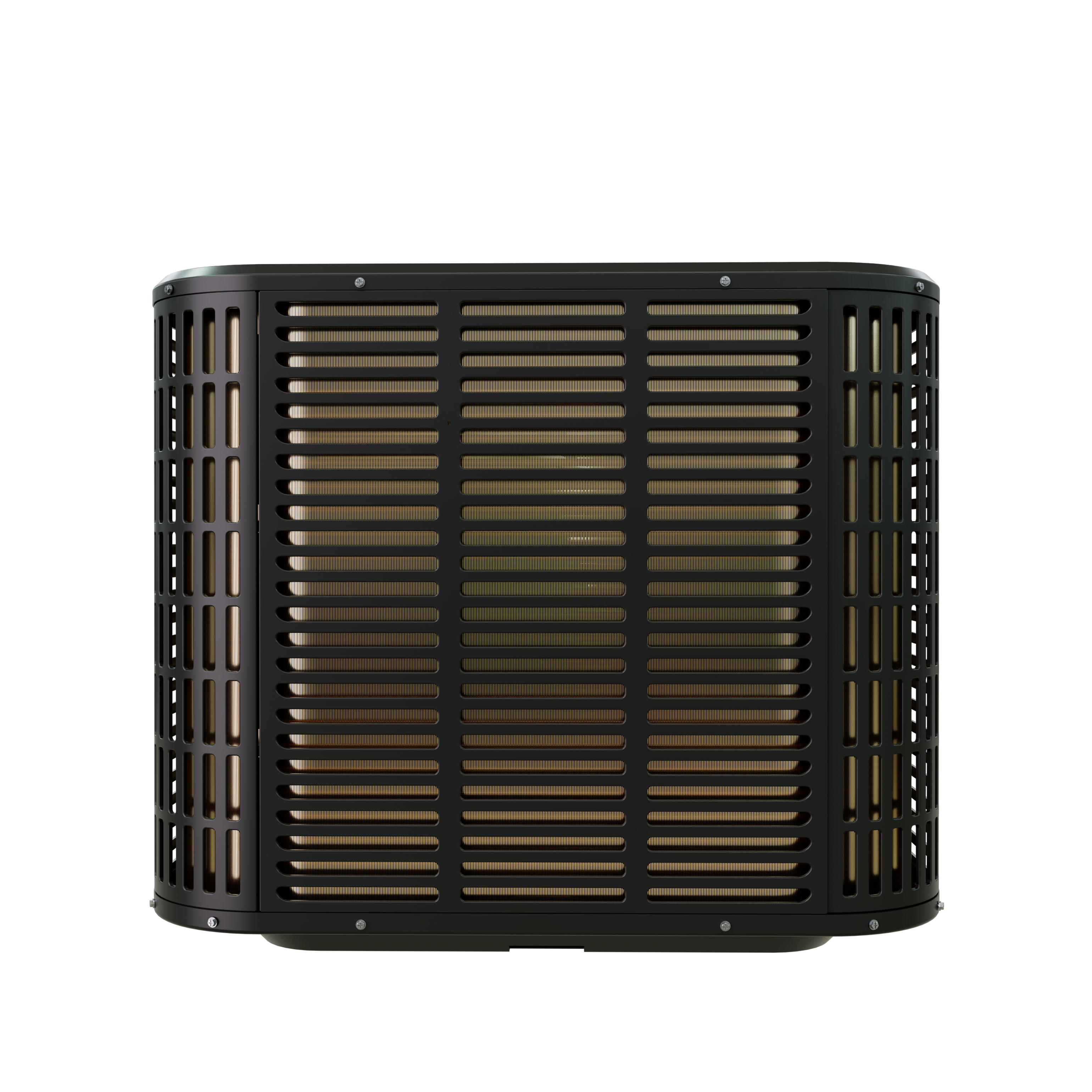

Designed for quiet operation, the unit runs at just 68 decibels, comparable to a household dishwasher, with a sound-dampening top that reduces noise without restricting airflow. Rugged construction includes a steel louver coil guard and wire fan discharge grille to protect against debris and harsh weather, while a service-friendly layout makes installation and maintenance easier.
For added peace of mind, the system is backed by a 10-year limited parts warranty and a limited lifetime compressor warranty. Combining inverter efficiency, quiet performance, durable construction, and strong warranty protection, the MRCOOL® TruInverter™ 36K is a smart, long-term investment in dependable home comfort.
Find the Brochure HERE
────────────────────────────────────────────
Key Specs
SEER2: 19
EER2: 10
COP 47: 3.5
HSPF2-4: 9
TONNAGE: 3
COOLING CAPACITY (BTU): 34,000
HEATING CAPACITY (BTU): 36,000
VOLTAGE (V): 208/230
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 35
MIN CIRCUIT AMPACITY (A): 22
COLOR: Gunmetal
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 100.53
DECIBEL RATING (DBA): 68
INVERTER: Yes
MIN AMBIENT COOL (F): 5
MIN AMBIENT HEAT (F): -5
MAX LINESET LENGTH (FT): 100
LIQUID LINE SIZE: 3/8
SUCTION LINE SIZE: 3/4
COMPRESSOR MOTOR TYPE: Variable Rotary
CONDENSER FAN MOTOR TYPE: DC
METERING DEVICE: EEV
BASE WARRANTY: 10 Year Parts, Lifetime Compressor
BASE PARTS WARRANTY: 10 Year
NET DEPTH (IN): 29.125
NET HEIGHT (IN): 24.94
NET WIDTH (IN): 29.215
NET WEIGHT (LBS): 146
GROSS DEPTH (IN): 30.25
GROSS HEIGHT (IN): 31.25
GROSS WIDTH (IN): 30.25
GROSS WEIGHT (LBS): 176
────────────────────────────────────────────
Compatibility
MCAEAMPVT36D21BA - 3 Ton TruInverter™ Air Handler
No Vac Universal Line Sets 3/8"-3/4"
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support
────────────────────────────────────────────

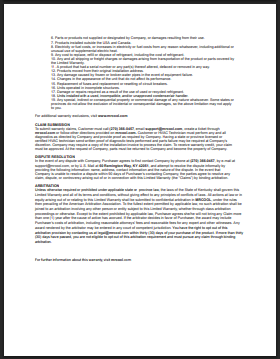

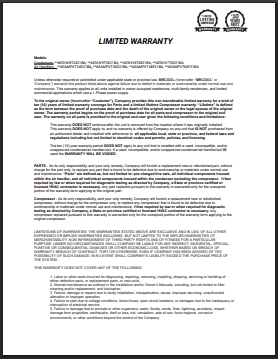

Warranty
The MRCOOL® Warranty provides comprehensive coverage for your unit.
────────────────────────────────────────────
