MCAEAMPVT24D21BA
NON DIY - Licensed HVAC Installation
Description

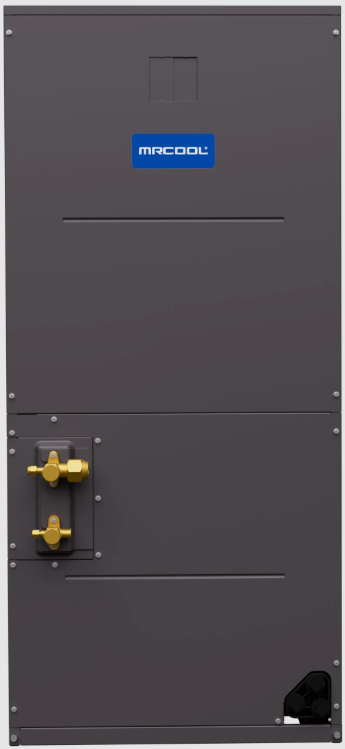

The MRCOOL® Signature Series TruInverter™ 24K BTU 230V Multi-Position Air Handler is engineered to deliver dependable, high-efficiency comfort for homes and light-duty applications. Built with advanced TruInverter™ variable-speed technology and next-generation R-454B refrigerant, this system provides smooth, precise temperature control while using significantly less energy than conventional fixed-speed systems. The result is quieter operation, improved humidity control, and lower monthly energy costs.
Designed with maximum flexibility in mind, this air handler supports upflow, downflow, and horizontal installation, making it easy to fit into attics, crawl spaces, closets, or mechanical rooms. Its compact, modern cabinet allows it to install where bulkier systems won’t without sacrificing airflow or performance. When paired with a compatible TruInverter™ heat pump condenser, the system delivers reliable heating and cooling across all seasons.
Installation is simplified through compatibility with MRCOOL® No-Vac® Quick Connect® line sets, which come factory-charged with R-454B refrigerant. This eliminates the need for vacuum pumps, refrigerant handling, or specialized HVAC tools, reducing labor time and installation risk while ensuring a clean, accurate setup.
For everyday control, the air handler works with most third-party smart thermostats, allowing homeowners to choose their preferred app-based, voice-activated, or automated control system. Optional TruInverter™ electric heat kits provide added heating support for cold climates or emergency backup.
Backed by a limited lifetime compressor warranty and a 10-year parts warranty, the MRCOOL® TruInverter™ 24K offers long-term reliability, flexible installation, and energy-saving performance.
Find the Brochure HERE
────────────────────────────────────────────
Key Specs
CFM: 850
TONNAGE: 2
VOLTAGE (V): 208/230
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 15
MIN CIRCUIT AMPACITY (A): 5
MOUNT TYPE: Mulit-Position
COLOR: Gunmetal
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 3.52
DECIBEL RATING (DBA): 57
DRAIN CONNECTION SIZE: 3/4
MAX LINESET LENGTH (FT): 100
LIQUID LINE SIZE: 3/8
SUCTION LINE SIZE: 3/4
BLOWER MOTOR TYPE: DC
BLOWER MOTOR HP: 1/2
BLOWER MOTOR SPEEDS: 5
METERING DEVICE: TXV
AUXILIARY HEATER INCLUDED: No
AUXILIARY HEATER AVAILABLE: Yes
AUXILIARY HEATER SIZES: 5kW, 10kW
BASE WARRANTY: 10 Year Parts
BASE PARTS WARRANTY: 10 Year
NET DEPTH (IN): 21
NET HEIGHT (IN): 46.5
NET WIDTH (IN): 21
NET WEIGHT (LBS): 126.8
GROSS DEPTH (IN): 26.33
GROSS HEIGHT (IN): 52.5
GROSS WIDTH (IN): 22.75
GROSS WEIGHT (LBS): 162
────────────────────────────────────────────
Compatibility
No Vac Universal Line Sets 3/8"-3/4"
2 Ton 18 SEER2 TruInverter™ Heat Pump Condenser - MCAESHV8T2421BA
5kW Heat Kit with Circuit Breaker for TruInverter™ series MCAEHFD5X1BA
10kW Heat Kit with Circuit Breaker for TruInverter™ series MCAEHFD10X1BA
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support
────────────────────────────────────────────

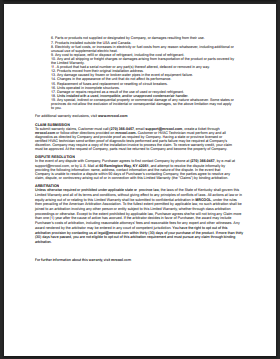

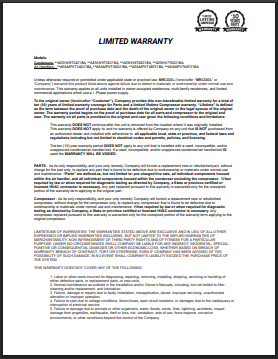

Warranty
The MRCOOL® Warranty provides comprehensive coverage for your unit.
────────────────────────────────────────────
