MCAEAMPVT60F21BA
NON DIY - Licensed HVAC Installation
Description

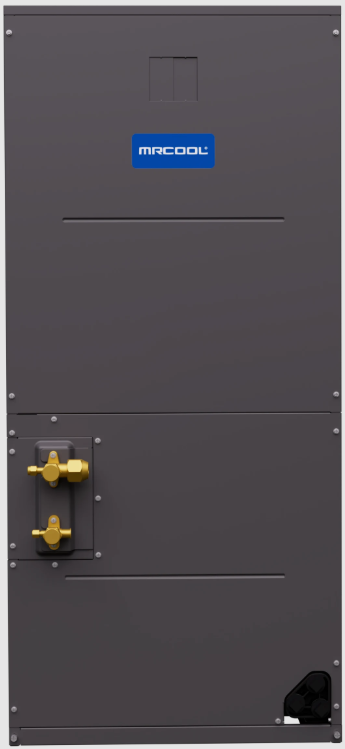

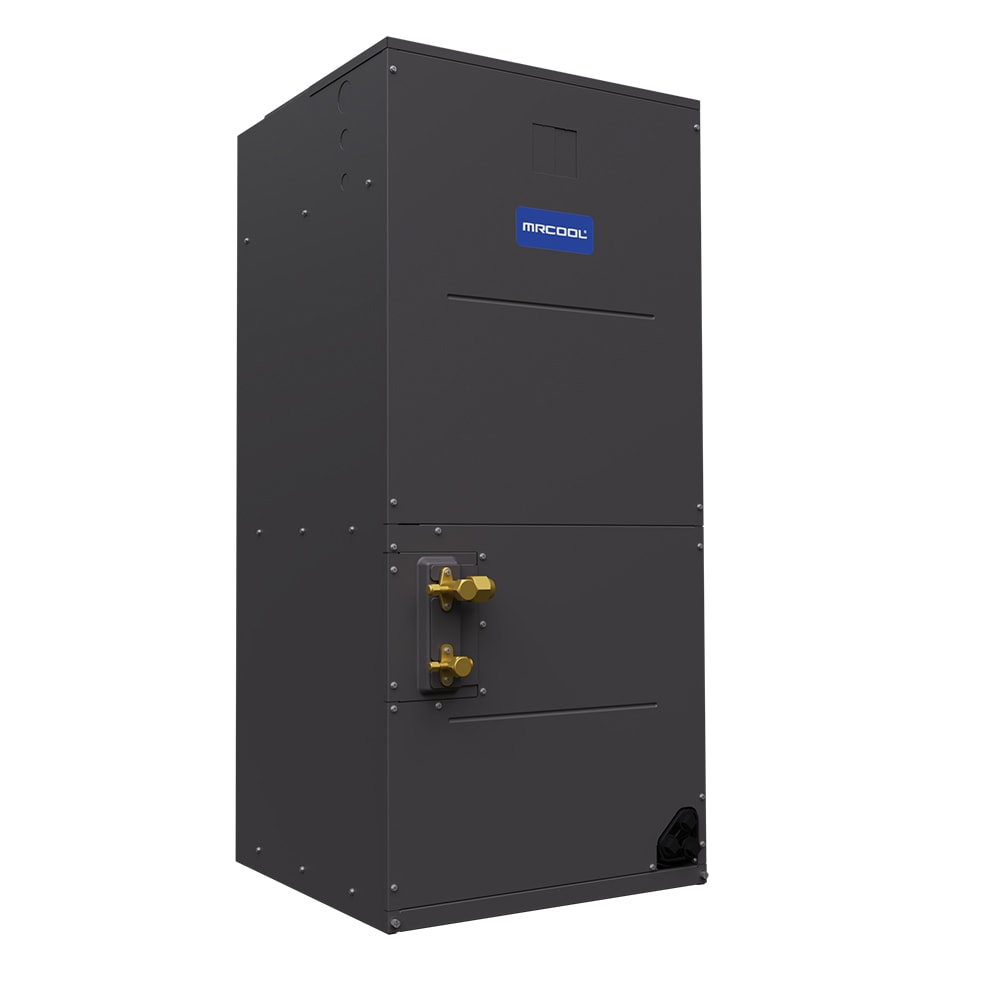

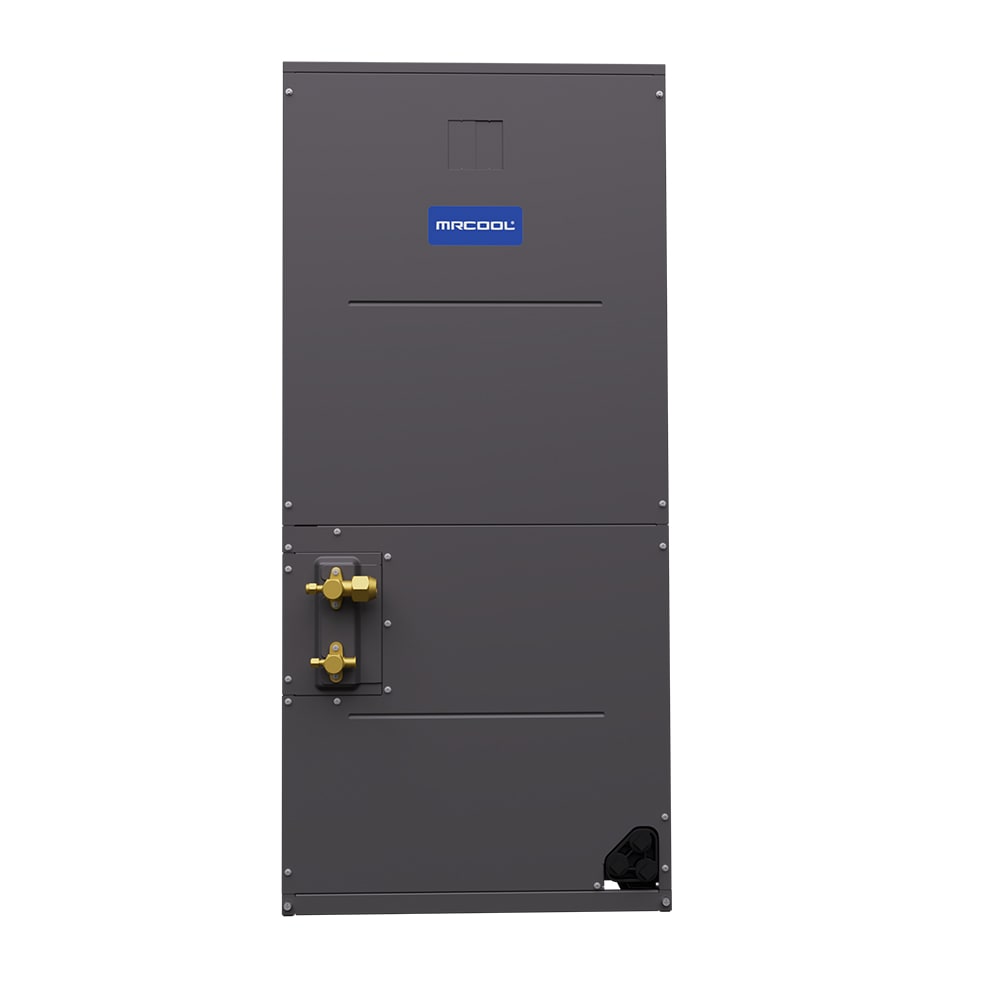

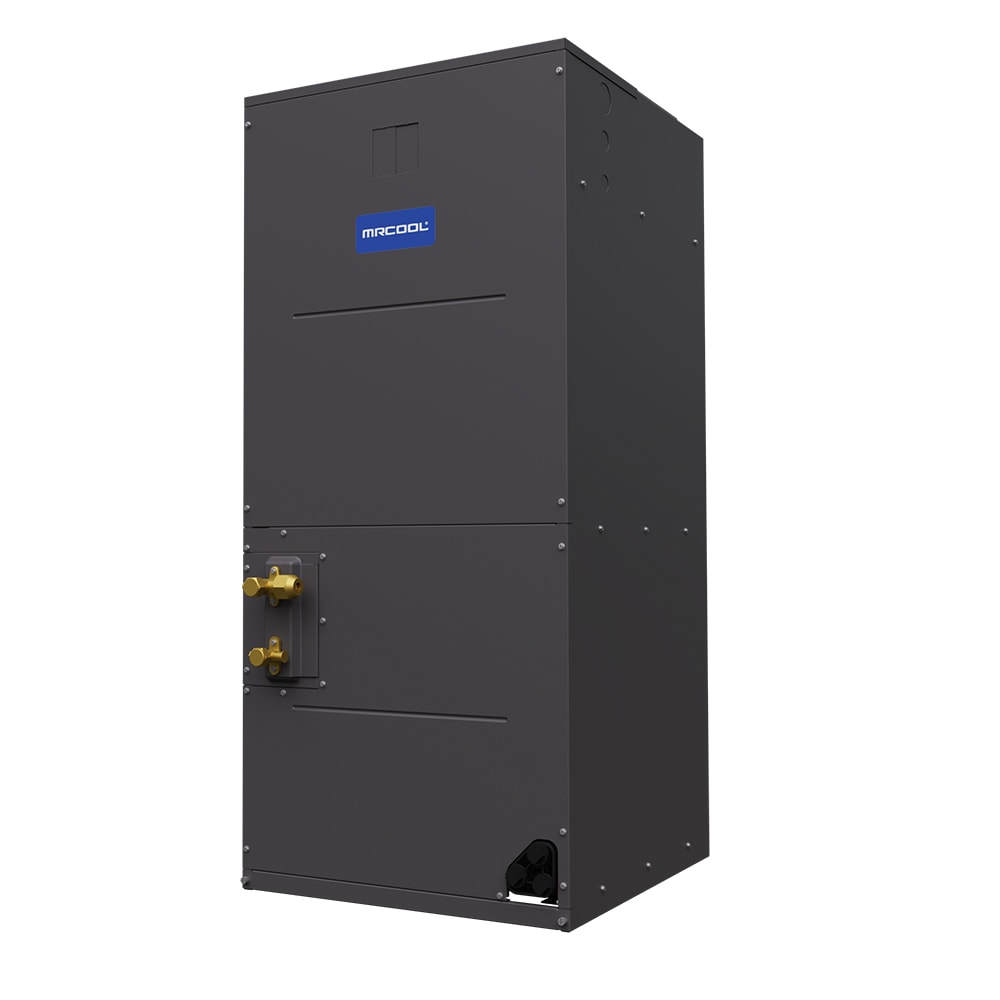

The MRCOOL® Signature Series TruInverter™ 60K BTU 230V Multi-Position Air Handler delivers powerful, high-efficiency comfort for large homes and high-demand applications. Using TruInverter™ variable-speed technology, the system continuously adjusts output to match real-time demand, eliminating temperature swings while reducing energy use, noise, and system wear.
Built around next-generation R-454B refrigerant, the unit delivers strong heating and cooling performance with a significantly lower environmental impact, helping meet modern efficiency standards while lowering long-term operating costs.
The air handler supports upflow, downflow, and horizontal installation, allowing it to fit easily in attics, closets, basements, crawl spaces, or mechanical rooms. Its compact cabinet provides full-capacity airflow without the bulk of older systems. When paired with a compatible MRCOOL® TruInverter™ Heat Pump Condenser, it delivers reliable, high-output comfort in every season.
Installation is simplified with MRCOOL® No-Vac® Quick Connect® line sets, which arrive factory-charged with R-454B refrigerant—eliminating vacuum pumps, refrigerant handling, and specialized tools for a faster, cleaner install.
The system works with most third-party smart thermostats for flexible app-based or voice-controlled operation. Optional TruInverter™ electric heat kits provide supplemental or emergency heating in colder climates.
Backed by a limited lifetime compressor warranty and a 10-year parts warranty, the TruInverter™ 60K delivers efficient, durable, and future-ready whole-home comfort.
Find the Brochure HERE
────────────────────────────────────────────
Key Specs
CFM: 1700
TONNAGE: 5
VOLTAGE (V): 208/230
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 15
MIN CIRCUIT AMPACITY (A): 7
MOUNT TYPE: Mulit-Position
COLOR: Gunmetal
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 3.52
DECIBEL RATING (DBA): 62
DRAIN CONNECTION SIZE: 3/4
MAX LINESET LENGTH (FT): 100
LIQUID LINE SIZE: 3/8
SUCTION LINE SIZE: 7/8
BLOWER MOTOR TYPE: DC
BLOWER MOTOR HP: 3/4
BLOWER MOTOR SPEEDS: 5
METERING DEVICE: TXV
AUXILIARY HEATER INCLUDED: No
AUXILIARY HEATER AVAILABLE: Yes
AUXILIARY HEATER SIZES: 5kW, 10kW, 15kW, 20kW
BASE WARRANTY: 10 Year Parts
BASE PARTS WARRANTY: 10 Year
NET DEPTH (IN): 21
NET HEIGHT (IN): 56
NET WIDTH (IN): 24.5
NET WEIGHT (LBS): 161
GROSS DEPTH (IN): 27
GROSS HEIGHT (IN): 62
GROSS WIDTH (IN): 28.66
GROSS WEIGHT (LBS): 204
────────────────────────────────────────────
Compatibility
5 Ton 17 SEER2 TruInverter™ Heat Pump Condenser - MCAESHV7T6021BA
5kW Heat Kit with Circuit Breaker for TruInverter™ series MCAEHFD5X1BA
10kW Heat Kit with Circuit Breaker for TruInverter™ series MCAEHFD10X1BA
15kW Heat Kit with Circuit Breaker for TruInverter™ series MCAEHFD15X1BA
20kW Heat Kit with Circuit Breaker for TruInverter™ series MCAEHFD20X1BA
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support
────────────────────────────────────────────

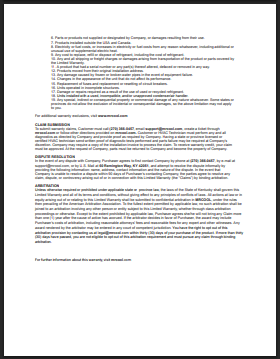

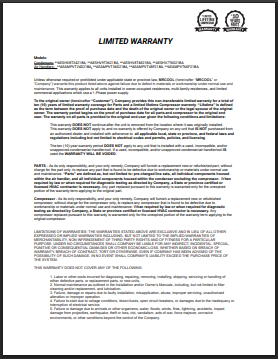

Warranty
The MRCOOL® Warranty provides comprehensive coverage for your unit.
────────────────────────────────────────────
