Signature Upflow Coil 30k - MCVP30A – MRCOOL

MCVP30ANPA

NON DIY - Licensed HVAC Installation

Description

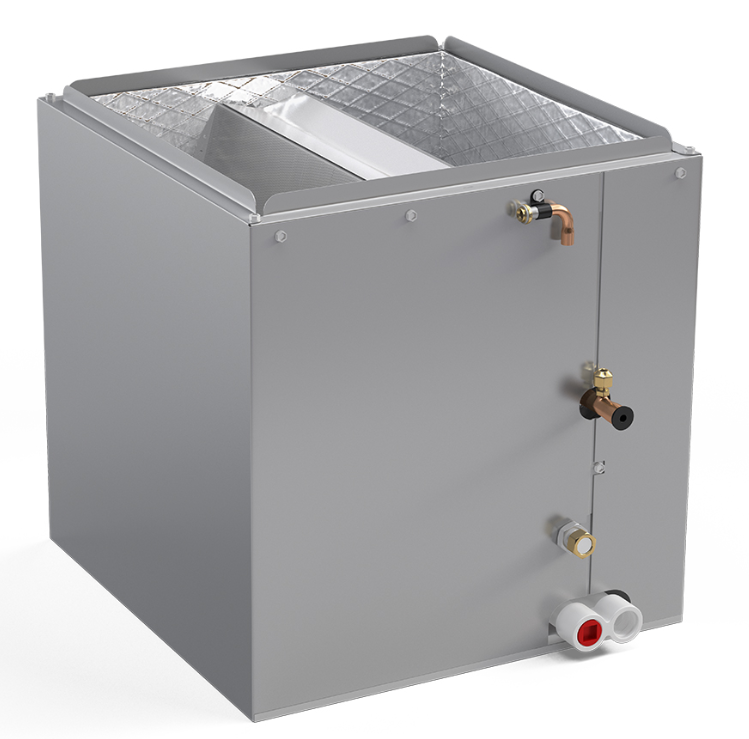

This is a brand new 2.5-ton upflow cased evaporator coil designed for use with R-410A refrigerant. Built for efficiency and durability, it’s the ideal solution for heat pumps and air conditioners, allowing for quick and flexible installation.

When properly paired with a MRCOOL® Signature Series condenser and either a gas furnace or modular blower, this coil can help achieve efficiency ratings of up to 16 SEER.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs (Performance Specs Click Here)

Interlocking door assemblies and snug line seal grommets to minimize air leakage
All units UL Listed and AHRI Certified
One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections
Foil-face insulation for easy cleaning
All drain pans are compatible with UV lights
Two dual drains on front of coil for install flexibility of drain lines around furnace vent and utility connections
Superior service access to components, with tubing located at door split and foil-face insulation
10-Year Parts Limited Warranty
Aluminum tubing, hairpins, distributors, and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines
Tubing located at door split for easy coil service or cleaning
Tightly sealed, painted steel cabinet with wall-to-wall insulation to ensure <2% air leakage
