Signature Horizontal Coil 24k - MCHP24B

MCHP24BNPA

NON DIY - Licensed HVAC Installation

Description

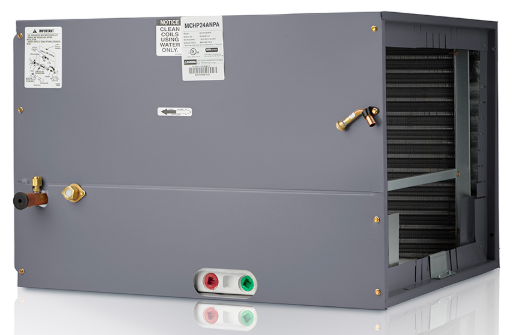

This is a brand new 2 ton, R-410A refrigerant, horizontal cased evaporator coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs  (Performance Specs Click Here)

• Interlocking door assemblies and snug line sealgrommets to minimize air leakage
• All units UL Listed and AHRI Certified
• One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
• Insulated galvanized steel case with durable embossed finish
• Foil-face insulation for easy cleaning
• All drain pans are compatible with UV lights
• Removable top panels for easy service or cleaning
• Superior service access to components, with tubing located at door split and foil-face insulation
• 10-Year Parts Limited Warranty
• Aluminum tubing, hairpins, distributors, and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines
• Tubing located at door split for easy coil service or cleaning
• Refrigerant lines extend outside of the cabinet for easy connection

─────────────────────────────────────────────────────────────

Compatibility

Signature Modular Blower - MMBV08

Signature Modular Blower - MMBV12

Signature Modular Blower - MMBV16

Signature Modular Blower - MMBV20

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

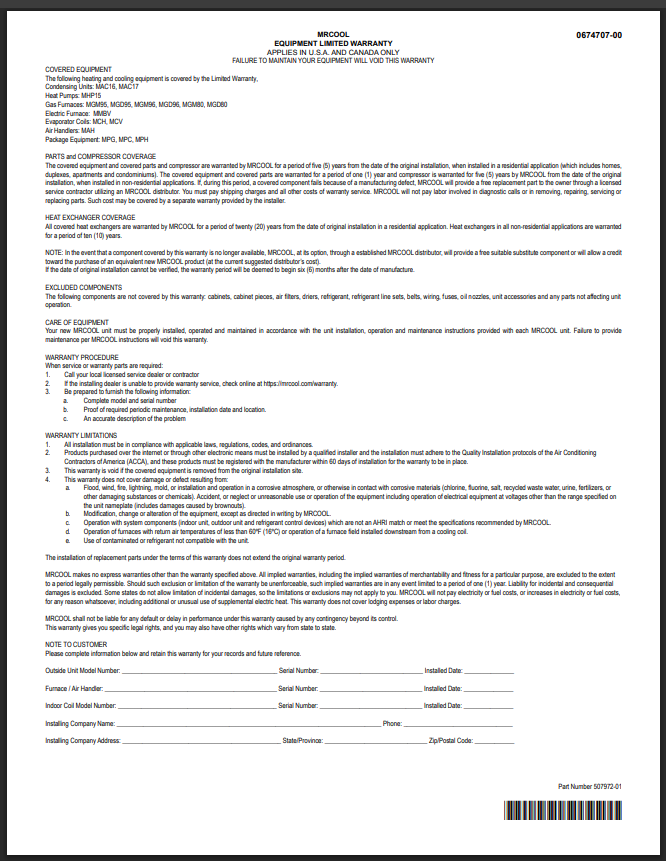

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional, offering a warranty of 10 years on all parts if registered, 5 years if not.

─────────────────────────────────────────────────────────────
