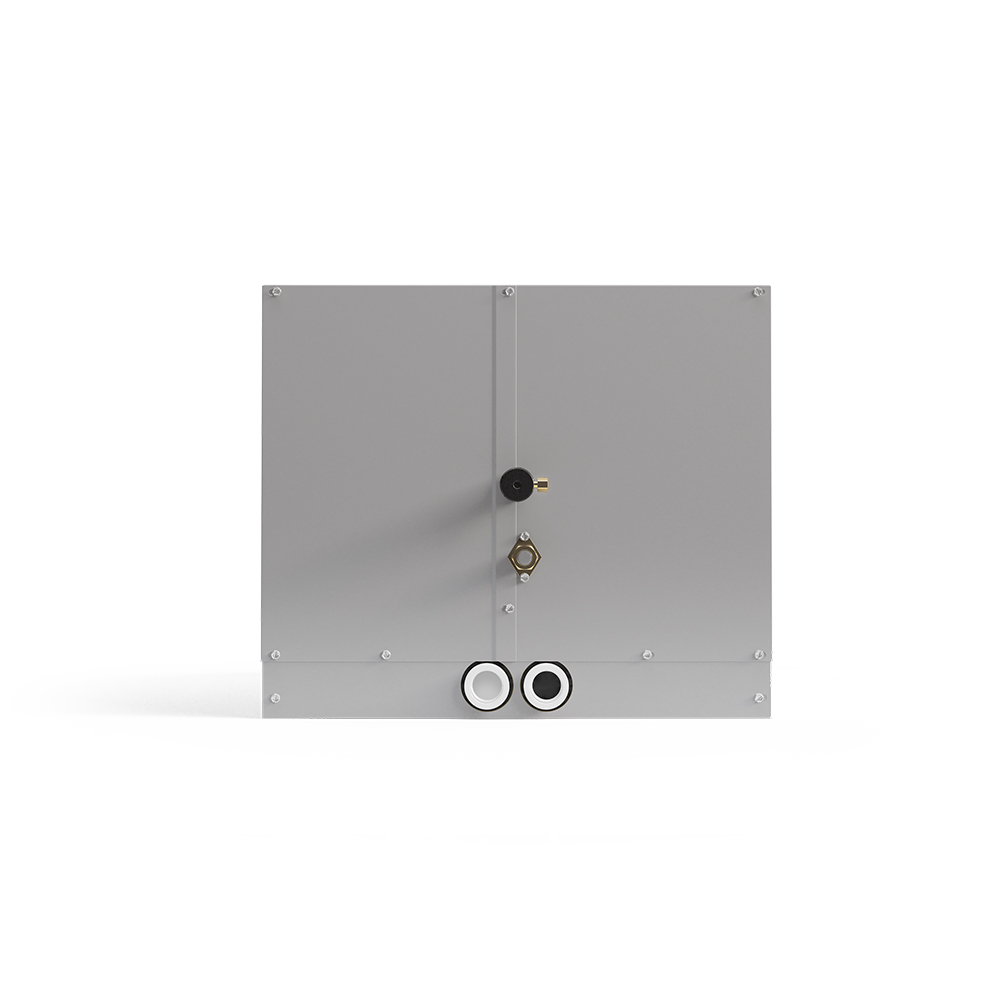

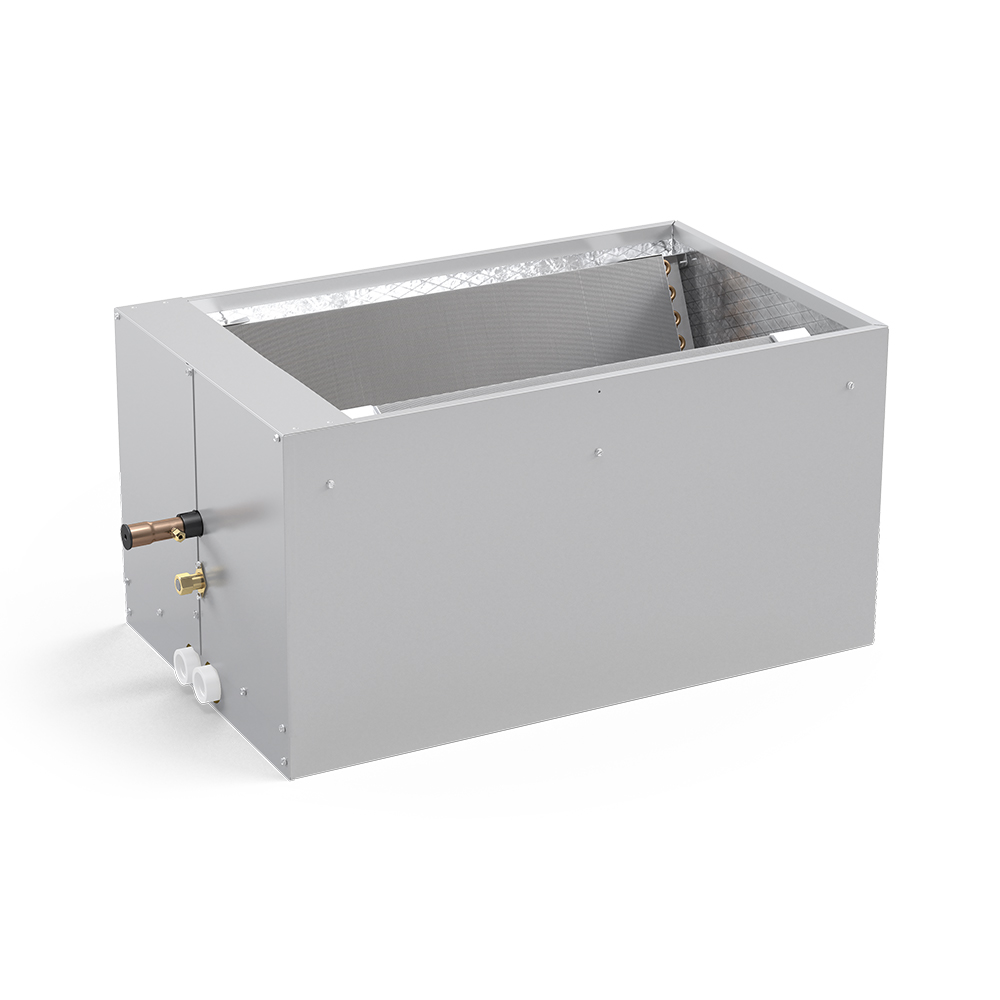

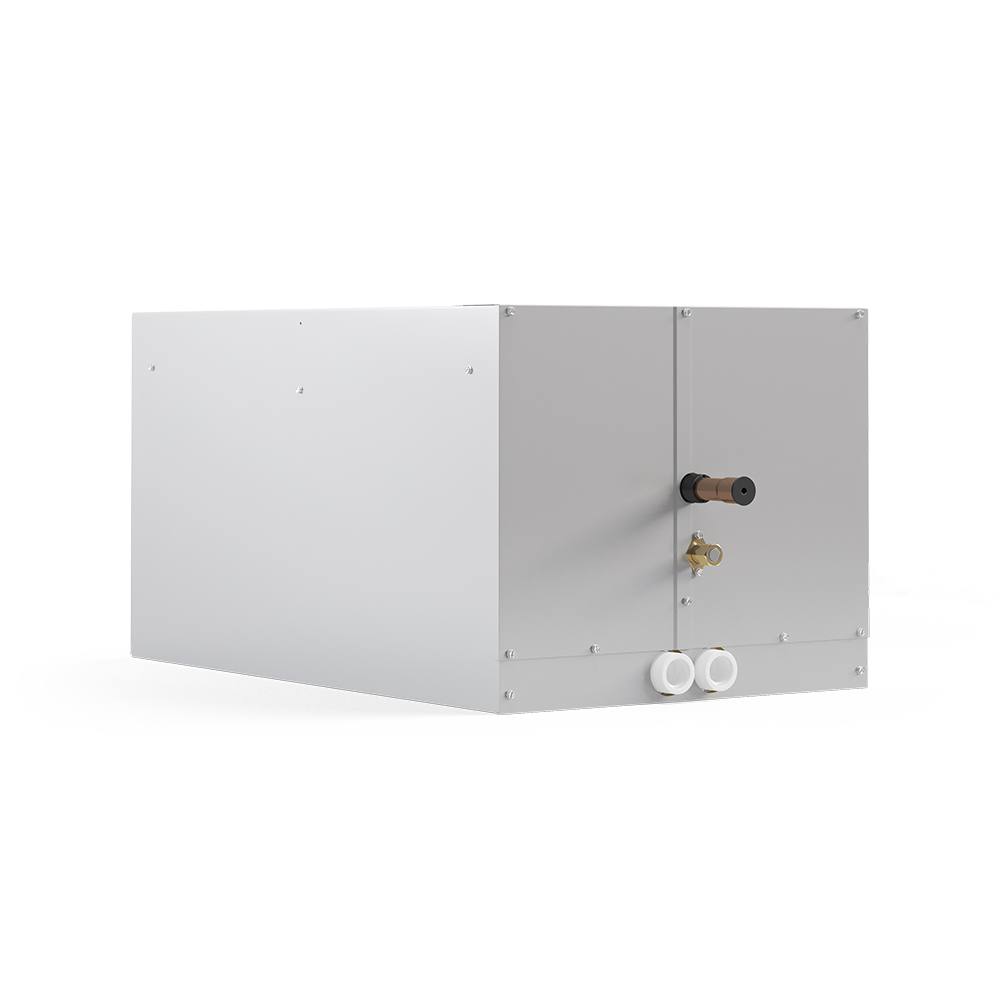

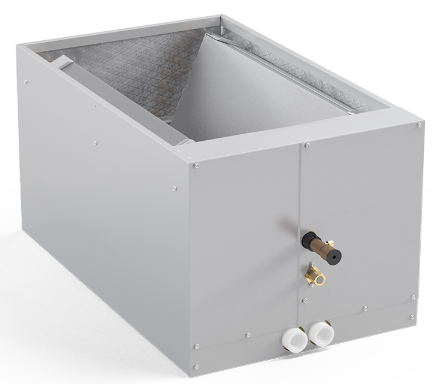

Signature Downflow Coil 24K - MCDP0024A

MCDP0024ANPA

NON DIY - Licensed HVAC Installation

Description

This is a brand new 2 ton, R-410A refrigerant, downflow cased evaporator coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs  (Performance Specs Click Here)

• Interlocking door assemblies and snug line seal grommets to minimize air leakage
• UL Listed and AHRI Certified for quality assurance
• Low water retention drain pan to reduce mold and mildew growth
• Heavy-gauge steel cabinet for optimal furnace support—no additional bracing required
• Foil-face insulation for easy cleaning
• UV light-compatible drain pans for enhanced sanitation
• Removable cabinet panels for easy coil service
• Superior service access to components, with tubing located at the door split and foil-face insulation
• 10-Year Parts Limited Warranty for long-term reliability
• Aluminum tubing, hairpins, distributors, and header tubes, with copper refrigerant connections for easy brazing
• Tubing located at door split for effortless coil service and cleaning

─────────────────────────────────────────────────────────────

Compatibility

Signature Modular Blower - MMBV08

Signature Modular Blower - MMBV12

Signature Modular Blower - MMBV16

Signature Modular Blower - MMBV20

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

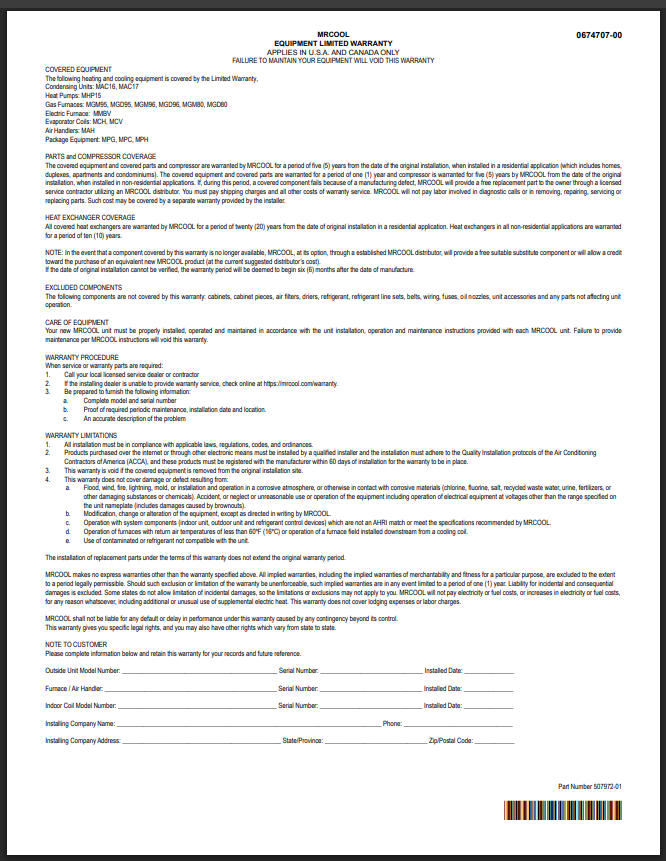

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.

─────────────────────────────────────────────────────────────
