Signature Downflow Coil 48k - MCDP0048C – MRCOOL

MCDP0048CNPA

NON DIY - Licensed HVAC Installation

Description

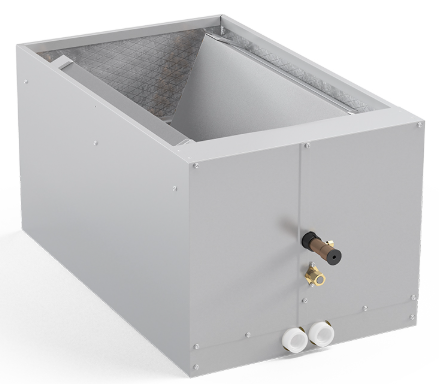

This is a brand new 4 ton, R-410A refrigerant, downflow cased evaporator coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs (Performance Specs Click Here)

Interlocking door assemblies and snug line seal grommets to minimize air leakage
All units UL Listed and AHRI Certified
One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
Heavy-gauge steel constructed cabinet for optimal support of the furnace, no need for additional bracing or structure
Foil-face insulation for easy cleaning
All drain pans are compatible with UV lights
Removable cabinet panels for easy coil service
Superior service access to components, with tubing located at door split and foil-face insulation

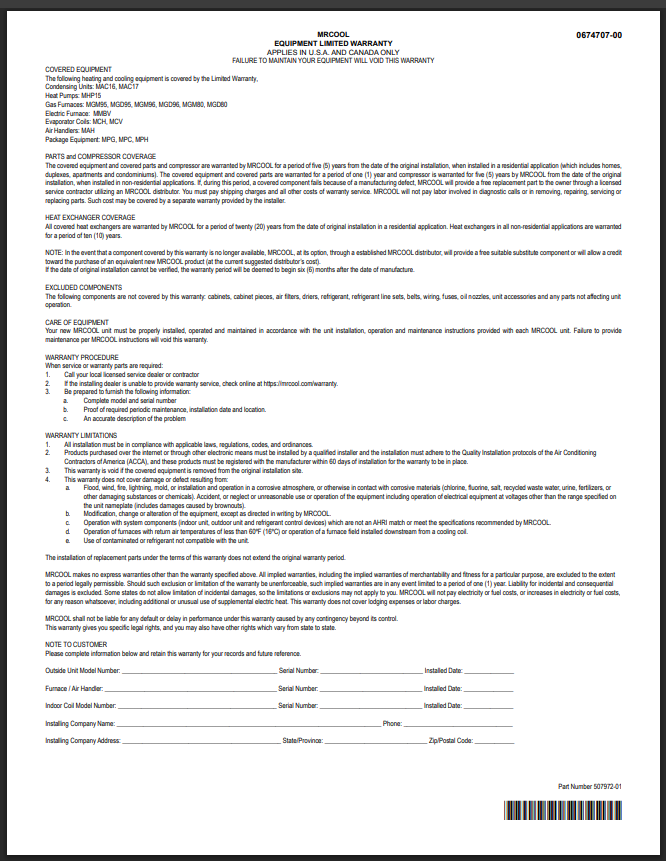

10-Year Parts Limited Warranty
Aluminum tubing, hairpins, distributors, and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines
Tubing located at door split for easy coil service or cleaning
