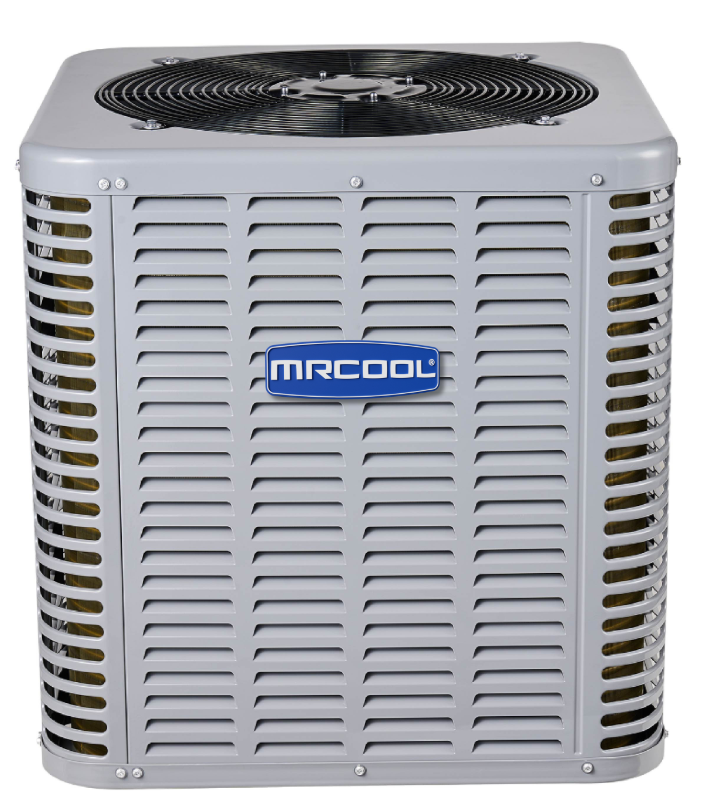

Signature Split System Air Conditioner 48k 4 Ton R-454B 230V

MCAESAS4T4821AA

NON DIY - Licensed HVAC Installation

Description

The MRCOOL® Signature Series 48k Cooling Only Condenser offers efficient, dependable cooling designed to meet the needs of modern homeowners. With a 13.8 SEER2 and 11.2 EER2 rating, this unit delivers comfort while helping lower energy bills, making it a reliable choice for both replacements and new installations.

Pre-charged with R-454B refrigerant, the unit meets current environmental standards while maintaining strong cooling capabilities. At its core is a reliable scroll compressor, supported by inner-groove copper tubing for efficient heat exchange and improved thermal conductivity.

Though powerful, the system operates quietly at 65 decibels, about as loud as a dishwasher or normal conversation, making it ideal for residential settings. A sound-dampening top further reduces operating noise. Steel louver coil guard and wire fan discharge grille protect internal components from debris, impacts, and harsh weather.

Compact in size and equipped with user-friendly service features like sweat connection valves and a convenient gauge port, installation and maintenance are straightforward. Backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, the MRCOOL® Signature Series 48k Cooling Only Condenser is a strong, smart choice for year-round cooling comfort.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs

• Cooling capacity: 48k BTU

• Efficiency ratings: 13.8 SEER2 / 11.2 EER2

• Refrigerant: Pre-charged R-454B

• Compressor: Scroll

• Tubing: Inner-groove copper

• Noise level: 65 dB with sound-dampening top

• Durability features: Steel louver coil guard, wire fan discharge grille

• Service features: Sweat connection valves, convenient gauge port

• Design: Compact for flexible placement

• Warranty: 10-year limited parts / limited lifetime compressor

─────────────────────────────────────────────────────────────

Compatibility

Signature Series R-454B Multi-Position Air Handler

Signature Series R-454B Stud Mount Air Handler

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

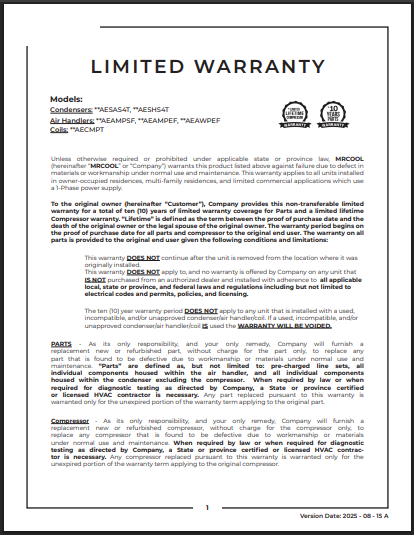

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.

─────────────────────────────────────────────────────────────
