DIY 12k 4th Gen E-Star Complete System - 115v

Sandra
Updated

DIY-12-HP-WM-115C25

Description

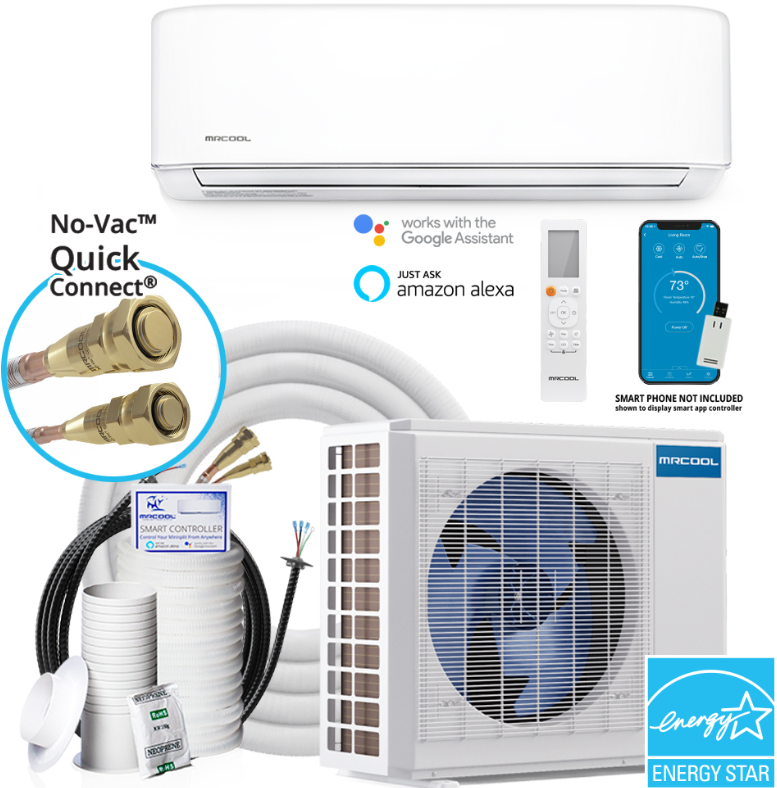

Introducing the latest in home comfort technology: the 4th Generation MRCOOL® DIY 12K BTU, 22 SEER Ductless Heat Pump System. This powerful single-zone system is capable of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also features quick connectors that require no special tools, equipment, or training for installation. The MRCOOL DIY system includes many features that set it apart from its competitors. The first of which is its ability to achieve an outstanding 22 SEER efficiency rating, earning it Energy Star certification. This system offers multiple operating modes to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also includes the Follow Me® function, which adjusts the room temperature based on the temperature read by the handheld remote control. The DIY system also offers the convenience of remote operation via smartphone through the Smart HVAC app. The MRCOOL mini split is the only system on the market to offer a limited lifetime compressor warranty, giving you unparalleled peace of mind.



Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs  (Performance Specs Click Here)

  • Up to 22.5 SEER2: High energy efficiency for reduced utility bills.
  • Gold Fin® condenser: Corrosion-resistant design, perfect for coastal living, ensuring long-term durability.
  • Variable-speed DC inverter compressor technology: Cuts operating costs with enhanced energy efficiency.
  • R-410A environmentally friendly refrigerant: Eco-friendly cooling solution.
  • Line set size: 1/4" - 1/2" for efficient refrigerant flow.
  • Warranty coverage:
    • Standard 7-year compressor warranty
    • Standard 5-year parts warranty
    • Option to register for a limited lifetime compressor warranty

─────────────────────────────────────────────────────────────

Compatibility

DIY Pre-Charged Line Sets 1/4"-1/2"

Line Guards

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only





Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

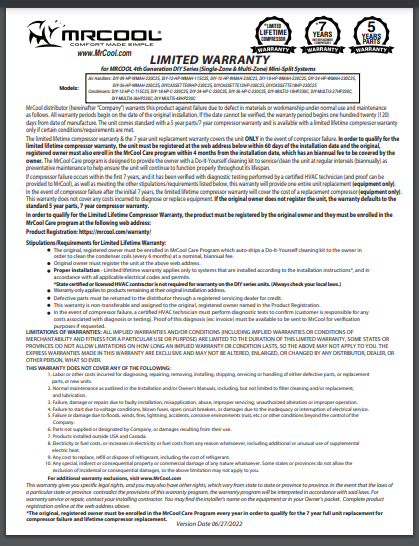

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit, even with DIY self-installation.

─────────────────────────────────────────────────────────────
