DIY® Select 1st Gen 24K BTU Air Handler - 230V

Sandra
Updated

  DIYS-24-HP-WMAH-230A13-O



Description

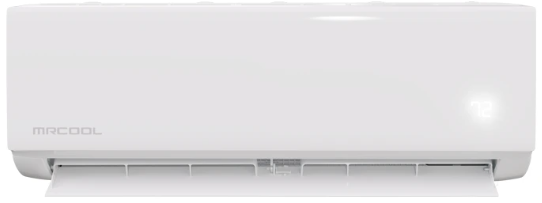

The MRCOOL® DIY® Select 24K BTU 230V Ductless Mini Split Heat Pump Air Handler provides efficient dependable heating and cooling for spaces up to 1,050 sq ft. Ideal for living rooms open concept areas large basements and bonus rooms it delivers consistent year round comfort while helping reduce energy usage and operating costs.

Engineered as part of the MRCOOL® DIY® lineup this unit is designed for true do it yourself installation. The compatible Quick Connect® line set is factory pre charged with environmentally friendly R 454B refrigerant, eliminating the need for vacuum pumps or refrigerant handling. Additionally the DIYPRO® cable replaces traditional electrical conduit simplifying installation while protecting wiring from moisture pests and everyday wear.

Comfort control is simple and flexible using the included wireless remote or the MRCOOL® Comfort app which allows you to adjust temperatures set schedules and monitor energy usage from anywhere. Voice control compatibility with Amazon Alexa and Google Assistant adds hands free convenience.

Features like Dry Mode Sleep Mode Auto Mode and programmable scheduling enhance comfort while improving efficiency. A Gold Fin® condenser coating provides added corrosion resistance for long term durability even in humid or coastal environments.

The MRCOOL® DIY® Select 24K includes a 2 year compressor warranty and a 1 year parts warranty.



Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs

  • Tonnage: 2
  • Voltage (V): 208/230
  • Phase: 1
  • Cycle: 60
  • Max Fuse Breaker (A): 15
  • Min Circuit Ampacity (A): 3
  • Max Coverage Area: 1,050 sq. ft.
  • Zone Capacity: 1
  • Refrigerant Type: R-454B
  • Decibel Rating (Low): 21.5 dBA
  • Decibel Rating (High): 51.5 dBA
  • Liquid Line Size: 3/8 in
  • Suction Line Size: 5/8 in
  • Blower Motor Type: DC
  • Blower Motor RPM: 1100 / 940 / 780
  • Filter Type: Reusable
  • Smart Features: WiFi / App Compatible (iOS & Android)
  • Controls: Adjustable thermostat, fan only, sleep mode, auto cool, remote included
  • Warranty: 1 year parts, 1 year remote
  • Safety / Compliance: Prop 65 warning applies
  • Electrical Notes: Contains electronics, chemicals, compressed gas
  • Dimensions (Net): 42.6 × 13.27 × 9.21 in
  • Weight (Net): 35.49 lbs
  • Dimensions (Gross): 46.73 × 17.68 × 14.09 in
  • Weight (Gross): 49.6 lbs


─────────────────────────────────────────────────────────────

Compatibility

DIY® Select 1st Gen - 24K BTU Condenser w/ 11ft Install Kit - 230V



Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

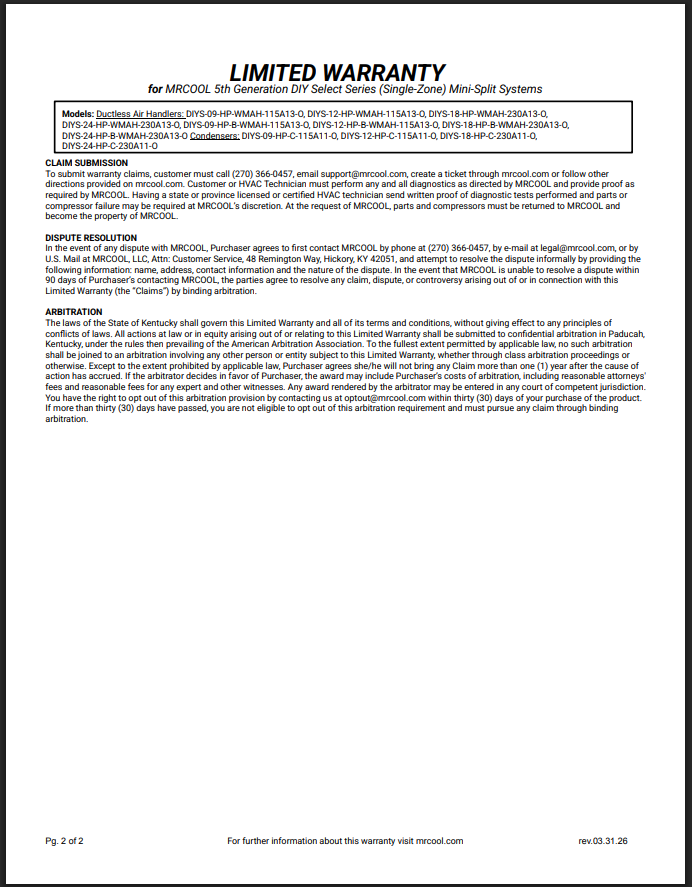

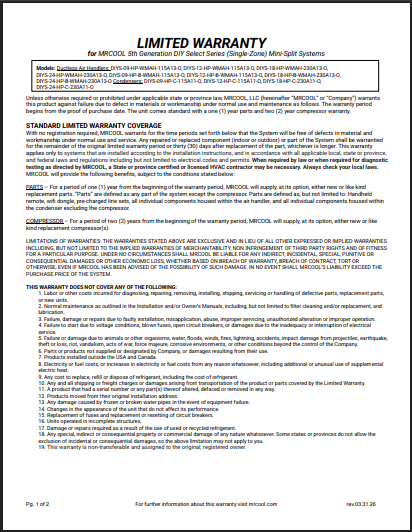

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.





─────────────────────────────────────────────────────────────
