DIYS-24-HP-B-WMAH-230A13-O
Description

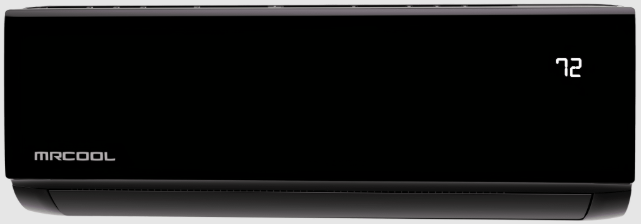

The MRCOOL® DIY® Select 24K BTU 230V Ductless Mini Split Heat Pump Air Handler in black delivers powerful energy efficient heating and cooling for spaces up to 1,050 sq ft. Its sleek modern design makes it an excellent choice for living rooms open concept spaces large basements and bonus rooms.
Built for year round performance it maintains consistent indoor comfort while helping reduce energy consumption and overall operating costs.
As part of the MRCOOL® DIY® lineup this system is engineered for true do it yourself installation. It works with Quick Connect® line sets that come factory pre charged with R 454B refrigerant, eliminating the need for vacuum pumps gauges or specialized HVAC tools to streamline installation.
The included 13 foot DIYPRO® cable further enhances installation by eliminating the need for electrical conduit while protecting wiring from moisture pests and outdoor exposure. This added durability helps ensure long term reliability and a clean professional looking installation.
Comfort control is intuitive and flexible. The included wireless remote allows for quick adjustments while the MRCOOL® Comfort app provides full system control from virtually anywhere. Users can adjust temperatures monitor energy usage and create customized schedules with added convenience through Amazon Alexa and Google Assistant voice control.
Features like Dry Mode Sleep Mode Auto Mode and programmable scheduling help maintain a balanced indoor environment while improving efficiency.
Backed by a 2 year compressor warranty and a 1 year parts warranty, this system offers a reliable cost effective comfort solution without the need for professional installation.
Find the Brochure HERE
─────────────────────────────────────────────────────────────
Key Specs
- Tonnage: 2
- Voltage: 208/230V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 15A
- Min Circuit Ampacity: 3A
- Color: Black
- Max Coverage Area: 1050 sq ft
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Decibel Rating (Low): 21.5 dBA
- Decibel Rating (High): 51.5 dBA
- Liquid Line Size: 3/8 in
- Suction Line Size: 5/8 in
- Blower Motor Type: DC
- Blower Motor RPM: 1100 / 940 / 780
- Filter Type: Reusable
- Adjustable Thermostat: Yes
- Fan Only Option: Yes
- Sleep Mode: Yes
- Auto Cool: Yes
- WiFi Compatibility: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- Remote Control Included: Yes
- Base Warranty: 1 Year Parts
- Base Parts Warranty: 1 Year Parts
- Base Remote Warranty: 1 Year
- Has Batteries: Yes
- Contains Electronics: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 9.21 in D × 13.27 in H × 42.6 in W
- Net Weight: 35.49 lbs
- Gross Dimensions: 14.09 in D × 17.68 in H × 46.73 in W
- Gross Weight: 49.6 lbs
─────────────────────────────────────────────────────────────
Compatibility
DIY® Select 1st Gen - 24K BTU Condenser w/ 11ft Install Kit - 230V
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

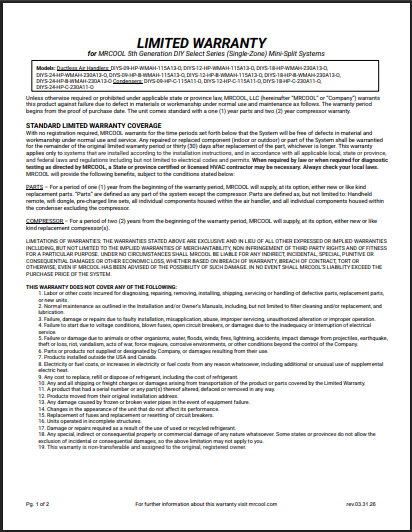

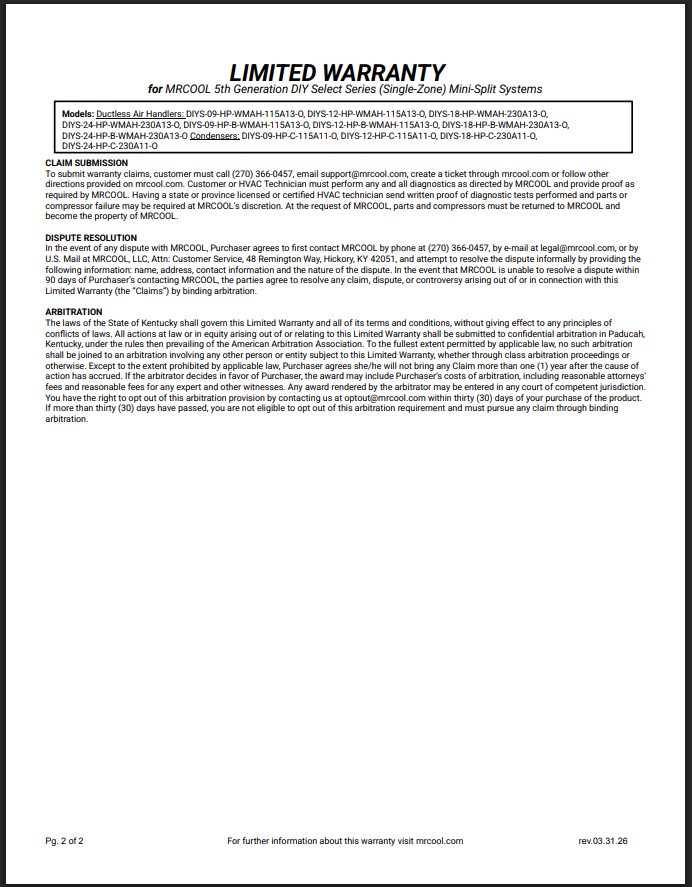

Warranty
The MRCOOL warranty offers comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────
