DIY® Select 1st Gen 18K BTU Air Handler - 230V

Sandra
Updated

    DIYS-18-HP-WMAH-230A13-O



Description

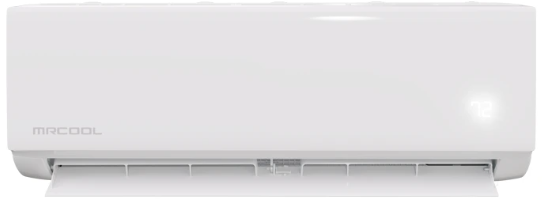

The MRCOOL® DIY® Select 18K BTU 230V Ductless Mini Split Heat Pump Air Handler delivers efficient reliable heating and cooling for spaces up to 800 sq ft. Ideal for garages attics basements and bonus rooms it provides consistent year round comfort with simple operation and high efficiency.

Designed within the MRCOOL® DIY® lineup this system supports true do it yourself installation. The compatible Quick Connect® line set comes factory pre charged with environmentally friendly R 454B refrigerant, eliminating the need for vacuum pumps or refrigerant handling. Additionally the included 13 foot DIYPRO® cable replaces traditional electrical conduit streamlining installation while safeguarding wiring from moisture pests and everyday wear.

Control your comfort easily with the included wireless remote or the MRCOOL® Comfort app which allows you to adjust temperatures set schedules and monitor energy usage from anywhere. Compatibility with Amazon Alexa and Google Assistant enables convenient hands free voice control.

Advanced features like Dry Mode Sleep Mode Auto Mode and programmable scheduling enhance comfort while optimizing efficiency. A Gold Fin® condenser coating adds corrosion resistance making the system well suited for humid or coastal environments.

The MRCOOL® DIY® Select 18K includes a 2 year compressor warranty and a 1 year parts warranty.



Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs

  • Tonnage: 1.5
  • Voltage (V): 208/230
  • Phase: 1
  • Cycle: 60
  • Max Fuse Breaker (A): 15
  • Min Circuit Ampacity (A): 3
  • Max Coverage Area: 800 sq. ft.
  • Zone Capacity: 1
  • Refrigerant Type: R-454B
  • Decibel Rating (Low): 18.5 dBA
  • Decibel Rating (High): 46.5 dBA
  • Liquid Line Size: 1/4 in
  • Suction Line Size: 1/2 in
  • Blower Motor Type: DC
  • Blower Motor RPM: 1200 / 1000 / 900
  • Filter Type: Reusable
  • Smart Features: WiFi / App Compatible (iOS & Android)
  • Controls: Adjustable thermostat, fan only, sleep mode, auto cool, remote included
  • Warranty: 1 year parts, 1 year remote
  • Safety / Compliance: Prop 65 warning applies
  • Electrical Notes: Contains electronics, chemicals, compressed gas
  • Dimensions (Net): 38.23 × 12.64 × 8.98 in
  • Weight (Net): 30.64 lbs
  • Dimensions (Gross): 46.73 × 17.68 × 14.09 in
  • Weight (Gross): 44.97 lbs


─────────────────────────────────────────────────────────────

Compatibility

DIY® Select 1st Gen - 18K BTU Condenser w/ 11ft Install Kit - 230V



Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

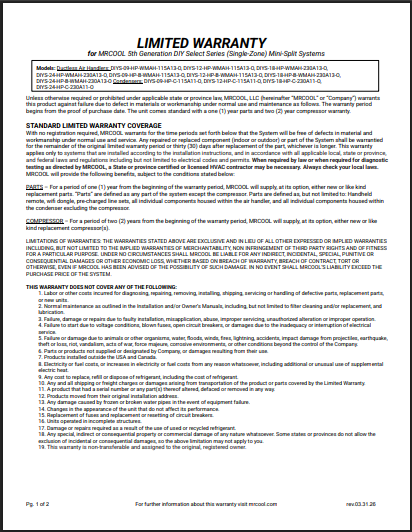

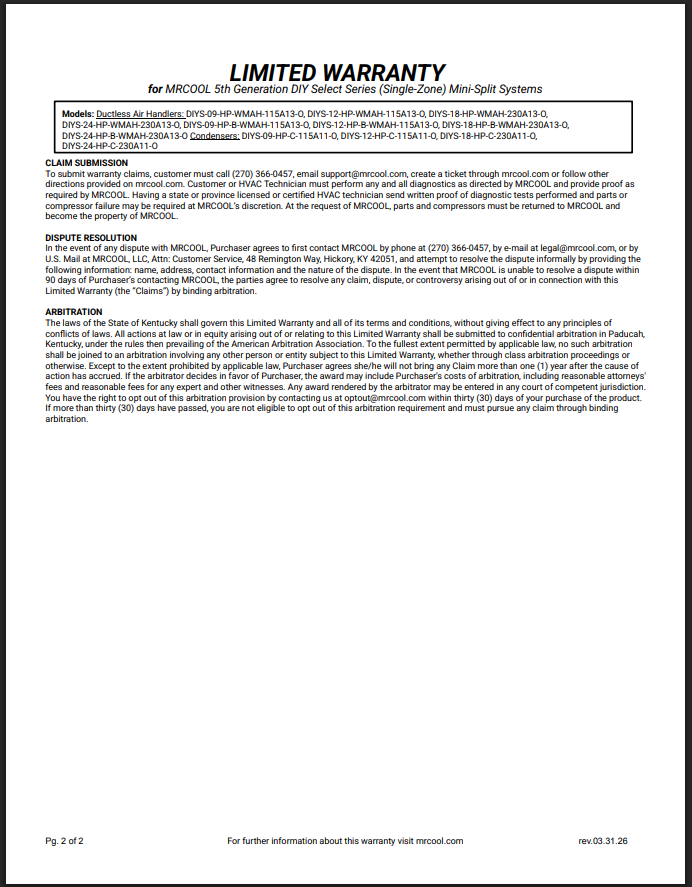

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.





─────────────────────────────────────────────────────────────
