DIY® Select 1st Gen 12K BTU Black Air Handler - 115V

Sandra
Updated

DIYS-12-HP-B-WMAH-115A13-O



Description

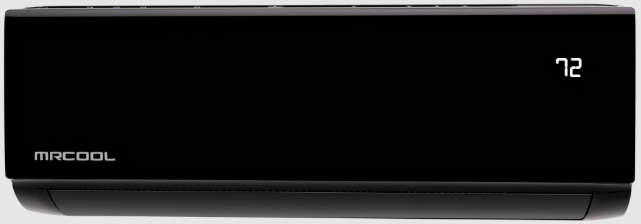

The MRCOOL® DIY® Select 9K BTU 115V Ductless Mini Split Heat Pump Air Handler in black is designed to deliver efficient dependable heating and cooling for spaces up to 400 sq ft. Its sleek modern finish and compact design make it a natural fit for bedrooms home offices studios garages and other small living areas. Whether enhancing an existing room or adding comfort to a new space it provides consistent year round performance while helping reduce energy usage and utility costs.

Engineered as part of the MRCOOL® DIY® lineup this system is built for true do it yourself installation. It pairs with Quick Connect® line sets that come factory pre charged with R 454B refrigerant, eliminating the need for vacuum pumps specialized tools or refrigerant handling. This significantly simplifies installation saving time and reducing overall project costs.

The included 13 foot DIYPRO® cable further streamlines setup by removing the need for electrical conduit while protecting wiring from moisture pests and outdoor exposure.

Control is simple and flexible with the included remote or the MRCOOL® Comfort app allowing users to adjust settings create schedules and monitor energy use from anywhere. Voice control compatibility with Amazon Alexa and Google Assistant adds convenience.

Comfort features like Dry Mode Sleep Mode and Auto Mode help maintain a balanced indoor environment while optimizing efficiency. This system is made for long term durability.

Backed by a 2 year compressor warranty and a 1 year parts warranty, it offers a reliable cost effective comfort solution.



Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs

  • Tonnage: 1
  • Voltage: 115V
  • Phase: 1
  • Cycle: 60Hz
  • Max Fuse Breaker: 15A
  • Min Circuit Ampacity: 3A
  • Color: Black
  • Max Coverage Area: 550 sq ft
  • Zone Capacity: 1
  • Refrigerant Type: R-454B
  • Decibel Rating (Low): 17.5 dBA
  • Decibel Rating (High): 44.5 dBA
  • Liquid Line Size: 1/4 in
  • Suction Line Size: 3/8 in
  • Blower Motor Type: DC
  • Blower Motor RPM: 850 / 750 / 450
  • Filter Type: Reusable
  • Adjustable Thermostat: Yes
  • Fan Only Option: Yes
  • Sleep Mode: Yes
  • Auto Cool: Yes
  • WiFi Compatibility: Yes
  • App Compatibility: Yes
  • Works with iOS: Yes
  • Works with Android: Yes
  • Remote Control Included: Yes
  • Base Warranty: 1 Year Parts
  • Base Parts Warranty: 1 Year Parts
  • Base Remote Warranty: 1 Year
  • Has Batteries: Yes
  • Contains Electronics: Yes
  • Contains Chemicals: Yes
  • Contains Compressed Gas: Yes
  • Proposition 65 Warning: Yes
  • Net Dimensions: 7.87 in D × 11.61 in H × 31.57 in W
  • Net Weight: 24.91 lbs
  • Gross Dimensions: 13.97 in D × 16.34 in H × 36.02 in W
  • Gross Weight: 35.71 lbs

─────────────────────────────────────────────────────────────

Compatibility

DIY Select 1st Gen - 12K BTU Condenser w/ 11ft Install Kit - 115V



Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

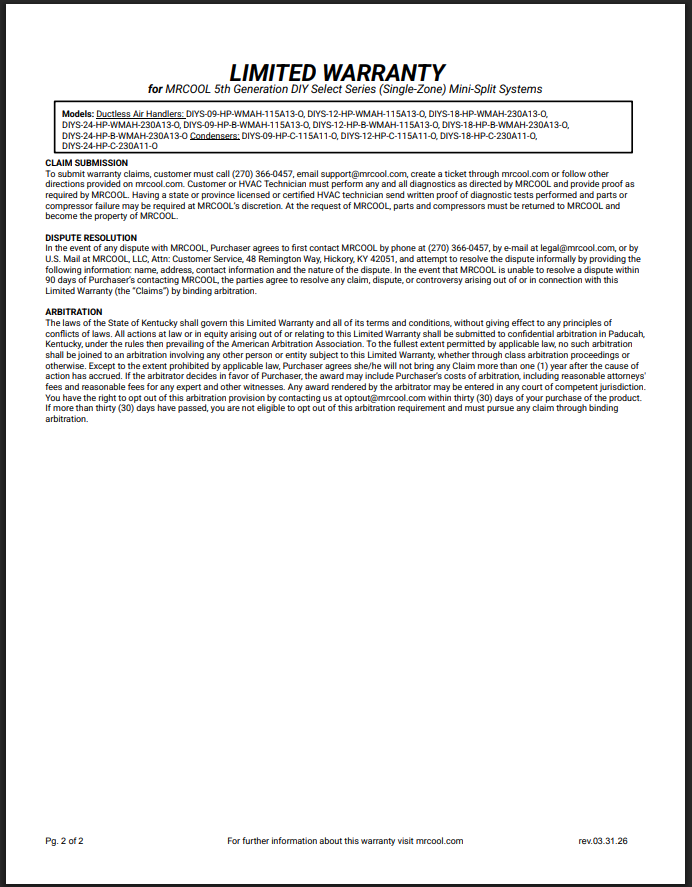

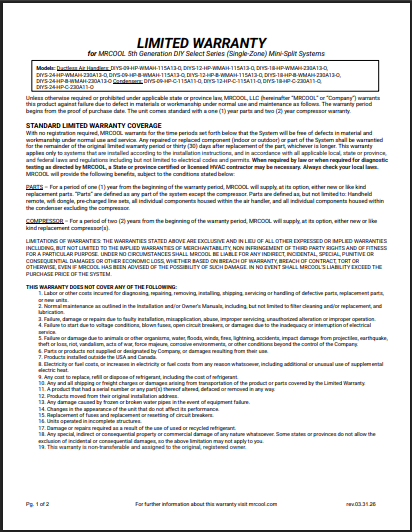

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.





─────────────────────────────────────────────────────────────
