DIY 9k OuttaSight™ Ceiling Cassette - 230v – MRCOOL

DIYCASSETTE09HP-230C25

Description

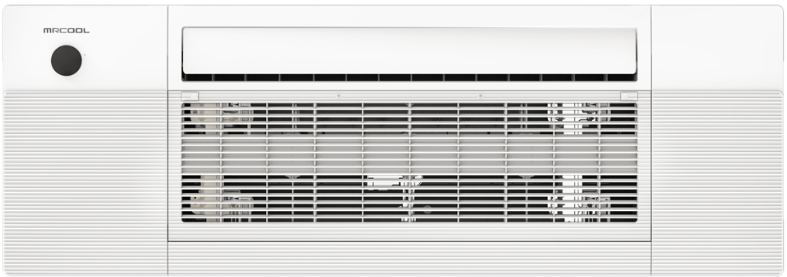

The MRCOOL® OuttaSight™ 9k BTU Ceiling Cassette delivers powerful, discreet heating and cooling without sacrificing valuable wall or floor space. Perfect for any room, this unit is available in multi-zone configurations and fits easily between standard 16-inch ceiling joists, including pre-manufactured I-joists—making it ideal for both new construction and retrofit projects.

Unlike traditional ceiling units, the OuttaSight™ has no rigid installation requirements, allowing for more flexible placement. It works with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with refrigerant to eliminate the need for vacuuming or specialized tools. For added convenience, the No-Vac® Coupler allows you to extend the line set when needed.

This unit features advanced filtration, multiple operating modes, and whisper-quiet performance for year-round comfort. The Elevation function makes maintenance simple by lowering the filter panel for easy access.

Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs

Fits Between 16" Ceiling Joists – Designed for easy installation in standard joist spacing.
Easy-Access Elevating Filter – Lowers up to 4.9 feet for hassle-free maintenance.
Low-Profile Installation – Sleek and unobtrusive ceiling integration.
Compatible with DIY 4th Gen Multi-Zone System – Ensures seamless pairing with your setup.
Future-Ready Joist Compatibility – Recesses between all 16-inch center joist types, including pre-manufactured I-joists.

───────────────────────────────────────────────────────

Compatibility

DIY 4th Gen Multi-Zone Condensers

DIY Pre-Charged Line Sets 1/4"-1/2"

Line Guards

MRCOOL Mini-Stats

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────
