DIY 9k 5th Gen Condenser - 115v – MRCOOL

DIY-09-HP-C-115D25-O

Description

Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser is designed for exactly that. With no special tools or experience required, this system can heat or cool spaces up to 350 sq. ft. The pre-charged 25-foot Quick Connect® line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the demand for vacuuming.

You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. Additionally, with the Follow Me® feature, the system tracks the temperature near your remote, helping maintain your ideal comfort level. For coastal homes, the Gold Fin® condenser coating provides superior corrosion resistance, ensuring long-lasting performance.

This system offers multiple modes and features to enhance comfort and efficiency. Using your wireless remote, you can access the Timer function that helps reduce energy use and the Auto mode, which maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings.

Once the unit is installed, you can take advantage of many additional features designed to enhance your comfort and efficiency. Backed by an industry-leading warranty, this system offers a base warranty that includes a 7 year compressor warranty and 5 year parts warranty, along with eligibility for the MRCOOL® Care Program. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.

Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs

SEER2: 23.6
EER2: 14
HSPF2-4: 11.5
HSPF2-5: 8.6
Tonnage: 0.75
Cooling Capacity: 9000 BTU
Heating Capacity: 10000 BTU
Voltage: 115V
Phase: 1
Cycle: 60Hz
Max Fuse Breaker: 20A
Min Circuit Ampacity: 18A
Color: White
Zone Capacity: 1
Refrigerant Type: R-454B
Refrigerant Volume: 30.34 oz
Decibel Rating: 54 dBA
Inverter: DC
Line Set Length: 25 ft
Max Line Set Length: 82 ft
Liquid Line Size: 1/4 in
Suction Line Size: 3/8 in
Compressor Motor Type: Rotary
Auxiliary Heater Included: No
Auxiliary Heater Available: No
Fan Only Option: Yes
Quiet Mode: Yes
Auto Cool: Yes
WiFi Compatibility: Yes
App Compatibility: Yes
Works with iOS: Yes
Works with Android: Yes
UL Listed: Yes
ETL Listed: Yes
Energy Star Certified: Yes
AHRI Certified: Yes
Base Parts Warranty: 5 Years
Base Compressor Warranty: 7 Years
Contains Compressed Gas: Yes
Proposition 65 Warning: Yes
Net Depth: 11.93 in
Net Height: 21.85 in
Net Width: 30.12 in
Net Weight: 65.48 lbs
Gross Depth: 16.54 in
Gross Height: 27.56 in
Gross Width: 36.22 in
Gross Weight: 83.11 lbs

─────────────────────────────────────────────────────────────

Compatibility

DIY 9k 5th Gen E-Star Air Handler - 115V

5th Gen R-454B DIY Line Set 1/4" - 3/8"

MRCOOL Mini-Stats

Line Guards

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only

MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU

Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

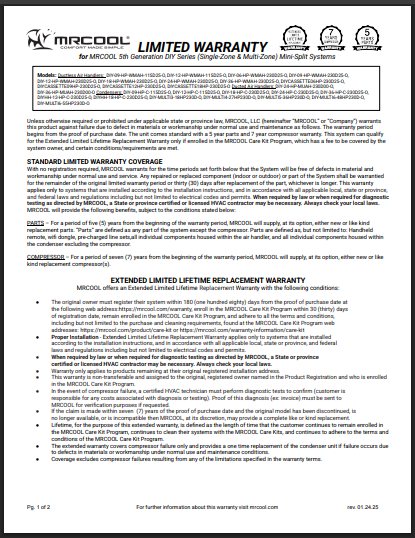

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.

─────────────────────────────────────────────────────────────
