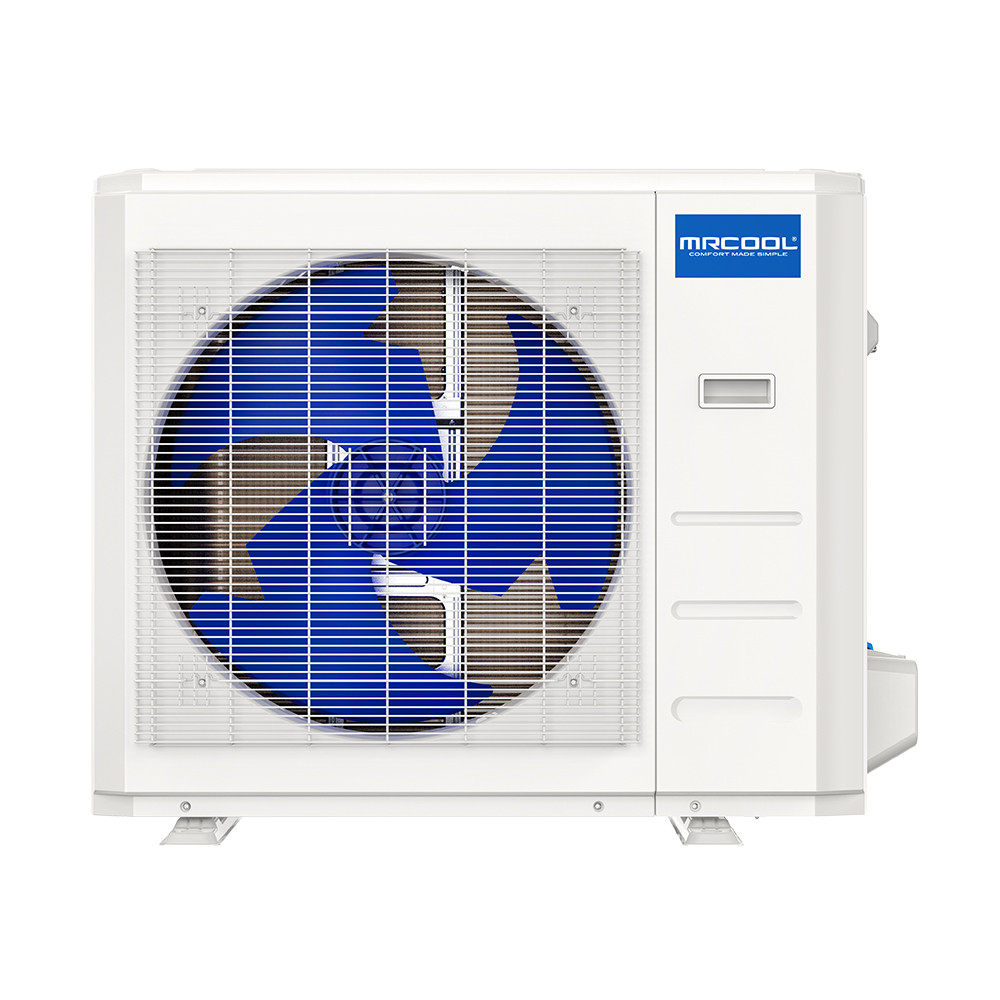

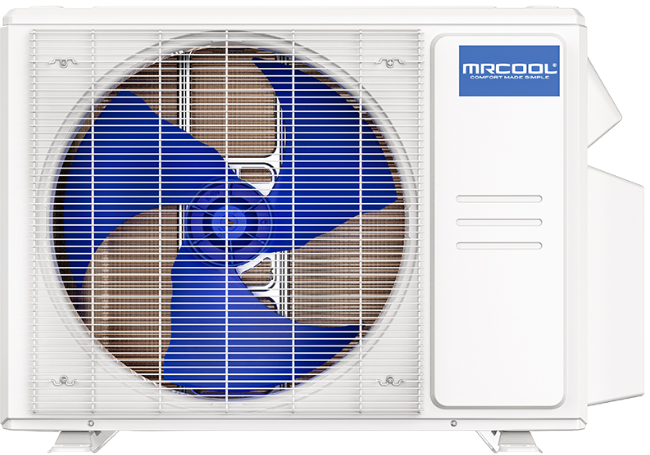

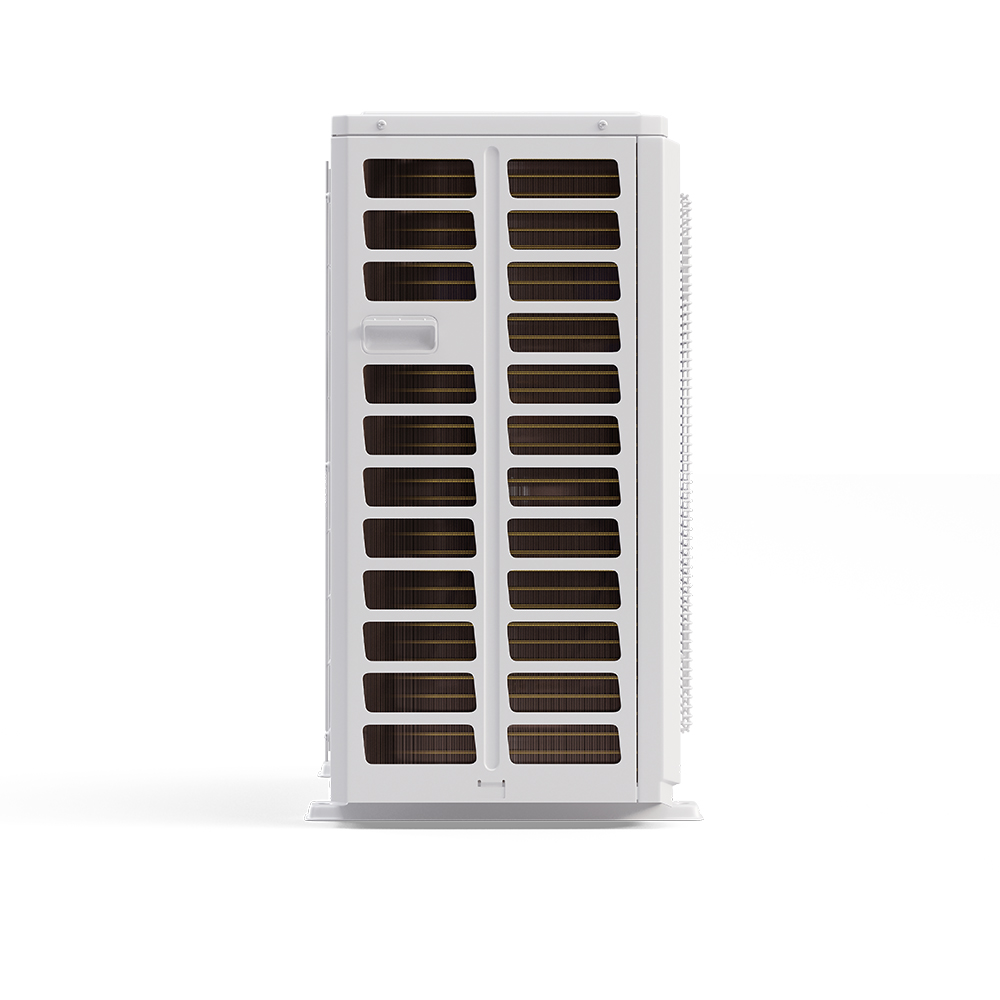

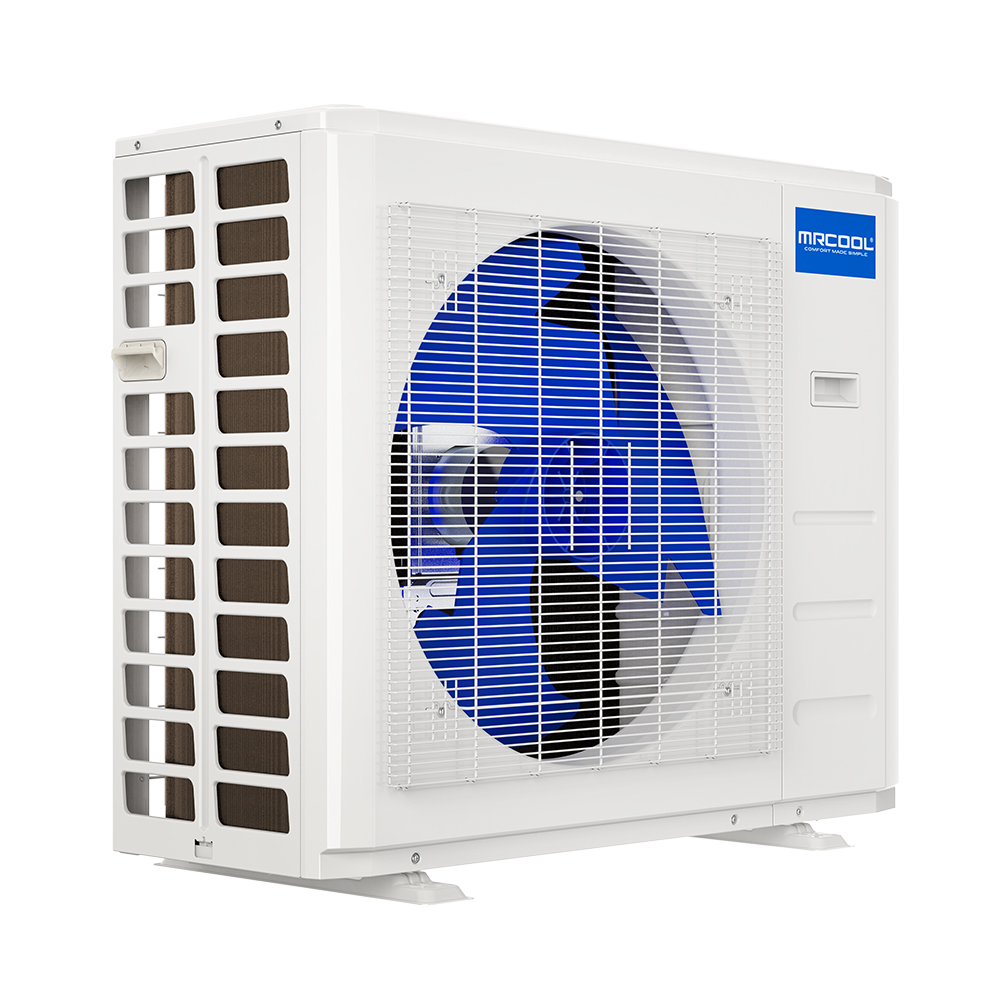

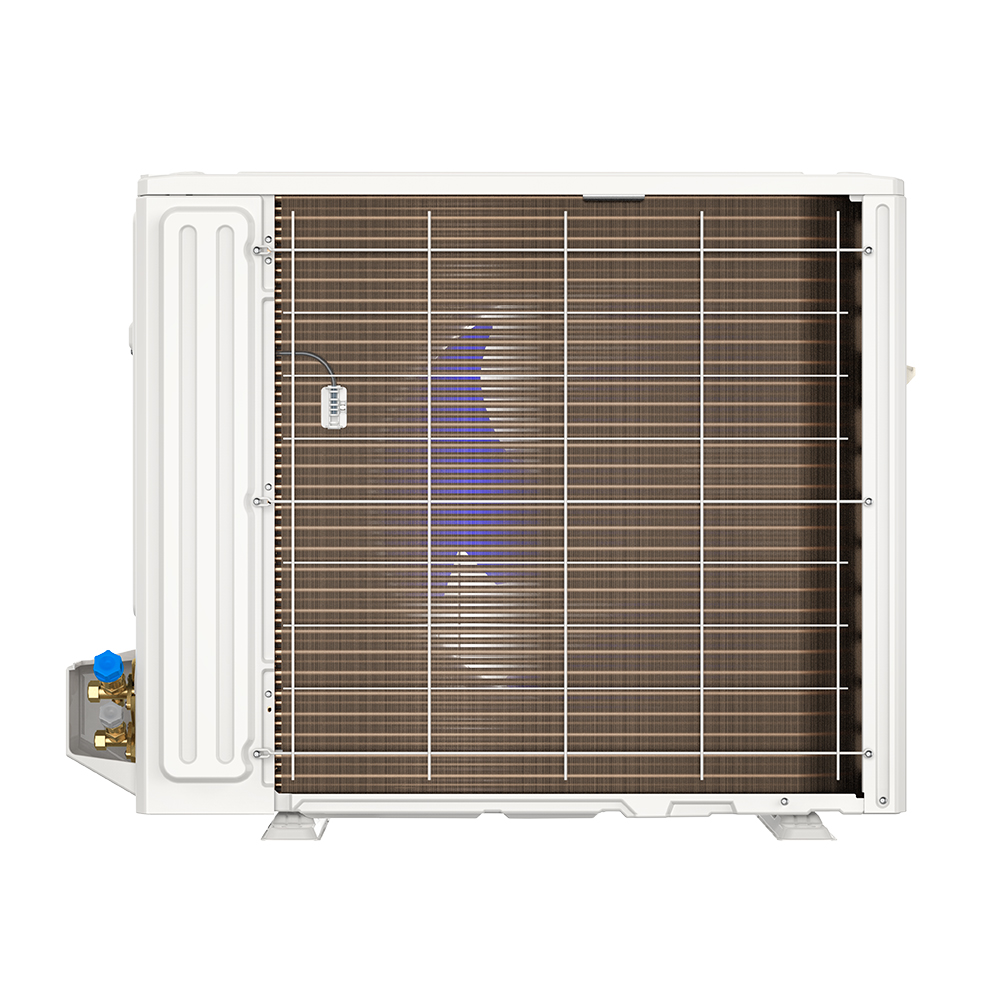

DIY 12k 5th Gen Condenser - 115v – MRCOOL

DIY-12-HP-C-115D25-O

Description

Installing your own HVAC system might sound overwhelming, but the 5th Generation MRCOOL® DIY® 12k BTU 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes it simple and achievable. Designed specifically for easy installation, this system can efficiently heat or cool areas between 350 and 500 square feet no professional tools or HVAC experience required.

Thanks to the 25 foot pre charged Quick Connect® line set filled with R 454B refrigerant, setup is straightforward and does not require vacuuming. It is a cost saving, do it yourself solution engineered for safety and simplicity.

You can control the system in multiple ways: use the included remote, the SmartHVAC app on iOS or Android, or voice commands via Amazon Alexa and Google Assistant. The built in Follow Me® feature detects the temperature near the remote, adjusting output to match your location. For coastal homes, the Gold Fin® condenser coating provides rust resistant protection, ensuring the system performs well over time.

Comfort and energy savings are built in, with modes like Auto, Sleep, and Timer, plus auto restart after power outages. Once installed, you'll enjoy a full suite of smart and efficient features.

This model also comes with a base warranty that includes a 7 year compressor warranty and 5 year parts warranty, along with eligibility for the MRCOOL® Care Program. With its advanced tech and user friendly design, this unit offers both flexibility and long term peace of mind.

Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs (Performance Specs Click Here)

SEER2: 23.5
EER2: 12.5
HSPF2-4: 10.2
HSPF2-5: 7.6
Tonnage: 1
Cooling Capacity: 12000 BTU
Heating Capacity: 12000 BTU
Voltage: 115V
Phase: 1
Cycle: 60Hz
Max Fuse Breaker: 20A
Min Circuit Ampacity: 18A
Color: White
Zone Capacity: 1
Refrigerant Type: R-454B
Refrigerant Volume: 30.34 oz
Decibel Rating: 54 dBA
Inverter: DC
Line Set Length: 25 ft
Max Line Set Length: 82 ft
Liquid Line Size: 1/4 in
Suction Line Size: 3/8 in
Compressor Motor Type: Rotary
Auxiliary Heater Included: No
Auxiliary Heater Available: No
Fan Only Option: Yes
Quiet Mode: Yes
Auto Cool: Yes
WiFi Compatibility: Yes
App Compatibility: Yes
Works with iOS: Yes
Works with Android: Yes
UL Listed: Yes
ETL Listed: Yes
Energy Star Certified: Yes
AHRI Certified: Yes
Base Parts Warranty: 5 Years
Base Compressor Warranty: 7 Years
Contains Compressed Gas: Yes
Proposition 65 Warning: Yes
Net Depth: 11.93 in
Net Height: 21.85 in
Net Width: 30.12 in
Net Weight: 83.11 lbs
Gross Depth: 16.54 in
Gross Height: 27.56 in
Gross Width: 36.22 in
Gross Weight: 65.48 lbs

──────────────────────────────────────────────────────────── Compatibility

DIY 12k 5th Gen E-Star Air Handler - 115V

5th Gen R-454B DIY Line Set 1/4" - 3/8"

MRCOOL Mini-Stats

Line Guards

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only

MRCOOL Condenser Wall Mounting Kit - 9k to 18k

Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

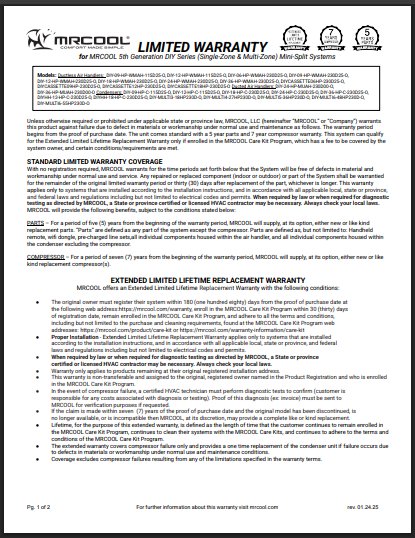

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.

─────────────────────────────────────────────────────────────
