DIY-MULTI6-55HP230D-O
Description

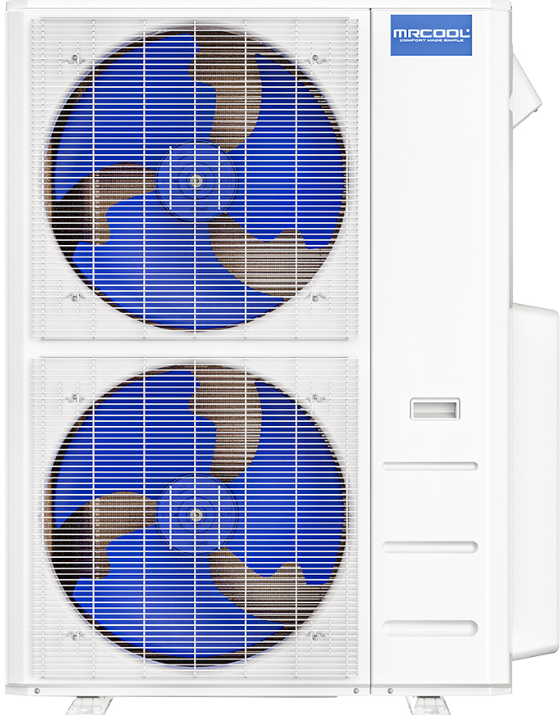

Unveiling the 5th Generation MRCOOL® DIY® 55k BTU Multi Zone Ductless Mini Split Condenser our largest, most innovative, and feature packed DIY® system to date. This energy efficient unit is designed to heat and cool up to six separate zones, covering a total of 2,290 sq. ft. It is a perfect whole home solution, and best of all, you can install it yourself no HVAC professional required. You will save time and money while gaining the satisfaction of a DIY project well done.
Installation is fast and simple thanks to our patented pre charged Quick Connect® line sets. These come pre filled with R 454B refrigerant, a next generation refrigerant that is both eco friendly and highly efficient. With a SEER2 rating of 22 and HSPF2 4 rating of 10.6, this system is built to keep your utility bills low while delivering powerful comfort all year long.
After setup, you will enjoy total control over your home climate. Use the SmartHVAC app, available for iOS and Android, to manage individual zones, set schedules, adjust modes, and monitor energy usage from your phone. Want even more convenience? Connect your system to Amazon Alexa or Google Home for seamless voice control. Whether you are managing comfort in one room or all six zones, control is always nearby.
Your investment is protected with one of the best warranties in the industry: a 5 year parts warranty, a 7 year compressor warranty, and eligibility for the MRCOOL® Care Program. For unmatched comfort, convenience, and DIY simplicity, choose the MRCOOL® DIY® 55k BTU Multi Zone Ductless Mini Split system.
Find the Brochure HERE
─────────────────────────────────────────────────────────────────────
Key Specs
- SEER2: 22
- EER2: 12
- HSPF2-4: 10.6
- HSPF2-5: 8.5
- Tonnage: 4.6
- Cooling Capacity: 47000 BTU
- Heating Capacity: 55000 BTU
- Voltage: 208/230V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 45A
- Min Circuit Ampacity: 43A
- Color: White
- Zone Capacity: 6
- Refrigerant Type: R-454B
- Refrigerant Volume: 151.68 oz
- Decibel Rating: 64 dBA
- Inverter: DC
- Line Set Length: 25 ft
- Max Line Set Length: 221.4 ft
- Liquid Line Size: 1/4 in
- Suction Line Sizes: (3/8 x4), (1/2 x2)
- Compressor Motor Type: Rotary
- Auxiliary Heater Included: No
- Auxiliary Heater Available: No
- Fan Only Option: Yes
- Quiet Mode: Yes
- Auto Cool: Yes
- WiFi Compatibility: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- ETL Listed: Yes
- Energy Star Certified: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 5 Years
- Base Compressor Warranty: 7 Years
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Depth: 16.34 in
- Net Height: 52.48 in
- Net Width: 37.48 in
- Net Weight: 245.81 lbs
- Gross Depth: 19.49 in
- Gross Height: 58.27 in
- Gross Width: 43.11 in
- Gross Weight: 267.46 lbs
─────────────────────────────────────────────────────────────────────
Compatibility - (R-454B Refrigerant Only)
DIY 6k BTU 5th Gen Air Handler - 230v
DIY 9k BTU 5th Gen Air Handler - 230v
DIY 12k BTU 5th Gen Air Handler - 230v
DIY 18k 5th Gen E-Star Air Handler - 230v
DIY 24k 5th Gen E-Star Air Handler - 230v
DIY 36k 5th Gen E-Star Air Handler - 230v
5th Gen R-454 DIY Line Set 3/8" - 5/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────────────

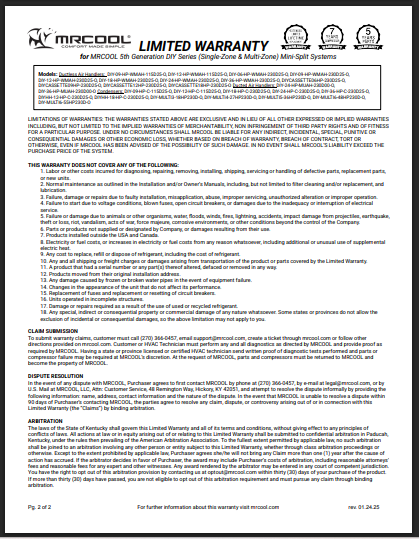

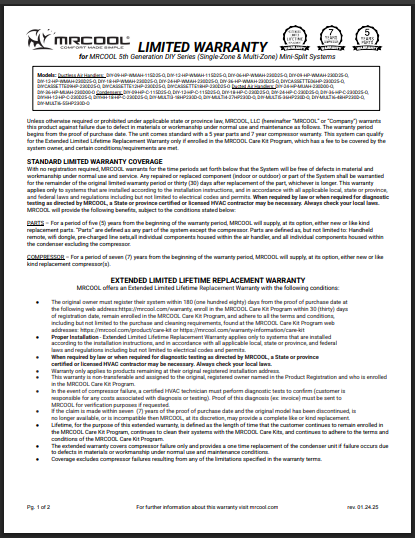

The MRCOOL warranty offers comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────────────
