DIYCASSETTE06HP-230D25-O
Description

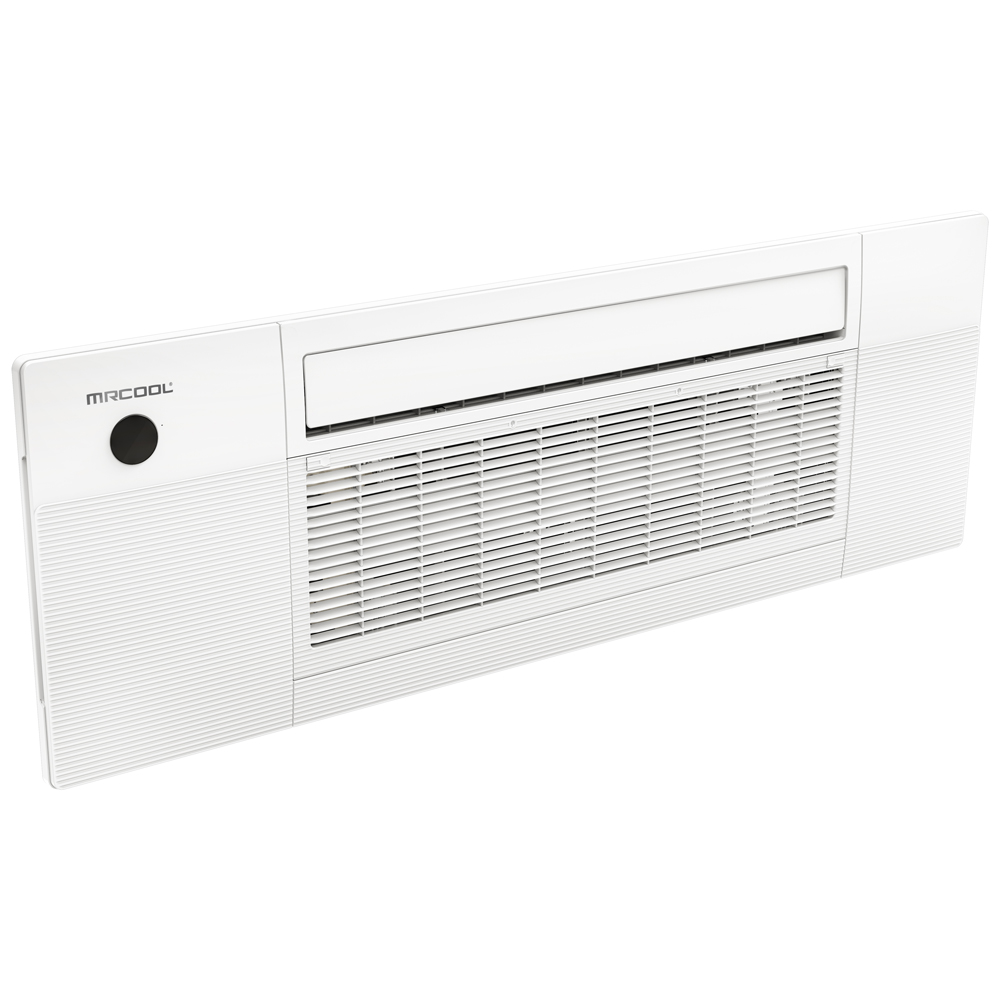

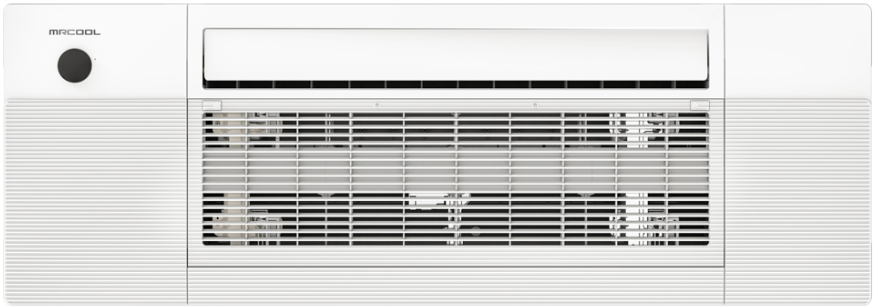

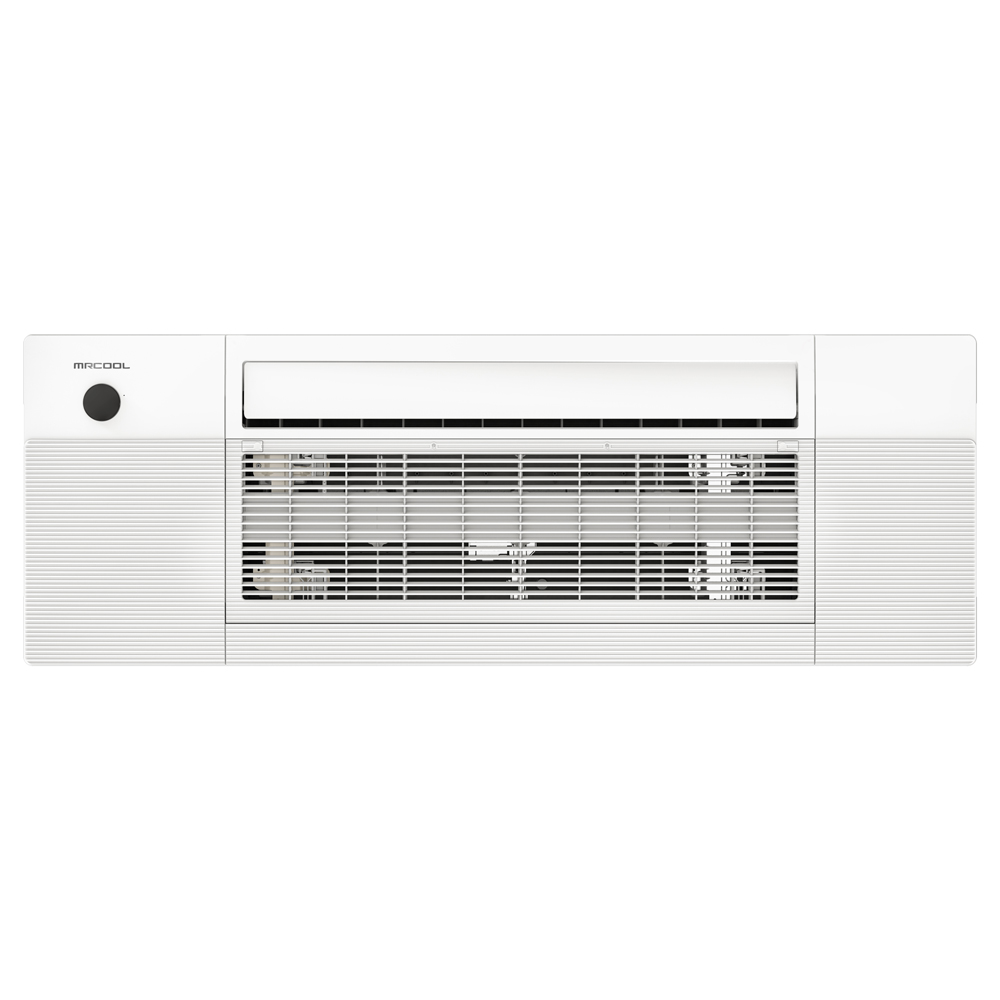

The 5th Generation MRCOOL® DIY® Series OuttaSight® 6K BTU 230V One-Way Ceiling Cassette is a powerful and efficient climate control solution for spaces up to 200 sq. ft. Engineered for easy DIY installation, this system eliminates the need for specialized tools, making setup simple, cost-effective, and hassle-free.

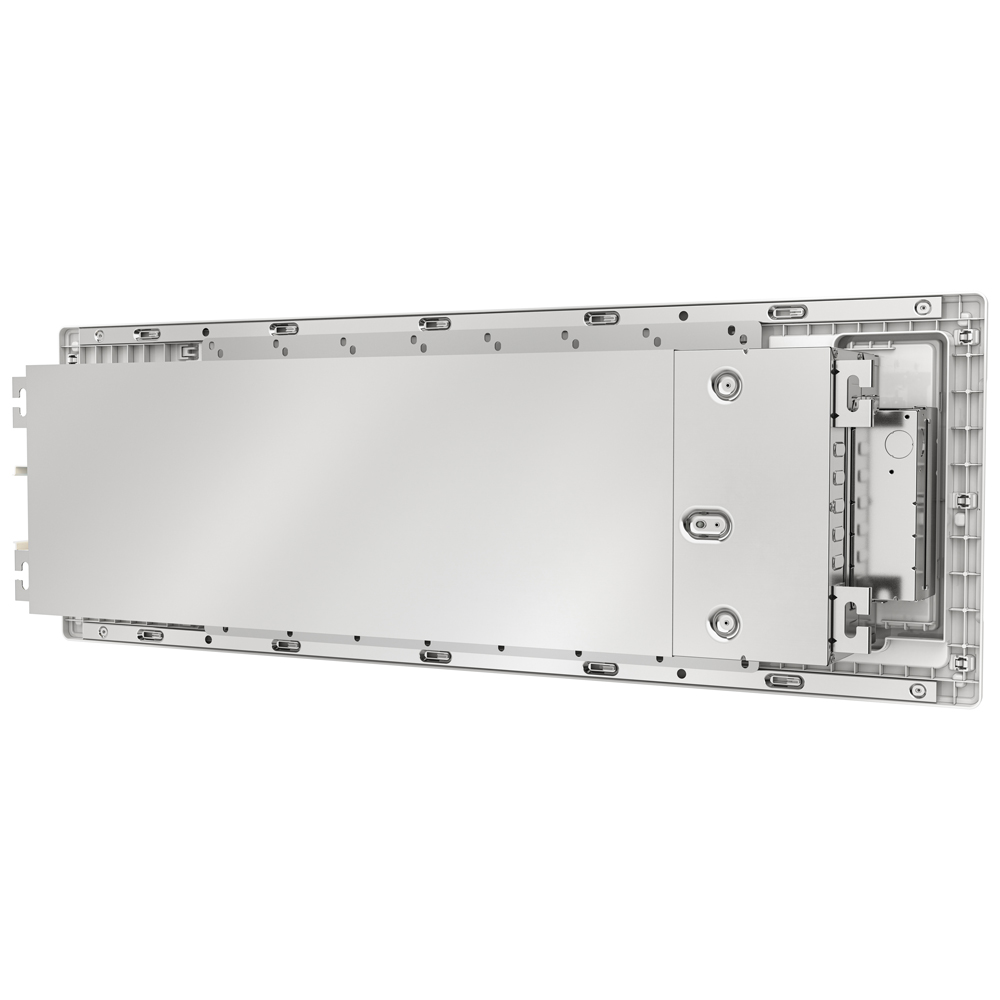

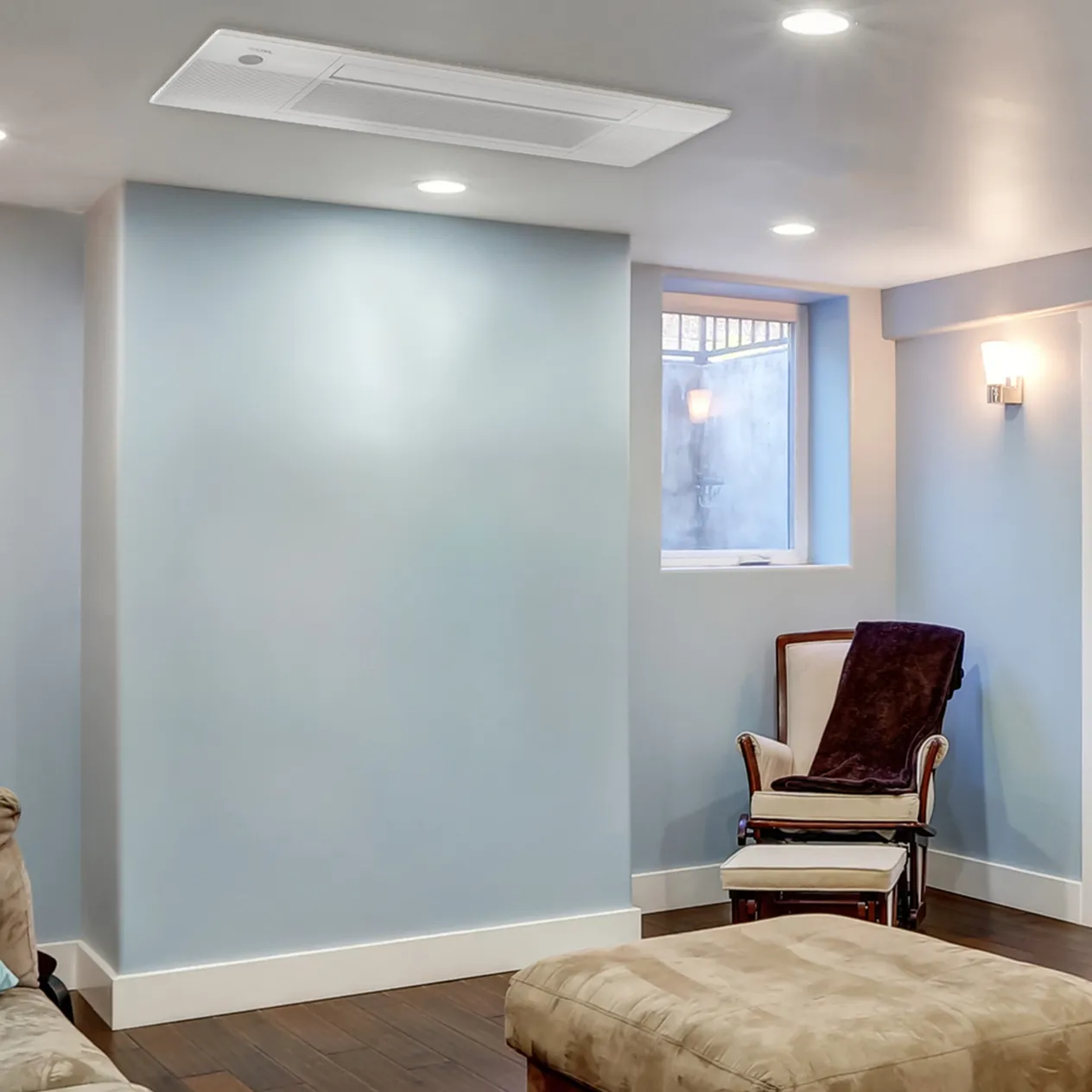

Designed to integrate seamlessly into multi-zone configurations, the cassette fits neatly between 16” ceiling joists, including pre-manufactured I-joists, for a clean, flush-mounted appearance. Unlike traditional ceiling cassettes that require extensive ductwork or inconvenient wall space, this unit offers a flexible installation ideal for both new builds and retrofit projects.

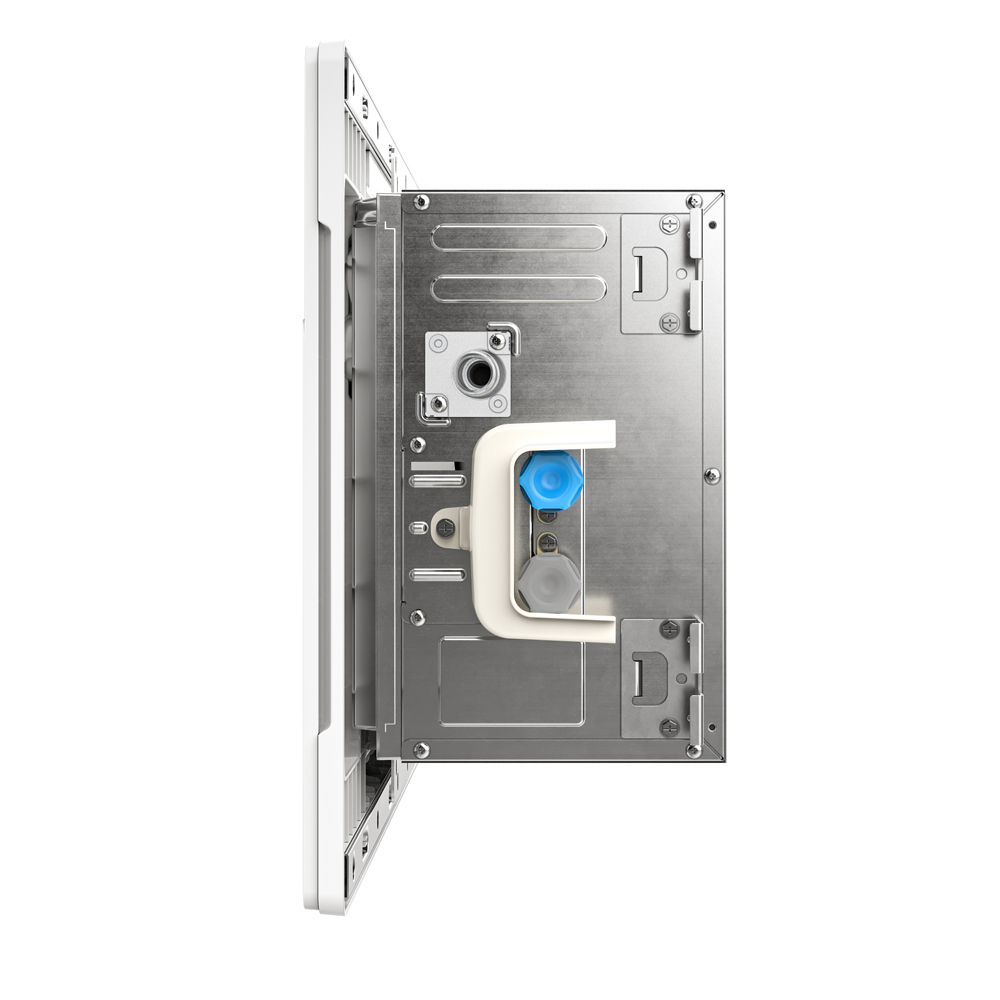

The cassette pairs effortlessly with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, an environmentally friendly refrigerant that eliminates the need for vacuuming. Advanced filtration enhances indoor air quality, while the Elevation function allows easy filter maintenance by lowering the panel for convenient access.
With quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant—this system offers personalized comfort.
Backed by an industry-leading limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, the MRCOOL® DIY® OuttaSight® Ceiling Cassette delivers long-term reliability, advanced technology, and year-round comfort.
Find the Brochure HERE
─────────────────────────────────────────────────────────────
Key Specs
BTU Capacity: 6,000 BTU
Voltage: 230V
Coverage Area: Up to 200 sq. ft.
Installation: DIY-friendly; fits between standard 16” ceiling joists (including I-joists)
Refrigerant: Pre-charged with R-454B (eco-friendly)
Compatible Line Set: MRCOOL® DIY® Quick Connect®
Control Options: Wireless remote, SmartHVAC app, Alexa & Google Assistant
Air Filtration: Advanced filter with Elevation function for easy maintenance
Noise Level: Quiet operation
Warranty: Limited lifetime compressor (with registration), 7-year compressor, 5-year parts
Liquid Line Size: 1/4"
Suction Line Size: 3/8"
─────────────────────────────────────────────────────────────
Compatibility
5th Gen R-454B DIY Line Set 1/4" - 3/8"
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────
Warranty
The MRCOOL warranty offers comprehensive coverage for your unit, even with DIY self-installation.
─────────────────────────────────────────────────────────────
Quick Links
Manuel d'installation en français
Manuel de la télécommande en français
Document de garantie en français
Manual de instalación en español
Manual de la telecommande en español
Documento de garantía en español
─────────────────────────────────────────────────────────────
