DIY® Series 5th Gen OuttaSight® 9K BTU 230V – MRCOOL

DIYCASSETTE09HP-230D25-O

Description

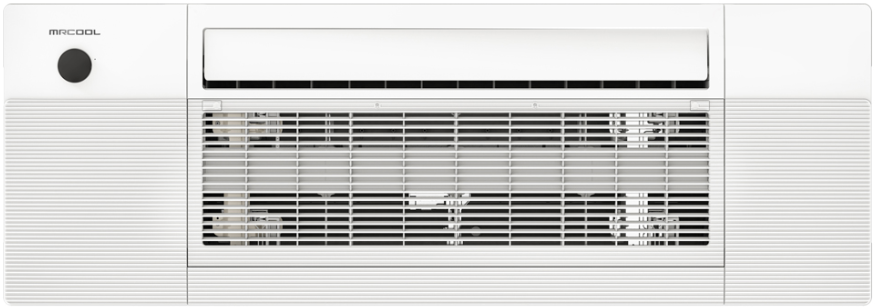

The 5th Generation MRCOOL® DIY® Series Outtasight® 9K BTU 230V One Way Ceiling Cassette provides a powerful and efficient climate control solution for areas up to 400 sq. ft. Designed for simple installation, this unit eliminates the need for specialized tools, making setup quick, cost effective, and straightforward.

Made for multi zone configurations, the cassette is engineered to fit seamlessly between 16 inch ceiling joists, including pre manufactured I joists, ensuring a discreet, flush mounted appearance. Unlike conventional ceiling cassettes that require bulky ductwork or dedicated wall space, this unit offers versatile installation, making it a perfect choice for new construction or retrofit applications.

This cassette works effortlessly with the MRCOOL® DIY® Quick Connect® line set, which is pre charged with R 454B refrigerant, an eco friendly solution that removes the need for vacuuming. It features advanced filtration to improve indoor air quality, while the Elevation function makes filter maintenance easy by lowering the panel for hassle free access.

With whisper quiet operation and multiple control options including a wireless remote, SmartHVAC app, and voice control via Amazon Alexa and Google Assistant, this system ensures customized comfort. Supported by a 7 year compressor warranty and 5 year parts warranty, and eligibility for the MRCOOL® Care Program, the MRCOOL® Outtasight® Ceiling Cassette guarantees long lasting performance, modern technology, and year round climate control.

Find the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs

Voltage: 208-230V
Phase: 1
Cycle: 60Hz
Max Fuse Breaker: 15A
Min Circuit Ampacity: 3A
Mount Type: Ceiling
Color: White
Rated Load: 0.8
Max Coverage Area: 400
Refrigerant Type: R-454B
Decibel Rating: 36 dBA
Decibel Rating (Low): 24 dBA
Decibel Rating (High): 38 dBA
Air Flow Direction: 1-way
Liquid Line Size: 1/4 in
Suction Line Size: 3/8 in
Blower Motor RPM: 1104 / 994 / 784
Filter Type: Reusable
Fan Only Option: Yes
Quiet Mode: Yes
Sleep Mode: Yes
Auto Cool: Yes
WiFi Compatibility: Yes
App Compatibility: Yes
Works with iOS: Yes
Works with Android: Yes
Remote Control Included: Yes
Base Warranty: 5-Year Part / 7-Year Compressor
Base Parts Warranty: 5 Years
Base Compressor Warranty: 7 Years
Contains Compressed Gas: Yes
Proposition 65 Warning: Yes
Restricted States: GU;PR;VI
Net Depth: 13.19 in
Net Height: 8.98 in
Net Width: 50.31 in
Net Weight: 45 lbs
Gross Depth: 22.48 in
Gross Height: 22.64 in
Gross Width: 57.6 in
Gross Weight: 88 lbs

─────────────────────────────────────────────────────────────

Compatibility

5th Gen Multi-Zone Condensers

5th Gen E-Star Condensers

5th Gen R-454B DIY Line Set 1/4" - 3/8"

Line Guards

MRCOOL Mini-Stat

MMCK01 Cool Care Program Kit

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────
