DIY® Series 5th Gen OuttaSight® 12K BTU 230V – MRCOOL

DIYCASSETTE12HP-230D25-O

Description

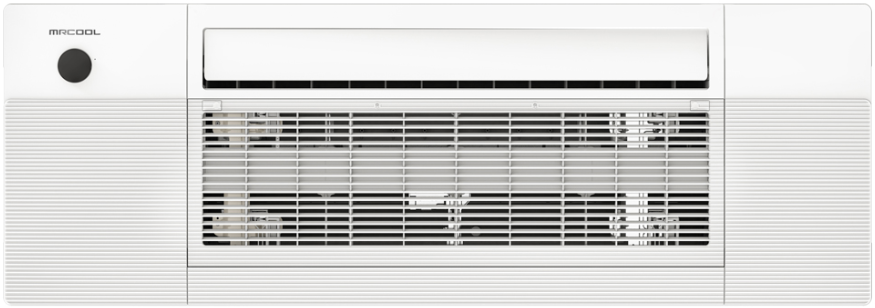

The 5th Generation MRCOOL® DIY® Series Outtasight® 12K BTU 230V One Way Ceiling Cassette is a sleek, efficient, and space saving climate solution for areas up to 550 sq. ft. Engineered for easy installation, it seamlessly integrates into multi zone systems, making it ideal for both new constructions and retrofit projects without requiring ductwork or wall space.

Designed for discreet placement, this cassette mounts flush between 16 inch ceiling joists, including pre manufactured I joists, providing a clean, modern appearance while maximizing room layout flexibility. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, which comes pre charged with R 454B refrigerant, a more environmentally friendly refrigerant, eliminating the need for vacuuming and reducing installation time.

With advanced filtration technology, this unit enhances indoor air quality, while the Elevation function lowers the filter panel for easy maintenance and cleaning. It operates quietly, ensuring a comfortable and peaceful environment in any room.

The cassette is fully controllable through a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant, giving you ultimate convenience and customization. Backed by a 7 year compressor warranty and 5 year parts warranty, and eligibility for the MRCOOL® Care Program, this system offers long term dependability and year round comfort.

Find the Brochure HERE

────────────────────────────────────────────

Key Specs

Voltage: 208-230V
Phase: 1
Cycle: 60Hz
Max Fuse Breaker: 15A
Min Circuit Ampacity: 3A
Mount Type: Ceiling
Color: White
Rated Load: 1
Max Coverage Area: 550
Refrigerant Type: R-454B
Decibel Rating: 37 dBA
Decibel Rating (Low): 24 dBA
Decibel Rating (High): 41 dBA
Air Flow Direction: 1-way
Liquid Line Size: 1/4 in
Suction Line Size: 3/8 in
Blower Motor RPM: 1075 / 982 / 797
Filter Type: Reusable
Fan Only Option: Yes
Quiet Mode: Yes
Sleep Mode: Yes
Auto Cool: Yes
WiFi Compatibility: Yes
App Compatibility: Yes
Works with iOS: Yes
Works with Android: Yes
Remote Control Included: Yes
Base Warranty: 5-Year Part / 7-Year Compressor
Base Parts Warranty: 5 Years
Base Compressor Warranty: 7 Years
Contains Compressed Gas: Yes
Proposition 65 Warning: Yes
Restricted States: GU;PR;VI
Net Depth: 13.19 in
Net Height: 8.98 in
Net Width: 50.31 in
Net Weight: 45 lbs
Gross Depth: 22.48 in
Gross Height: 22.64 in
Gross Width: 57.6 in
Gross Weight: 88 lbs

────────────────────────────────────────────

Compatibility

5th Gen Multi-Zone Condensers

5th Gen E-Star Condensers

5th Gen R-454B DIY Line Set 1/4" - 3/8"

Line Guards

MRCOOL Mini-Stat

MMCK01 Cool Care Program Kit

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
