DIY® Series 5th Gen OuttaSight® 18K BTU 230V – MRCOOL

DIYCASSETTE18HP-230D25-O

Description

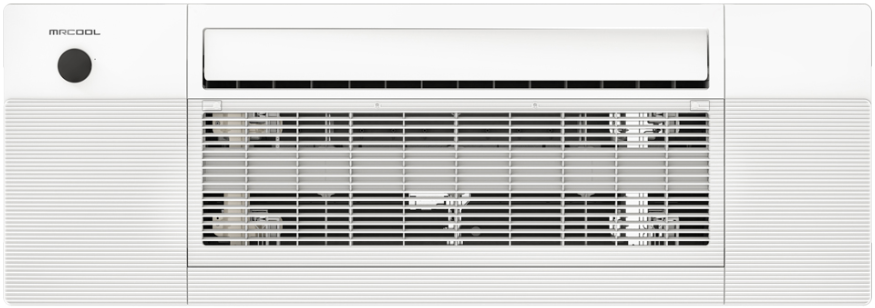

The 5th Generation MRCOOL® DIY® Series Outtasight® 18K BTU 230V One Way Ceiling Cassette provides efficient and powerful climate control for areas up to 800 sq. ft. Designed for effortless installation, it eliminates the need for specialized tools, offering a cost effective and straightforward setup.

Ideal for both multi zone and single zone applications, this unit fits seamlessly between 16 inch ceiling joists, including pre manufactured I joists, ensuring a flush, modern appearance. Unlike conventional ceiling cassettes that require extensive ductwork or valuable wall space, this system provides flexible installation, making it perfect for both new construction and retrofit projects.

It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, pre charged with R 454B refrigerant, an eco friendly refrigerant, eliminating the need for vacuuming and simplifying the installation process. Advanced filtration improves indoor air quality, while the Elevation function allows the filter panel to lower for easy maintenance and cleaning.

With whisper quiet operation and multiple control options including a wireless remote, SmartHVAC app, and compatibility with Amazon Alexa and Google Assistant, this system ensures customized comfort. Supported by a 7 year compressor warranty and 5 year parts warranty, and eligibility for the MRCOOL® Care Program, the MRCOOL® Outtasight® Ceiling Cassette offers reliable performance and year round comfort.

Fine the Brochure HERE

─────────────────────────────────────────────────────────────

Key Specs

Cooling Capacity: 18800 BTU
Heating Capacity: 22700 BTU
Voltage: 208-230V
Phase: 1
Cycle: 60Hz
Max Fuse Breaker: 15A
Min Circuit Ampacity: 3A
Mount Type: Ceiling
Color: White
Rated Load: 1.2
Max Coverage Area: 800
Refrigerant Type: R-454B
Decibel Rating: 41.5 dBA
Decibel Rating (Low): 26 dBA
Decibel Rating (High): 44 dBA
Air Flow Direction: 1-way
Liquid Line Size: 1/4 in
Suction Line Size: 1/2 in
Blower Motor RPM: 1344 / 1184 / 1024
Filter Type: Reusable
Fan Only Option: Yes
Quiet Mode: Yes
Sleep Mode: Yes
Auto Cool: Yes
WiFi Compatibility: Yes
App Compatibility: Yes
Works with iOS: Yes
Works with Android: Yes
Remote Control Included: Yes
Base Warranty: 5-Year Part / 7-Year Compressor
Base Parts Warranty: 5 Years
Base Compressor Warranty: 7 Years
Contains Compressed Gas: Yes
Proposition 65 Warning: Yes
Restricted States: GU;PR;VI
Net Depth: 13.19 in
Net Height: 8.98 in
Net Width: 50.31 in
Net Weight: 45 lbs
Gross Depth: 22.48 in
Gross Height: 22.64 in
Gross Width: 57.6 in
Gross Weight: 88 lbs

─────────────────────────────────────────────────────────────

Compatibility

5th Gen Multi-Zone Condensers

5th Gen E-Star Condensers

5th Gen R-454B DIY Line Set 1/4" - 1/2"

Line Guards

MRCOOL Mini-Stat

MMCK01 Cool Care Program Kit

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────
