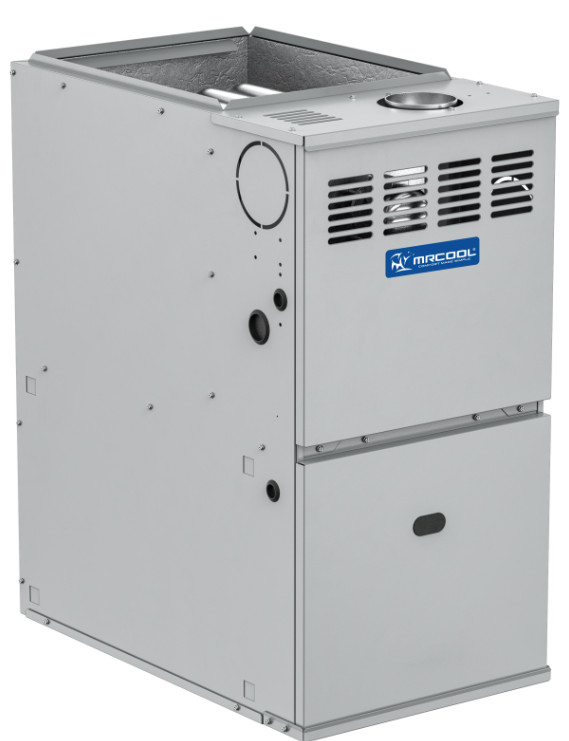

VersaPro 40K BTU 80% AFUE R-454B Gas Furnace – Multi-Position

Introducing the MRCOOL® VersaPro® 40K BTU 80% AFUE Gas Furnace, designed to keep your home warm and comfortable throughout the winter. With an 80% AFUE rating, this high-efficiency furnace ensures that most of the fuel consumed is converted into heat, providing cost-effective and reliable warmth while helping to reduce energy expenses.

Built for durability and performance, the VersaPro® features a powerful ECM blower motor, which enhances airflow efficiency, allows for easy speed adjustments, and contributes to lower utility costs. Its compact design ensures flexible installation, making it an ideal choice for homes with limited space.

Whether for upflow, downflow, or horizontal applications, this furnace offers multi-position installation for maximum adaptability. It also features left or right gas and electric service connections, and with an optional LP conversion kit, it can easily switch from natural gas to propane. This furnace is compatible with a wide range of 24V thermostats, allowing for seamless control.

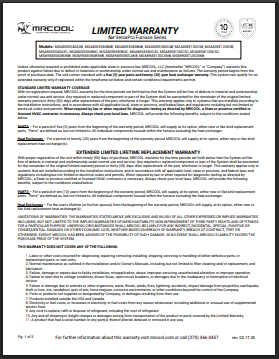

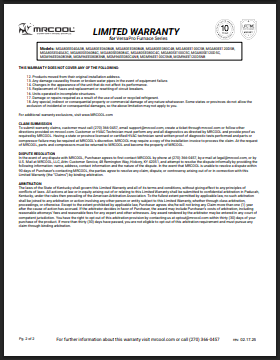

For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty when registered within 90 days of installation. Even without registration, it includes a 5-year parts warranty and a 20-year heat exchanger warranty, ensuring long-term reliability and home comfort.

• Works With: R-410A & R-454B Refrigerants

• Filter Size:

  • Side Return: 16x25x1

  • Bottom Return: varies on furnace casing width 14x25, 16x25, 20x25, 24x25

• Durable Build & Finish

• Multi-Position Application

• Two-Stage DC Motor

• Quiet Operation

• Superior Performance

• Optional LP Kit

• AFUE: 80

• CFM: 1150

• Fuel Type: Natural/Propane Gas

• Voltage (V): 115

• Stage: Single

• Max Fuse Breaker (A): 15

• Min Circuit Ampacity (A): 8

• Full Load: 8A

• Number of Speeds: 5

• Number of Burners: 3

• Gas Connection Size: 3/4 in

• Blower Motor Type: ECM

• Blower Motor HP: 1/2

• Blower Motor Speeds: 5

• Blower Motor RPM: 1050

• Heat Exchanger Type: Aluminized Tubular Steel

• Ignition Type: Hot Surface

• LP Kit Included: Yes

• LP Kit Available: Yes

• Registered Parts Warranty: 10 Years

• Base Parts Warranty: 5 Years

• Registered Heat Exchanger Warranty: Lifetime*

• Base Heat Exchanger Warranty: 20 Years

• Net Depth (in): 28.5

• Net Height (in): 33.75

• Net Width (in): 14.5

• Net Weight (lbs): 108

• Gross Depth (in): 31.02

• Gross Height (in): 41

• Gross Width (in): 17

• Gross Weight (lbs): 132
