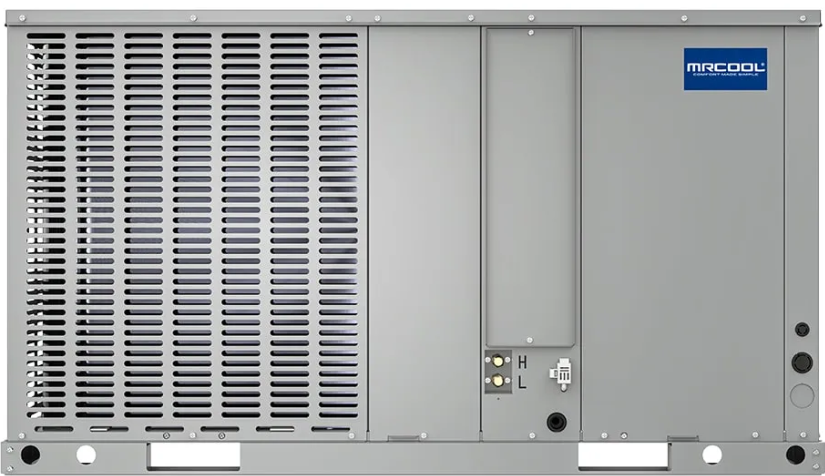

VersaPro 2.5 Ton Packaged Heat Pump – R-454B – Horizontal

The MRCOOL® VersaPro® Series 30K Package Heat Pump is designed for year-round performance, delivering both powerful heating and cooling in a single, compact unit. Perfect for homeowners seeking efficiency and durability, it provides dependable comfort through hot summers and cold winters.

With a 13.4 SEER2 rating, the VersaPro® 30K helps reduce household energy usage, lowering monthly utility costs without sacrificing performance. It uses R-454B refrigerant, a next-generation option with a much lower global warming potential than traditional refrigerants, allowing for eco-conscious upgrades while maintaining reliable output.

Durability is built in with a power-painted galvanized steel cabinet that resists harsh weather, rust, and wear. The horizontal discharge design ensures quiet operation, ideal for residential properties where space and noise control matter. Inside, aluminum tubing and fin coils provide excellent heat transfer and superior corrosion resistance compared to copper, minimizing maintenance and extending service life.

A high-efficiency full series compressor paired with an ECM blower motor delivers precise airflow control, improved temperature regulation, and reduced energy use. Built-in safety features protect against pressure extremes and coil temperature fluctuations.

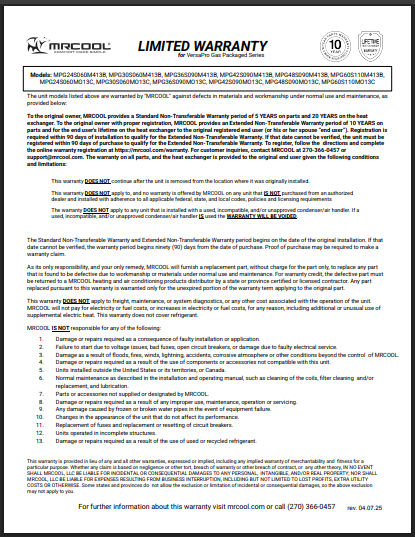

When registered, the unit is backed by a 10-year limited parts warranty and a 10-year compressor warranty, making the MRCOOL® VersaPro® 30K Package Heat Pump a reliable, efficient, and environmentally responsible investment—providing comfort, energy savings, and peace of mind season after season.

• SEER2: 13.4

• EER2: 11

• HSPF2-4: 6.7

• CFM: 1050

• Tonnage: 2.5

• Voltage (V): 208/230

• Phase: 1

• Cycle: 60

• Max Fuse Breaker (A): 30

• Min Circuit Ampacity (A): 24.4

• Color: Grey

• Rated Load: 15.5

• Full Load: 55

• Refrigerant Type: R-454B

• Decibel Rating (dBA): 81

• Inverter: No

• Drain Connection Size: 3/4

• Control Type: 24V Thermostat

• Compressor Motor Type: Rotary

• Condenser Fan Motor Type: ECM

• Blower Motor Type: ECM

• Metering Device: Piston

• Auxiliary Heater Included: No

• Auxiliary Heater Available: Yes

• Auxiliary Heater Sizes: 5 KW / 7.5 KW / 10 KW / 15 KW

• Registered Warranty: 10 Year Parts, 10 Year Compressor

• Base Warranty: 5 Year Parts, 5 Year Compressor

• Registered Parts Warranty: 10 Year Parts

• Base Parts Warranty: 5 Year Parts

• Registered Compressor Warranty: 10 Year Compressor

• Base Compressor Warranty: 5 Year Compressor

• Net Depth (in): 52

• Net Height (in): 24.81

• Net Width (in): 37.75

• Net Weight (lbs): 326

• Gross Depth (in): 52.76

• Gross Height (in): 25.81

• Gross Width (in): 38

• Gross Weight (lbs): 340

─────────────────────────────────────────────────────────────

Compatibility

5 kw Heat Kit for VersaPro Package Heat Pump

7 kw Heat Kit for VersaPro Package Heat Pump

10 kw Heat Kit for VersaPro Package Heat Pump

15 kw Heat Kit for VersaPro Package Heat Pump

MST04  Smart Thermostat

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────
