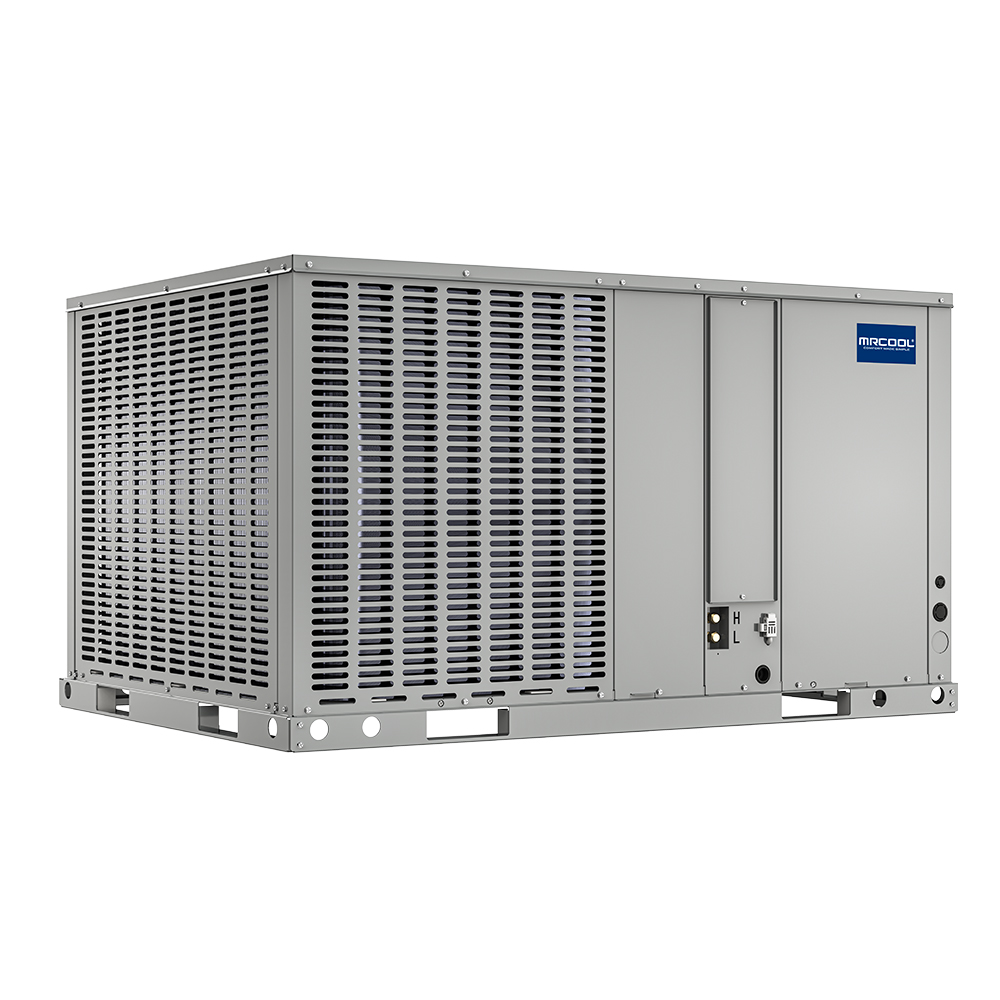

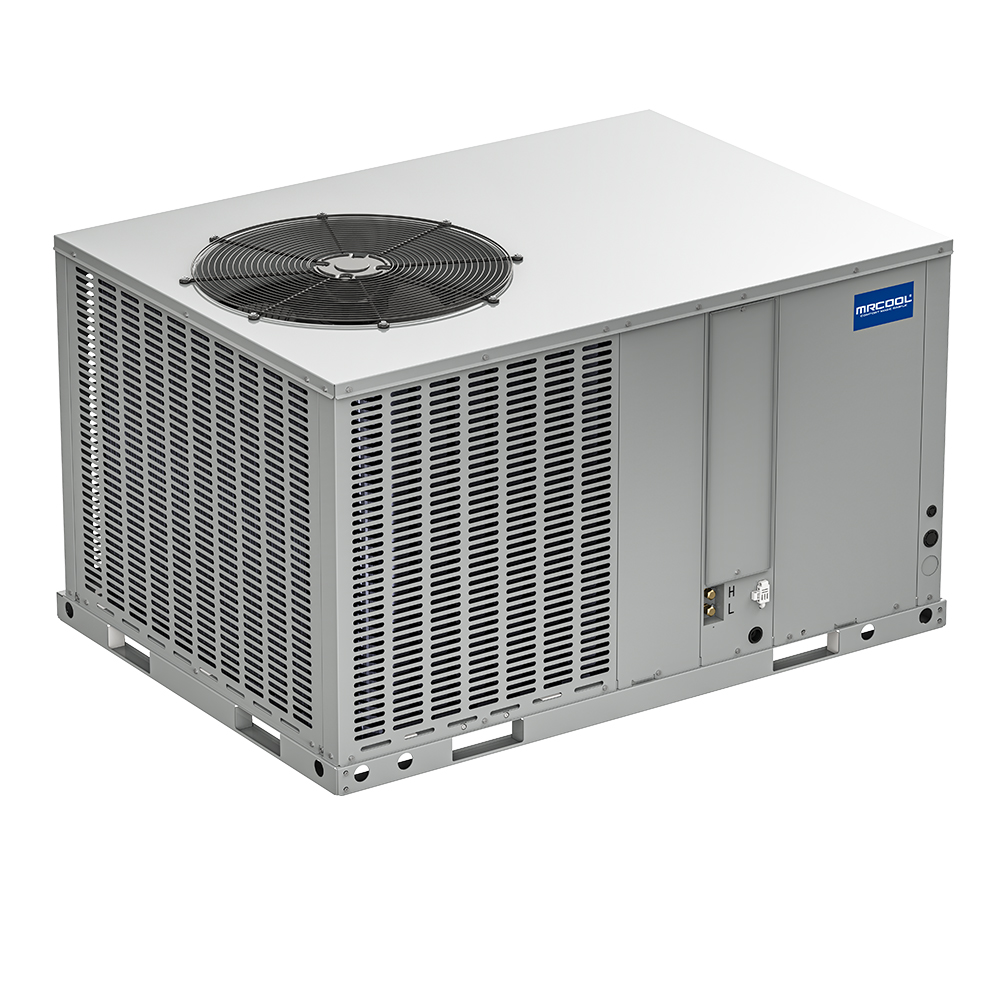

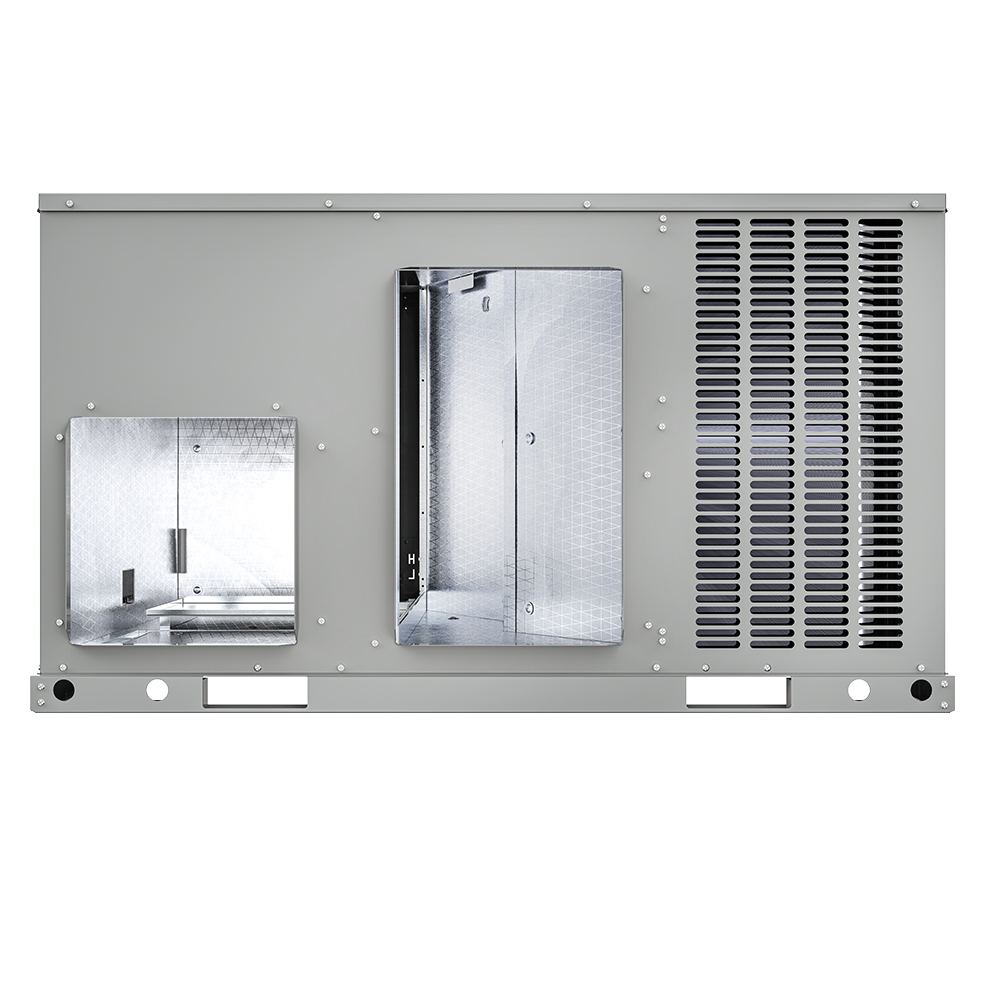

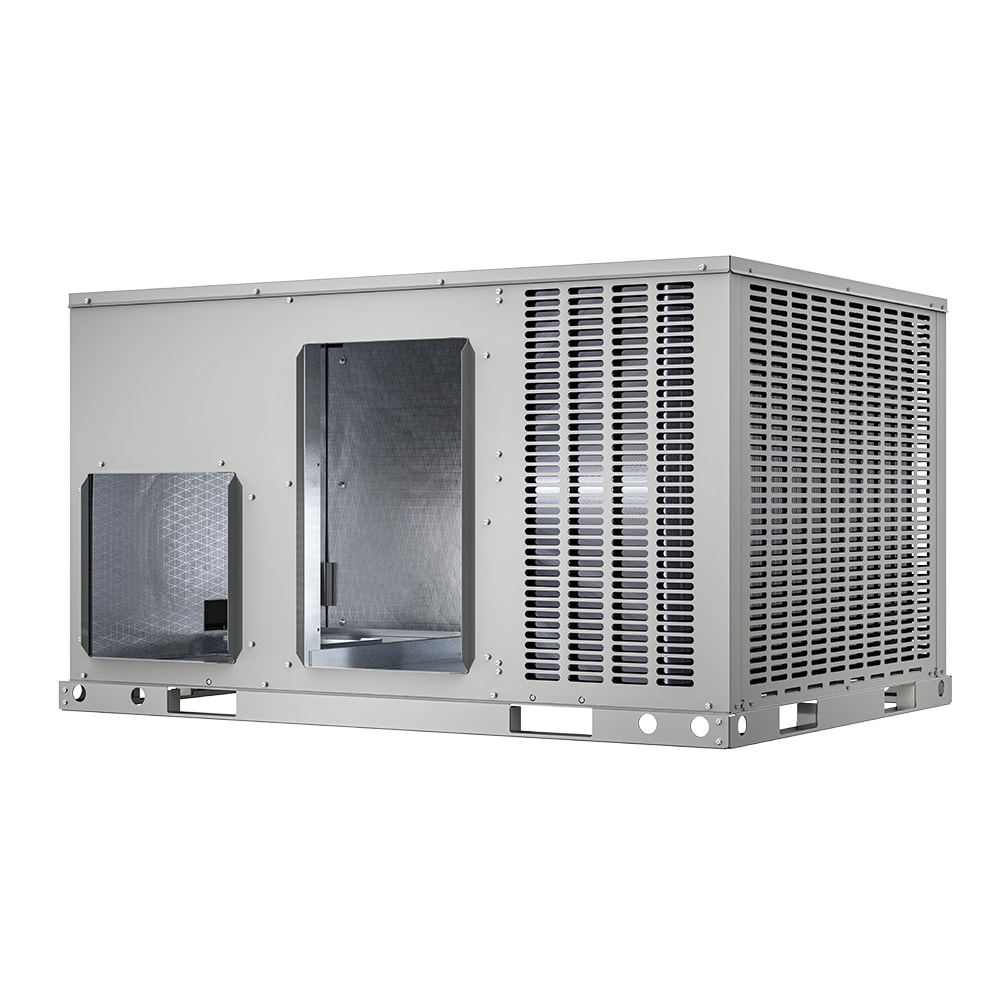

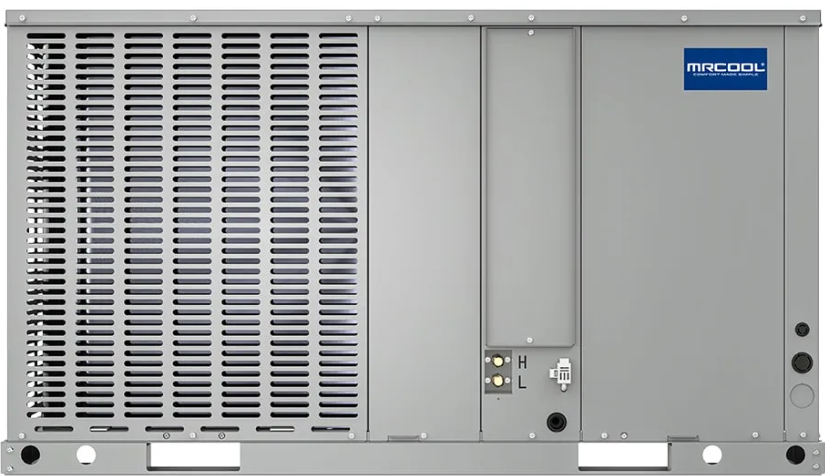

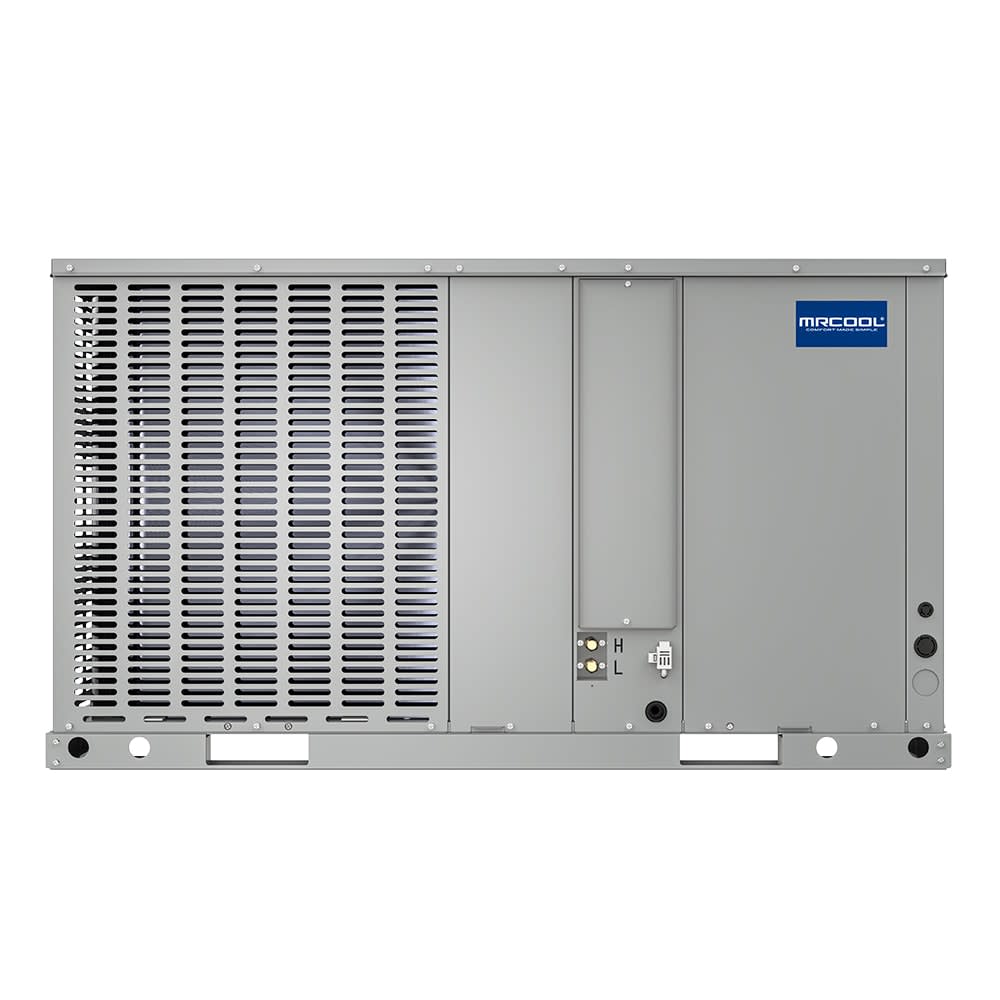

VersaPro 2 Ton Packaged Heat Pump – R-454B – Horizontal

The MRCOOL® VersaPro® Series 24K Package Heat Pump delivers dependable, year-round comfort in a compact, space-saving system. It provides high-performance cooling during summer and powerful heating in winter, offering an ideal balance of efficiency, durability, and convenience—perfect for homeowners seeking a cost-effective HVAC upgrade.

With a 13.4 SEER2 rating, the VersaPro® 24K reduces energy consumption, lowering utility bills and environmental impact. It uses R-454B refrigerant, a next-generation option with a much lower global warming potential than older refrigerants, supporting eco-conscious upgrades without sacrificing performance.

Durability is built in with a power-painted galvanized steel cabinet that protects against weather and wear. Its horizontal discharge design ensures quiet operation, making it ideal for residential areas where space and sound control matter. Inside, aluminum tubing and fin coils enhance heat transfer while offering superior corrosion resistance compared to copper, reducing maintenance and extending service life.

A high-efficiency full series compressor paired with a PSC blower motor provides precise airflow control, improved temperature regulation, and lower energy usage. Built-in safeguards protect the system from pressure extremes and coil temperature fluctuations.

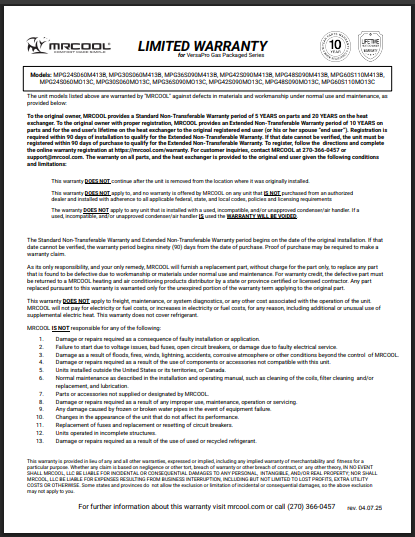

When registered, the unit comes with a 10-year limited parts warranty and a 10-year compressor warranty, making the MRCOOL® VersaPro® 24K Package Heat Pump a reliable, efficient, and environmentally responsible investment—delivering comfort, energy savings, and peace of mind season after season

• SEER2: 13.4

• EER2: 11

• HSPF2-4: 6.7

• CFM: 840

• Tonnage: 2

• Voltage (V): 230

• Max Fuse Breaker (A): 25

• Min Circuit Ampacity (A): 17.9

• Color: Grey

• Rated Load: 11.9

• Full Load: 55

• Refrigerant Type: R-454B

• Decibel Rating (dBA): 80

• Inverter: No

• Drain Connection Size: 3/4

• Control Type: 24V Thermostat

• Compressor Motor Type: Rotary

• Condenser Fan Motor Type: ECM

• Blower Motor Type: PSC

• Metering Device: Piston

• Auxiliary Heater Included: No

• Auxiliary Heater Available: Yes

• Auxiliary Heater Sizes: 5 KW / 7.5 KW / 10 KW

• Registered Warranty: 10 Year Parts, 10 Year Compressor

• Base Warranty: 5 Year Parts, 5 Year Compressor

• Registered Parts Warranty: 10 Year Parts

• Base Parts Warranty: 5 Year Parts

• Registered Compressor Warranty: 10 Year Compressor

• Base Compressor Warranty: 5 Year Compressor

• Net Depth (in): 52

• Net Height (in): 24.81

• Net Width (in): 37.75

• Net Weight (lbs): 326

• Gross Depth (in): 52.76

• Gross Height (in): 25.81

• Gross Width (in): 38

• Gross Weight (lbs): 340

─────────────────────────────────────────────────────────────

Compatibility

5 kw Heat Kit for VersaPro Package Heat Pump

7 kw Heat Kit for VersaPro Package Heat Pump

10 kw Heat Kit for VersaPro Package Heat Pump

MST04  Smart Thermostat

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────
