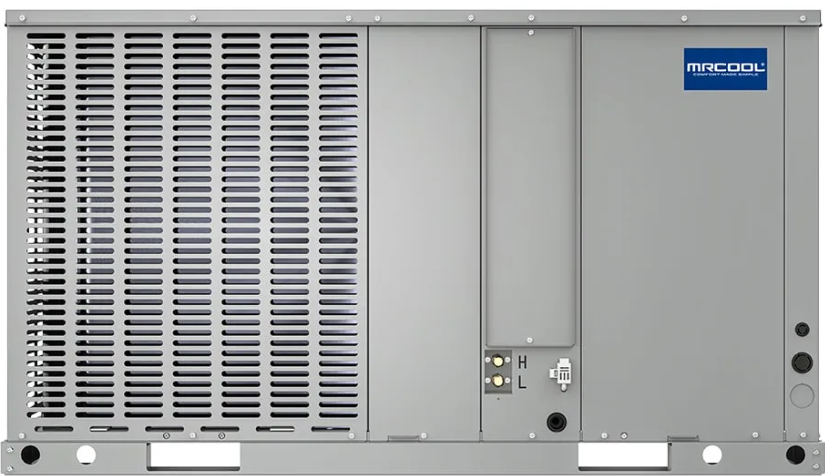

VersaPro 5 Ton Packaged Heat Pump – R-454B – Horizontal

The MRCOOL® VersaPro® Series 60K Package Heat Pump is built to deliver reliable, year-round comfort through a compact, all-in-one system. Built for maximum performance in all seasons, it’s an excellent choice for large homes or demanding applications requiring year-round reliability. With a 13.4 SEER2 efficiency rating, the VersaPro® 60K helps reduce energy consumption, lowering monthly utility costs while minimizing environmental impact. It uses R-454B refrigerant, a next-generation solution with a much lower global warming potential than older refrigerants, supporting eco-conscious upgrades without sacrificing performance.

Designed for durability, the system features a power-painted galvanized steel cabinet for protection against harsh weather and corrosion. Its horizontal discharge design ensures quiet operation, while aluminum tubing and fin coils improve heat transfer and resist corrosion better than copper—extending service life and reducing long-term maintenance needs. A high-efficiency full series compressor works alongside an ECM blower motor to deliver precise airflow, consistent comfort, and lower operating costs. Built-in safeguards protect the system from abnormal pressure or coil temperature conditions, ensuring your safety as well as that of your unit.

Backed by a 10-year limited parts warranty and 10-year compressor warranty following registration, the MRCOOL® VersaPro® 60K Package Heat Pump is a dependable investment in year-round comfort, energy savings, and peace of mind.

• Seer2 13.4

• Eer2 11

• Hspf2-4 6.7

• Cfm 1750

• Tonnage 5

• Voltage (V) 230

• Max fuse breaker (A) 60

• Min circuit ampacity (A) 48.6

• Color Grey

• Rated load 32

• Full load 125

• Refrigerant type R-454B

• Decibel rating (dba) 81

• Inverter No

• Min ambient cool (F) 32

• Min ambient heat (F) -0.4

• Drain connection size 3/4

• Control type 24V Thermostat

• Compressor motor type Scroll

• Condenser fan motor type ECM

• Blower motor type ECM

• Metering device Piston

• Auxiliary heater included No

• Auxiliary heater available Yes

• Auxiliary heater sizes 5 KW / 7.5 KW / 10 KW / 15 KW / 20 KW

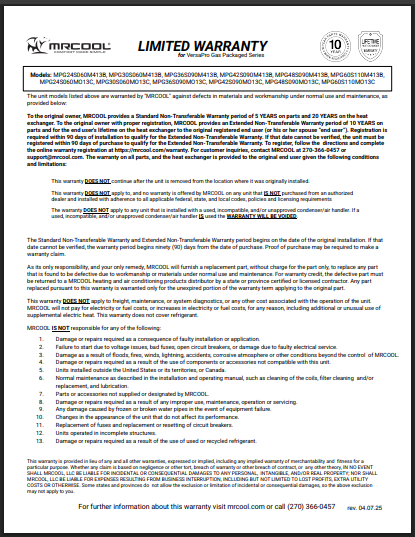

• Registered warranty 10 Year Parts, 10 Year Compressor

• Base warranty 5 Year Parts, 5 Year Compressor

• Registered parts warranty 10 Year Parts

• Base parts warranty 5 Year Parts

• Registered compressor warranty 10 Year Compressor

• Base compressor warranty 5 Year Compressor

• Net depth (in) 58.5

• Net height (in) 33.06

• Net width (in) 42.06

• Net weight (lbs) 450

• Gross depth (in) 59.25

• Gross height (in) 34.07

• Gross width (in) 42.24

• Gross weight (lbs) 467

─────────────────────────────────────────────────────────────

Compatibility

5 kw Heat Kit for VersaPro Package Heat Pump

7 kw Heat Kit for VersaPro Package Heat Pump

10 kw Heat Kit for VersaPro Package Heat Pump

15 kw Heat Kit for VersaPro Package Heat Pump

20 kw Heat Kit for VersaPro Package Heat Pump

MST04  Smart Thermostat

Disclaimer:

The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────
