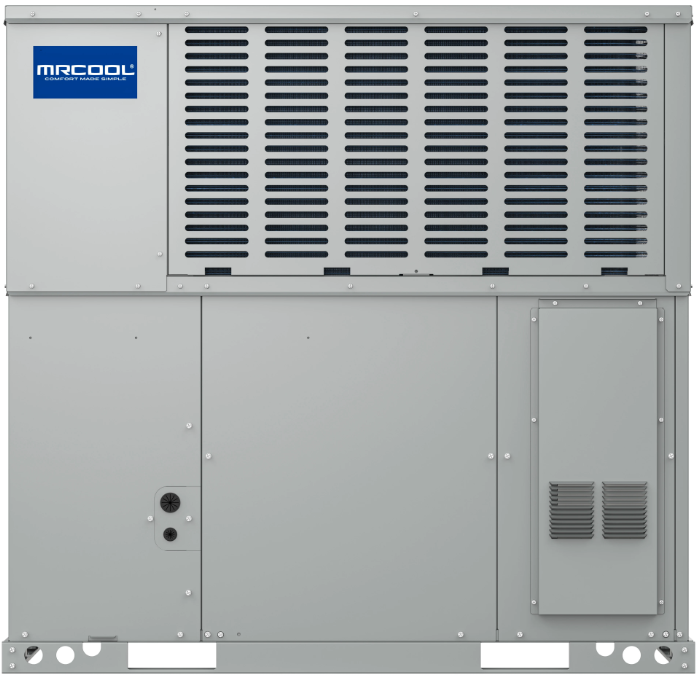

VersaPro 5 Ton 110K BTU Packaged A/C & Gas – R-454B – Downflow/Horizontal

The MRCOOL® VersaPro® Series 60K 110,000 BTU Gas Package Unit is a complete HVAC solution that delivers dependable heating and cooling in a single, efficient system. It combines a 13.4 SEER2 air conditioner with an 81% AFUE gas furnace, providing powerful cooling during summer months and consistent, reliable heat in winter. This hybrid design is ideal for homeowners looking for a long-term upgrade that balances performance, efficiency, and cost savings.

The unit uses R-454B refrigerant, an advanced low-GWP formula that significantly reduces environmental impact compared to older refrigerants, while still providing excellent year-round temperature control.

Durability is built in with a power-painted galvanized steel cabinet that protects against corrosion, harsh weather, and daily wear. The horizontal discharge design reduces operational noise, making it well-suited for residential installations. Inside, aluminum tubing with microchannel coils enhances heat transfer, resists corrosion, and reduces maintenance requirements.

A high-efficiency compressor paired with an ECM blower motor ensures smooth, quiet airflow and efficient temperature regulation. Built-in safety controls monitor pressure and coil temperature, maintaining reliable operation even under fluctuating conditions.

The VersaPro® 60K supports horizontal and downflow configurations and has a compact footprint for flexible installation in tight spaces. An LP conversion kit allows for easy propane use.

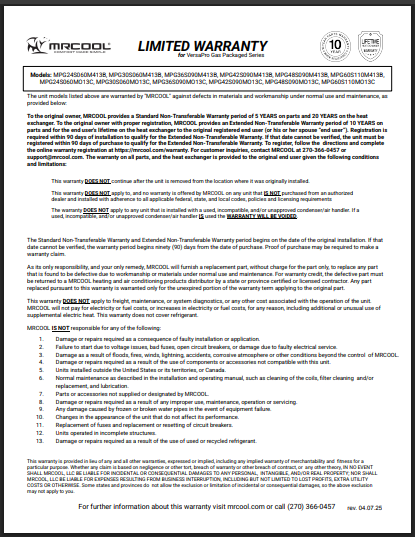

When registered, the unit comes with a 10-year limited parts warranty and a lifetime heat exchanger warranty, making the VersaPro® 60K 110,000 BTU a long-term investment in comfort, energy efficiency, and dependable performance.

• SEER2: 13.4

• EER2: 11

• AFUE: 81%

• CFM: 1800

• Tonnage: 5

• Fuel Type: Natural Gas / Propane

• Voltage (V): 230

• Stage: 1

• Max Fuse Breaker (A): 60

• Min Circuit Ampacity (A): 41.4

• Color: Grey

• Rated Load: 27

• Full Load: 125

• Refrigerant Type: R-454B

• Decibel Rating (dBA): 80

• Number of Burners: 7

• Inverter: No

• Min Ambient Cool (F): 64.4

• Drain Connection Size: 3/4

• Gas Connection Size: 1/2

• Control Type: 24V Thermostat

• Compressor Motor Type: Scroll

• Condenser Fan Motor Type: PSC

• Blower Motor Type: ECM

• Ignition Type: Direct Spark Ignition

• Metering Device: Piston

• LP Kit Included: Yes

• LP Kit Available: Yes

• Registered Warranty: 10 Year Parts, Lifetime Heat Exchanger

• Base Warranty: 5 Year Parts, 20 Year Heat Exchanger

• Registered Parts Warranty: 10 Year Parts

• Base Parts Warranty: 5 Year Parts

• Registered Heat Exchanger Warranty: Lifetime

• Base Heat Exchanger Warranty: 20 Year

• Net Depth (in): 49.75

• Net Height (in): 44.81

• Net Width (in): 51.56

• Net Weight (lbs): 562

• Gross Depth (in): 52.375

• Gross Height (in): 45.25

• Gross Width (in): 52.125

• Gross Weight (lbs): 584
