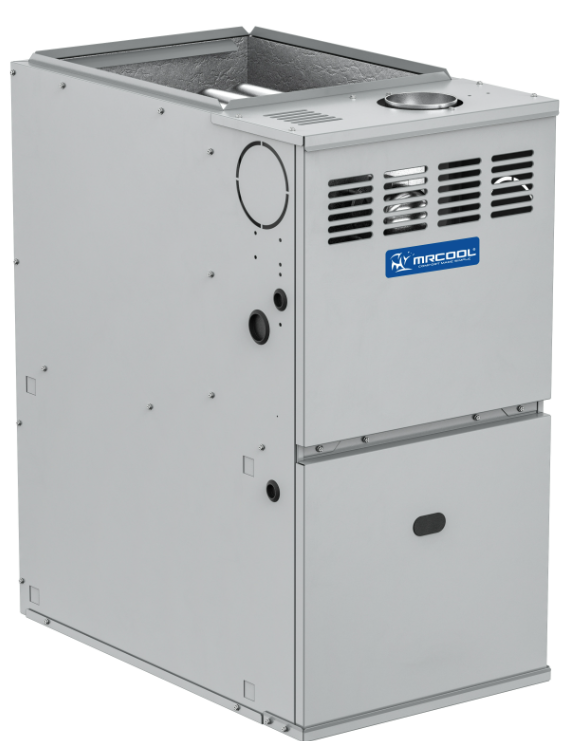

VersaPro 80K BTU 80% AFUE R-454B Gas Furnace – Multi-Position - C Cabinet

Presenting the MRCOOL® VersaPro® 80K BTU 80% AFUE Gas Furnace, engineered to provide consistent warmth and comfort throughout the winter months. With an 80% AFUE rating, this high-efficiency furnace transforms the majority of the fuel it uses into heat, offering an affordable and dependable heating solution while helping to lower energy bills. Designed for both performance and longevity, the VersaPro® features a robust ECM blower motor that boosts airflow efficiency, enables smooth speed adjustments, and aids in reducing energy costs. Its compact design allows for versatile installation, making it an excellent option for homes with space constraints. Whether you need upflow, downflow, or horizontal installation, this furnace adapts to multiple configurations. It also includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, switching from natural gas to propane is simple. Compatible with most 24V thermostats, this furnace ensures easy operation and precise temperature control. For added reassurance, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty if registered within 90 days of installation. If not registered, it still offers a 5-year parts warranty and a 20-year heat exchanger warranty, guaranteeing long-lasting comfort and reliability in your home.

• Works With: R-410A & R-454B Refrigerants

• Filter Size:

• Side Return: 16x25x1

• Bottom Return: varies on furnace casing width 14x25, 16x25, 20x25, 24x25

• Durable Build & Finish

• Multi-Position Application (Upflow / Downflow / Horizontal)

• Two-Stage DC Motor

• Quiet Operation

• Superior Performance

• 80% AFUE

• Energy Efficient

• Compatible with R-454B Refrigerant

• AFUE: 80

• CFM: 1300

• Fuel Type: Natural/Propane Gas

• Voltage (V): 115

• Stage: Single

• Max Fuse Breaker (A): 15

• Min Circuit Ampacity (A): 8

• Full Load: 8A

• Number of Speeds: 5

• Number of Burners: 5

• Gas Connection Size: 3/4 in

• Blower Motor Type: ECM

• Blower Motor HP: 1/2

• Blower Motor Speeds: 5

• Blower Motor RPM: 1050

• Heat Exchanger Type: Aluminized Tubular Steel

• Ignition Type: Hot Surface

• LP Kit Included: Yes

• LP Kit Available: Yes

• UL Listed: Yes

• ETL Listed: Yes

• Registered Parts Warranty: 10 Years

• Base Parts Warranty: 5 Years

• Registered Heat Exchanger Warranty: Lifetime*

• Base Heat Exchanger Warranty: 20 Years

• Net Dimensions (D x H x W in): 28.5 x 33.75 x 21

• Net Weight (lbs): 135

• Gross Dimensions (D x H x W in): 31.02 x 41 x 23.5

• Gross Weight (lbs): 163
