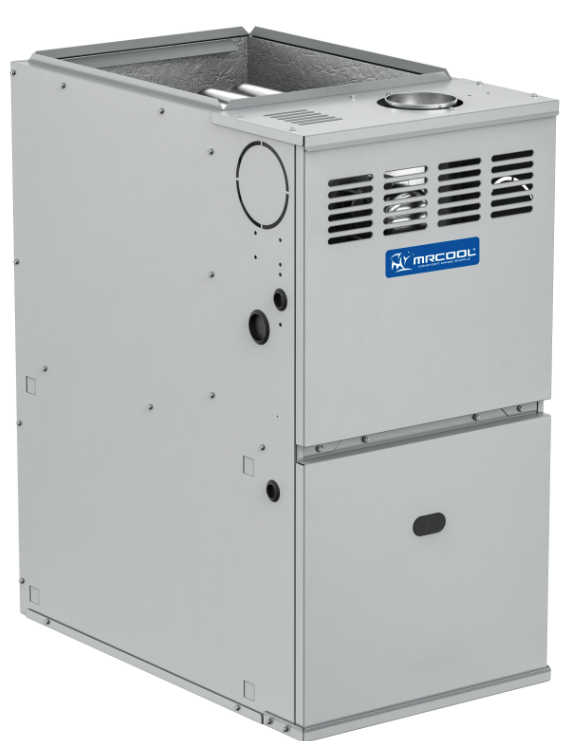

VersaPro 120K BTU 80% AFUE R-454B Gas Furnace – Multi-Position

For reliable heating all winter long, the MRCOOL® VersaPro® 120K BTU 80% AFUE Gas Furnace provides dependable warmth and comfort for your home. With an 80% AFUE rating, this energy-efficient furnace converts most of the fuel into usable heat, helping reduce energy bills while delivering consistent warmth. Crafted for durability and performance, the VersaPro® features a high-performance ECM blower motor that maximizes airflow efficiency, allows for adjustable speeds, and reduces utility costs. Its compact design enables flexible installation in homes with limited space, and its multi-position application supports upflow, downflow, or horizontal setups.

The furnace includes convenient left or right gas and electric service connections, and the optional LP conversion kit allows for easy switching from natural gas to propane. Compatible with most 24V thermostats, it ensures precise temperature control. With a BTU input of 120,000 and a BTU output of 96,000, the VersaPro® handles large heating demands efficiently. Other features include a single-stage operation, 7 burners, 5 blower speeds at 1050 RPM, and an aluminized tubular steel heat exchanger with hot surface ignition. For peace of mind, it comes with a 10-year registered parts warranty, lifetime registered heat exchanger warranty, and a 20-year base heat exchanger warranty, ensuring long-term performance and home comfort.

• Works With: R-410A & R-454B Refrigerants

• AFUE: 80%

• CFM: 1950

• Fuel Type: Natural/Propane Gas

• Voltage (V): 115

• Stage: Single

• Max Fuse Breaker (A): 15

• Min Circuit Ampacity (A): 14

• Full Load: 14A

• Number of Speeds: 5

• Number of Burners: 7

• Gas Connection Size: 3/4 in

• Blower Motor Type: ECM

• Blower Motor HP: 1

• Blower Motor Speeds: 5

• Blower Motor RPM: 1050

• Heat Exchanger Type: Aluminized tubular steel

• Ignition Type: Hot Surface

• LP Kit Included: Yes

• LP Kit Available: Yes

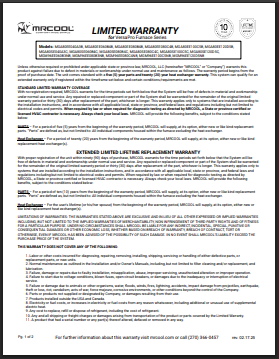

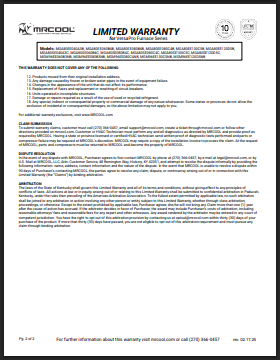

• Registered Parts Warranty: 10 Years

• Base Parts Warranty: 5 Years

• Registered Heat Exchanger Warranty: Lifetime*

• Base Heat Exchanger Warranty: 20 Years

• Net Depth (in): 28.5

• Net Height (in): 33.75

• Net Width (in): 24.5

• Net Weight (lbs): 152

• Gross Depth (in): 31.02

• Gross Height (in): 41

• Gross Width (in): 26.77

• Gross Weight (lbs): 190
