VersaPro 2.5 Ton 60K BTU Packaged A/C & Gas – R-454B – Downflow/Horizontal

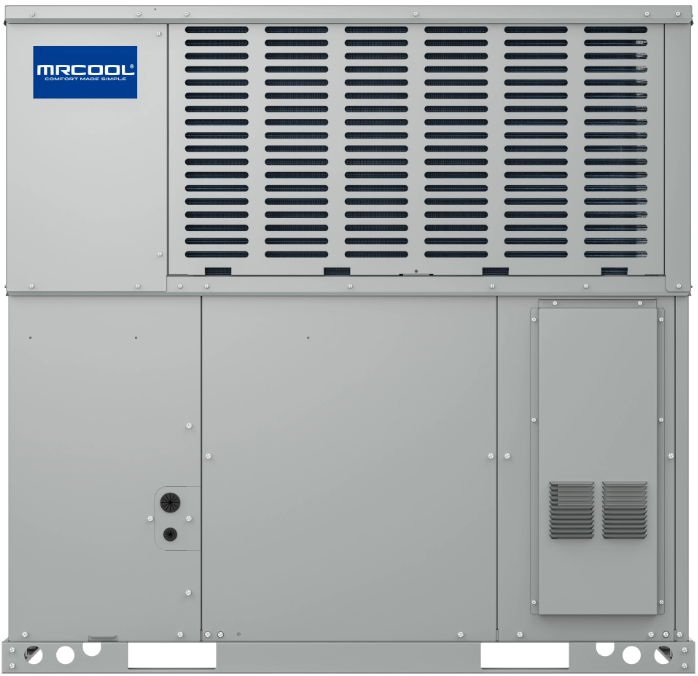

The MRCOOL® VersaPro® Series 30K 60,000 BTU Gas Package Unit is a powerful, all-in-one HVAC system designed to deliver reliable comfort throughout the entire year. It combines a 13.4 SEER2 air conditioner with an 81% AFUE gas furnace, giving homeowners efficient cooling in the summer and steady, dependable heating in the winter. This hybrid setup makes it a smart, cost-effective choice for anyone looking to improve comfort while keeping energy costs under control.

This model uses R-454B refrigerant, a next-generation formula with a much lower global warming potential compared to older refrigerants. It’s an environmentally responsible upgrade that still delivers strong performance.

Built for long-term durability, the VersaPro® features a power-painted galvanized steel cabinet that protects against rust, wear, and harsh outdoor conditions. The horizontal discharge design helps lower noise levels, and its compact footprint makes installation easier in tight or limited spaces. Inside, aluminum tubing with microchannel coils improves heat transfer and boosts corrosion resistance, which helps reduce maintenance needs and extend the life of the system.

The high-efficiency compressor works smoothly and quietly, while the ECM blower motor ensures consistent airflow, better temperature control, and improved energy efficiency. Safety controls are built in to monitor high and low pressure levels, coil temperature changes, and other operating conditions, helping maintain reliable performance even during extreme weather.

For installation flexibility, the VersaPro® 30K 60,000 BTU supports horizontal or downflow configurations and includes an LP conversion kit if propane use is needed.

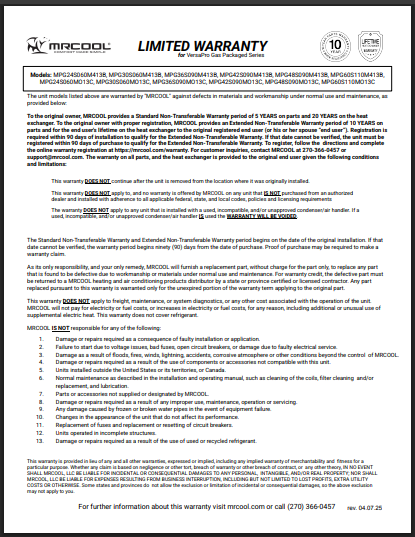

When registered, this model is backed by a 10-year limited parts warranty and lifetime heat exchanger warranty, offering long-term value along with dependable heating and cooling performance.

• SEER2: 13.4

• EER2: 11

• AFUE: 81%

• CFM: 930

• Tonnage: 2.5

• Cooling Capacity (BTU): 28,400

• Fuel Type: Natural Gas / Propane

• Voltage (V): 230

• Phase: 1

• Max Fuse Breaker (A): 30

• Min Circuit Ampacity (A): 21.5

• Color: Grey

• Rated Load: 13

• Full Load: 58

• Refrigerant Type: R-454B

• Decibel Rating (dBA): 79

• Number of Burners: 5

• Inverter: No

• Min Ambient Cool (F): 64.4

• Drain Connection Size: 3/4

• Gas Connection Size: 1/2

• Control Type: 24V Thermostat

• Compressor Motor Type: Rotary

• Condenser Fan Motor Type: PSC

• Blower Motor Type: ECM

• Blower Motor Speeds: 4

• Ignition Type: Direct Spark Ignition

• Metering Device: Piston

• LP Kit Included: Yes

• LP Kit Available: Yes

• Registered Warranty: 10 Year Parts, Lifetime Heat Exchanger

• Base Warranty: 5 Year Parts, 20 Year Heat Exchanger

• Registered Parts Warranty: 10 Year Parts

• Base Parts Warranty: 5 Year Parts

• Registered Heat Exchanger Warranty: Lifetime

• Base Heat Exchanger Warranty: 20 Year

• Net Depth (in): 46.44

• Net Height (in): 35.06

• Net Width (in): 50.69

• Net Weight (lbs): 432

• Gross Depth (in): 48.625

• Gross Height (in): 37

• Gross Width (in): 51.44

• Gross Weight (lbs): 458
