EZPRO-12-HP-WMAH-115D-O
DIY - SELF INSTALL
Description

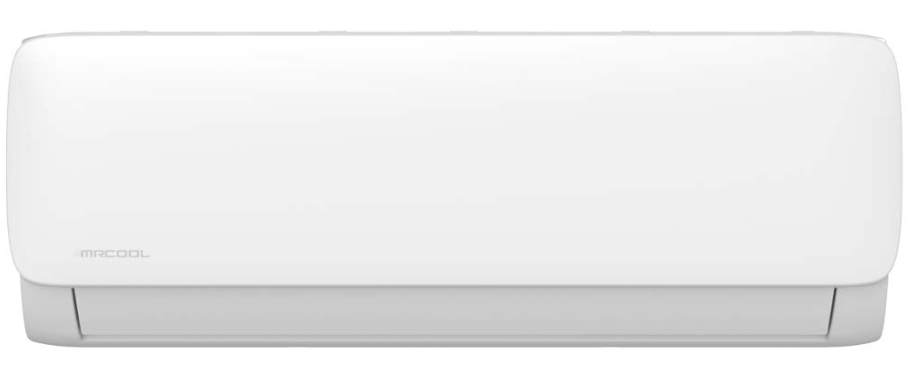

The MRCOOL® EASY PRO™ Mini-Split Air Handler offers an affordable, user-friendly heating and cooling solution for spaces up to 550 square feet, making it perfect for single rooms, small offices, or even server rooms. Designed with ease of use in mind, this DIY mini-split air handler is budget-friendly and the most affordable unit in MRCOOL’s lineup, allowing for quick installation without professional assistance.
The sleek and efficient EASY PRO™ air handler offers seamless, convenient operation. WiFi connectivity allows you to control temperature settings directly from your smartphone, while Active Clean Technology and easy-to-clean filters keep the air quality fresh and maintenance simple.
The unit features Auto Restart, automatically turning back on after a power outage, and the Sleep Function adjusts temperature settings overnight to enhance comfort while conserving energy. Operating at a Whisper Quiet level, the EASY PRO™ air handler maintains a peaceful environment, ideal for both living spaces and work settings.
With Low Ambient Cooling down to 5°F, it’s perfect for applications requiring year-round cooling, such as greenhouses or server rooms. Covered by a 2 year compressor warranty and a 1 year parts warranty, the MRCOOL EASY PRO™ air handler combines convenience, reliability, and affordability in a single, easy-to-install package. Experience comfort made easy, anytime and anywhere!
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs (Performance Specs Click Here)
- Tonnage: 1
- Cooling Capacity: 12000 BTU
- Heating Capacity: 12000 BTU
- Voltage: 115V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 15A
- Min Circuit Ampacity: 3A
- Mount Type: Wall
- Color: White
- Max Coverage Area: 550 sqft
- Decibel Rating: 35 dBA
- Decibel Rating Low: 17.5 dBA
- Decibel Rating High: 44.5 dBA
- Number of Speeds: 5
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Blower Motor Speeds: 3
- Blower Motor RPM: 850 / 750 / 450
- Filter Type: Reusable
- Fan Only Option: Yes
- Sleep Mode: Yes
- Auto Cool: Yes
- WiFi Compatibility: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- Remote Control Included: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Has Batteries: Yes
- Contains Electronics: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 7.87 in D × 11.61 in H × 31.57 in W
- Net Weight: 24.91 lbs
- Gross Dimensions: 17.95 in D × 14.17 in H × 36.02 in W
- Gross Weight: 35.71 lbs
─────────────────────────────────────────────────────────────
Compatibility
DIY 12k Easy Pro 5th Gen Condenser - 115v
5th Gen R-454B DIY Line Set 1/4" - 3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

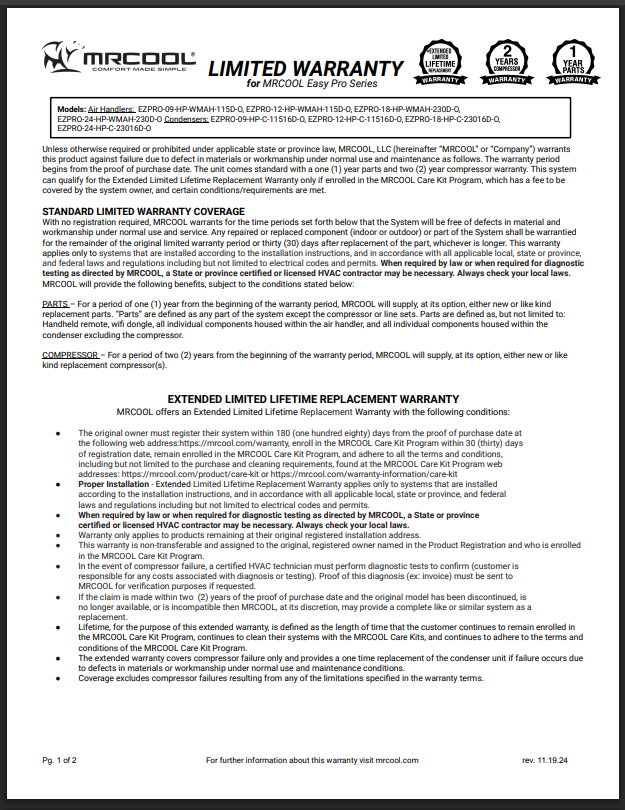

Warranty
The MRCOOL warranty offers comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────
Quick Links
- Warranty Registration
- Warranty Information
- Image 1
- Image 2
- Image 3
- Service Manual
- Rebate Center
- Install Manual
- Remote Manual
- Manual de servicio en español
- Manuel de la télécommande en français
- Document de garantie en français
- Accessory Manual
- Manuel des accessoires en français
─────────────────────────────────────────────────────────────
