DIY EasyPro 18k Condenser w/11.5' Install Kit- 230v

Sandra

June 09, 2026 17:36 Updated

EZPRO-18-HP-C-23011DE-O

DIY - SELF INSTALL

Description

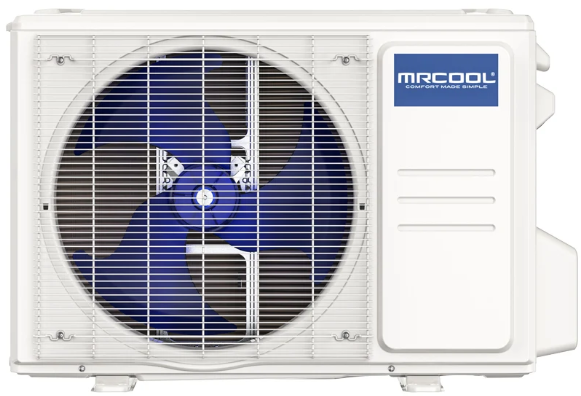

The MRCOOL® Easy Pro® 18K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser delivers powerful, energy-efficient comfort in a system designed specifically for homeowners. Built for true do-it-yourself installation, it requires no specialized tools, HVAC certifications, or prior experience, making it an excellent solution for garages, basements, attics, bonus rooms, and other spaces up to 800 square feet.

While installation is simple, performance is anything but basic. With a 20 SEER2 cooling efficiency and an 8.5 HSPF2-4 heating rating, the Easy Pro® 18K provides steady, reliable comfort throughout the year while using less energy than traditional systems.

Setup is made even easier with the included 11.5-foot Quick Connect® line set, which arrives factory pre-charged with R-454B refrigerant. This eliminates vacuum pumps, refrigerant handling, and specialized HVAC tools, reducing installation time and minimizing common setup errors.

Once installed, control is effortless. The included wireless remote and the MRCOOL® Comfort app allow you to adjust temperatures, create schedules, and monitor energy usage from virtually anywhere. Amazon Alexa and Google Assistant compatibility adds hands-free voice control for added convenience.

Comfort-enhancing features such as Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency, while the Gold Fin® condenser coating provides superior corrosion resistance for humid or coastal environments.

For added peace of mind, the Easy Pro® 18K is backed by a 5-year compressor warranty and a 3-year parts warranty, reflecting MRCOOL®’s confidence in the durability and quality of every system.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs

SEER2: 20
EER2: 9.8
HSPF2-4: 8.5
HSPF2-5: 6.6
TONNAGE: 1.5
COOLING CAPACITY (BTU): 17000
HEATING CAPACITY (BTU): 18000
VOLTAGE (V): 208/230
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 20
MIN CIRCUIT AMPACITY (A): 15
COLOR: White
ZONE CAPACITY: 1
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 34.92
DECIBEL RATING (DBA): 55
INVERTER: Yes
LINESET INCLUDED: Yes
LINE SET LENGTH: 11.5 ft.
MAX LINESET LENGTH (FT): 75 ft.
LIQUID LINE SIZE: 1/4
SUCTION LINE SIZE: 1/2
COMPRESSOR MOTOR TYPE: Rotary
CONDENSER FAN MOTOR TYPE: DC
CONDENSER FAN MOTOR RPM: 810/700/450
METERING DEVICE: EEV
UL LISTED: Yes
CSA LISTED: Yes
ETL LISTED: Yes
ENERGY STAR CERTIFIED: No
AHRI CERTIFIED: Yes
BASE WARRANTY: 3 Year Parts, 5 Year Compressor
BASE PARTS WARRANTY: 3 Year Parts
BASE COMPRESSOR WARRANTY: 5 Year Compressor
CONTAINS ELECTRONICS: Yes
CONTAINS CHEMICALS: Yes
CONTAINS COMPRESSED GAS: Yes
PROPOSITION 65 WARNING: Yes
NET DEPTH (IN): 11.93
NET HEIGHT (IN): 21.85
NET WIDTH (IN): 30.12
NET WEIGHT (LBS): 62.61
GROSS DEPTH (IN): 13.27
GROSS HEIGHT (IN): 24.02
GROSS WIDTH (IN): 34.92
GROSS WEIGHT (LBS): 82.23

─────────────────────────────────────────────────────────────

Compatibility

DIY EasyPro 18k Air Handler w/13' Com Cable - 230v

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only

MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU

Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

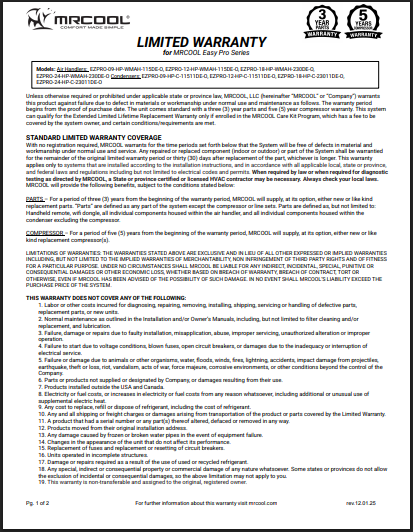

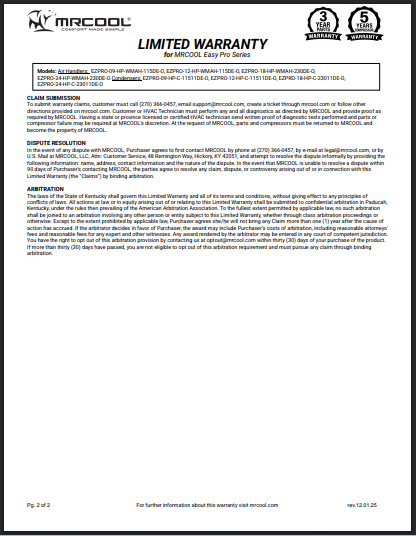

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.

─────────────────────────────────────────────────────────────
