DIY EasyPro 24k Condenser w/11.5' Install Kit- 230v

Sandra

June 09, 2026 18:05 Updated

EZPRO-24-HP-C-23011DE-O

DIY - SELF INSTALL

Description

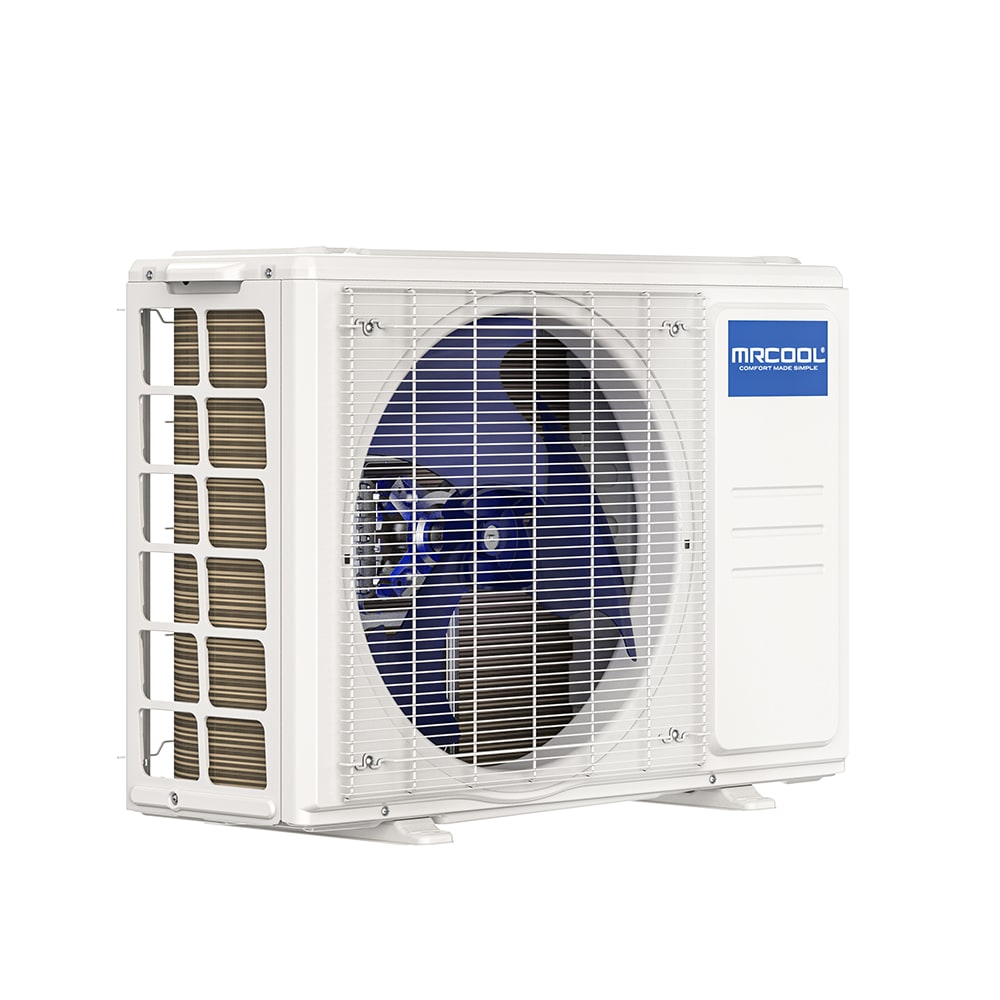

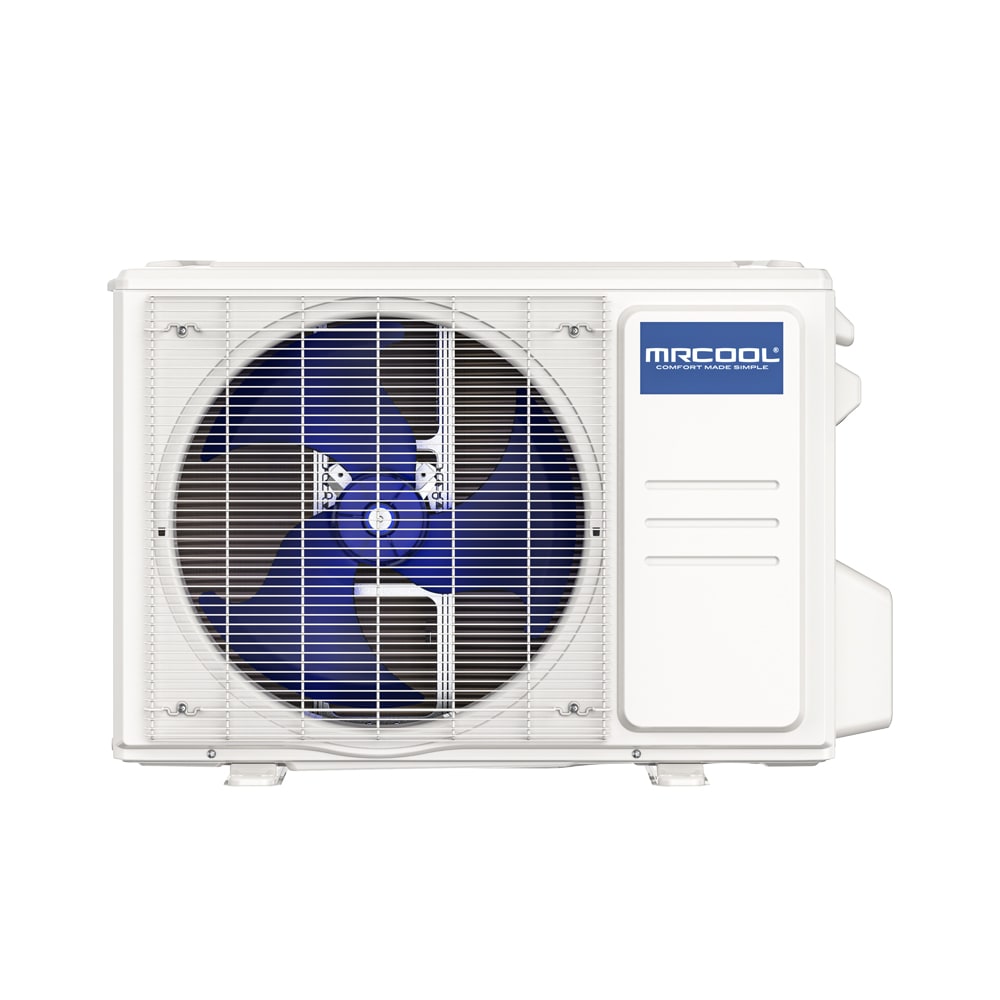

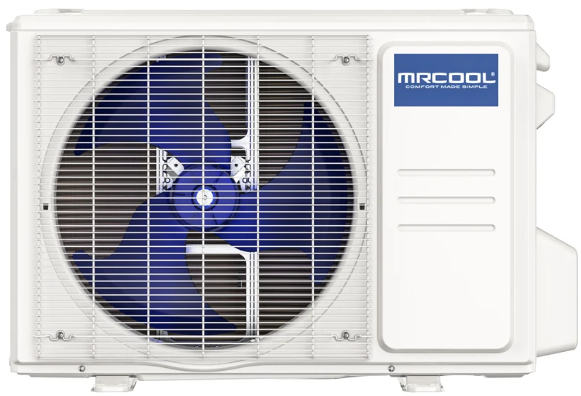

The MRCOOL® Easy Pro® 24K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser is designed to make high-performance home comfort simple and affordable for everyday homeowners. Built for true do-it-yourself installation, it requires no special tools or HVAC experience, making it an ideal solution for living rooms, open layouts, large basements, and bonus rooms up to 1,050 square feet.

Despite its easy installation, the Easy Pro® 24K delivers powerful, efficient performance. With an 18.9 SEER2 cooling rating and an 8.7 HSPF2-4 heating efficiency, it provides reliable year-round comfort while helping reduce energy use and lower monthly utility costs.

Installation is streamlined with the included 11.5-foot Quick Connect® line set, which arrives factory pre-charged with R-454B refrigerant. This eliminates vacuum pumps and refrigerant handling, making setup faster, cleaner, and far less intimidating for first-time installers.

Daily operation is just as convenient. The included wireless remote and the MRCOOL® Comfort app let you adjust temperatures, create schedules, and monitor energy use from virtually anywhere. Amazon Alexa and Google Assistant compatibility adds hands-free control for extra convenience.

Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically optimize comfort and efficiency, while a Gold Fin® condenser coating enhances durability in humid or coastal environments.

Backed by a 5-year compressor warranty and 3-year parts warranty, the MRCOOL® Easy Pro® 24K Condenser delivers dependable comfort you can trust.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs

SEER2: 18.9
EER2: 9.7
HSPF2-4: 8.7
HSPF2-5: 6.9
TONNAGE: 2
COOLING CAPACITY (BTU): 24000
HEATING CAPACITY (BTU): 25000
VOLTAGE (V): 208/230
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 20
MIN CIRCUIT AMPACITY (A): 19
COLOR: White
ZONE CAPACITY: 1
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 50.44
DECIBEL RATING (DBA): 61
INVERTER: Yes
LINESET INCLUDED: Yes
LINE SET LENGTH: 11.5 ft.
MAX LINESET LENGTH (FT): 75 ft.
LIQUID LINE SIZE: 3/8
SUCTION LINE SIZE: 5/8
COMPRESSOR MOTOR TYPE: Rotary
CONDENSER FAN MOTOR TYPE: DC
CONDENSER FAN MOTOR RPM: 830/700/550
METERING DEVICE: EEV
UL LISTED: Yes
CSA LISTED: Yes
ETL LISTED: Yes
ENERGY STAR CERTIFIED: No
AHRI CERTIFIED: Yes
BASE WARRANTY: 3 Year Parts, 5 Year Compressor
BASE PARTS WARRANTY: 3 Year Parts
BASE COMPRESSOR WARRANTY: 5 Year Compressor
CONTAINS ELECTRONICS: Yes
CONTAINS CHEMICALS: Yes
CONTAINS COMPRESSED GAS: Yes
PROPOSITION 65 WARNING: Yes
NET DEPTH (IN): 13.46
NET HEIGHT (IN): 26.5
NET WIDTH (IN): 35.04
NET WEIGHT (LBS): 95.9
GROSS DEPTH (IN): 15.67
GROSS HEIGHT (IN): 29.13
GROSS WIDTH (IN): 39.17
GROSS WEIGHT (LBS): 117.73

─────────────────────────────────────────────────────────────

Compatibility

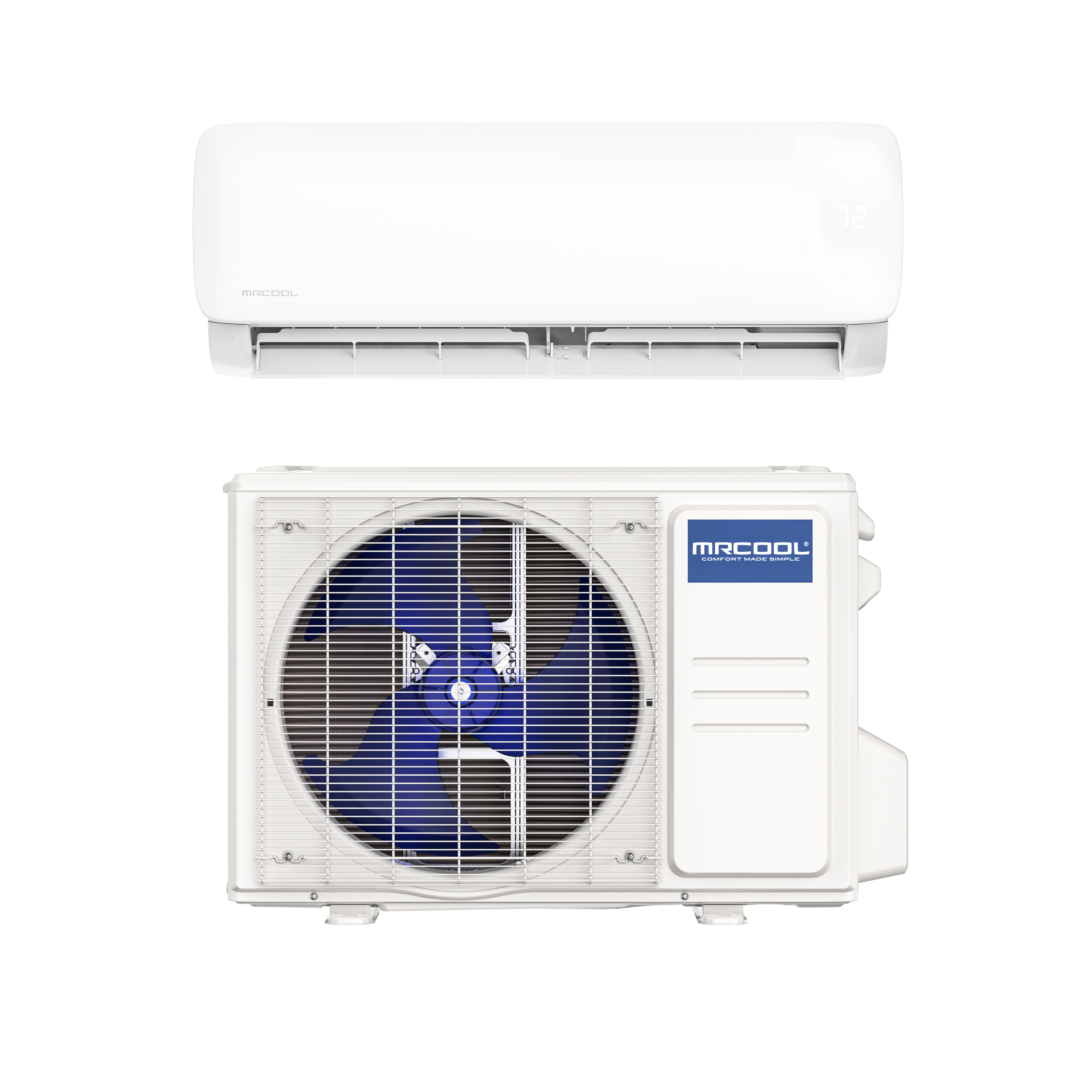

DIY EasyPro 24k Air Handler w/13' Com Cable - 230v

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only

MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU

Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

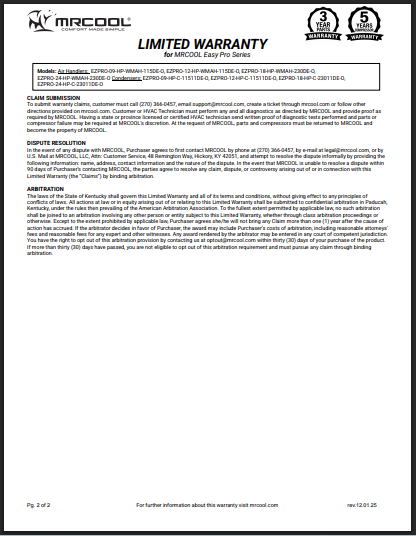

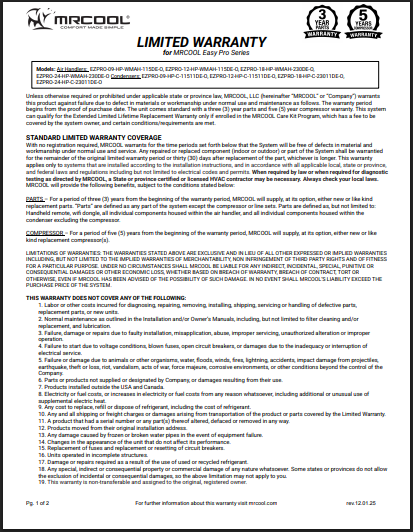

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.

─────────────────────────────────────────────────────────────
