Easy Pro 24k 5th Gen Condenser - 230v

Isabelle A

June 08, 2026 22:15 Updated

EZPRO-24-HP-C-23016D-O

Description

For the best comfort you’ve ever felt at a price that’s perfect, choose the MRCOOL® Easy Pro™ Series 24k BTU Mini-Split Heat Pump Condenser.

This unit will heat or cool a space that is up to 1050 square feet with efficient, effective comfort. On top of the money you’ll save in the long run, this unit has a do-it-yourself installation, so you’ll save money before you even turn the system on. This unit doesn’t require the services of an HVAC professional to install because it comes with a 16’ pre-charged Fast Connection® line set. The fittings easily link together, making the installation process quick, easy, and safe.

On top of immediate savings, the 18.9 SEER2 rating and 8.7 HSPF2-4 rating mean that this unit will save you money in the long run. Ultimate convenience and control is what the Easy Pro™ is all about. The unit’s ability to connect to Wi-Fi enables operation through your smart phone with just the touch of a button. If you are cooling a space all year long, the unit’s Low Ambient Cooling feature allows the system to cool even when it’s 5°F outside.

No matter what temperature you choose, though, your comfort will be whisper-quiet, as this system will only ever attain a volume level of 61 dB(A). Even if the power falters, this unit won’t, because the Auto Restart function will ensure your system will go right back to your previous settings once the power turns back on. You deserve total peace of mind, which is why you can register your system to enjoy its 2-year compressor warranty and a 1-year parts warranty.

For efficient, reliable comfort that’s easy on your wallet, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere!

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs

SEER2: 18.9
EER2: 9.7
HSPF2-4: 8.7
HSPF2-5: 6.9
Tonnage: 2
Cooling Capacity: 24000 BTU
Heating Capacity: 25000 BTU
Voltage: 208–230V
Phase: 1
Cycle: 60Hz
Max Fuse Breaker: 20A
Min Circuit Ampacity: 19A
Color: White
Zone Capacity: 1
Refrigerant Type: R-454B
Refrigerant Volume: 50.44 oz
Decibel Rating (High): 61 dBA
Inverter: DC
Min Ambient Cool: 5°F
Line Set Included: Yes (16 ft)
Max Line Set Length: 164 ft
Liquid Line Size: 3/8 in
Suction Line Size: 5/8 in
Compressor Motor Type: Rotary
Works with iOS: Yes
Works with Android: Yes
UL Listed: Yes
CSA Listed: Yes
ETL Listed: Yes
AHRI Certified: Yes
Base Parts Warranty: 1 Year
Base Compressor Warranty: 2 Years
Contains Chemicals: Yes
Contains Compressed Gas: Yes
Proposition 65 Warning: Yes
Net Dimensions: 13.46 in D × 26.5 in H × 35.04 in W
Net Weight: 95.9 lbs
Gross Dimensions: 15.67 in D × 29.13 in H × 39.17 in W
Gross Weight: 117.73 lbs

─────────────────────────────────────────────────────────────

Compatibility

DIY 24k Easy Pro 5th Gen Air Handler - 230v

5th Gen R-454 DIY Line Set 3/8" - 5/8"

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only

MB440A - MRCOOL Condenser Wall Mounting Kit - 24k & 36k BTU

Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

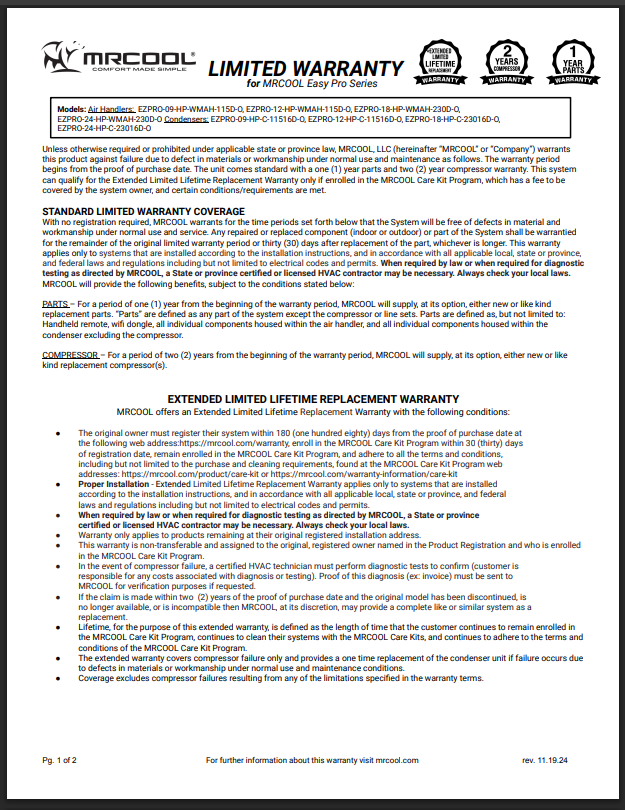

Warranty

The MRCOOL warranty offers comprehensive coverage for your unit.

─────────────────────────────────────────────────────────────
